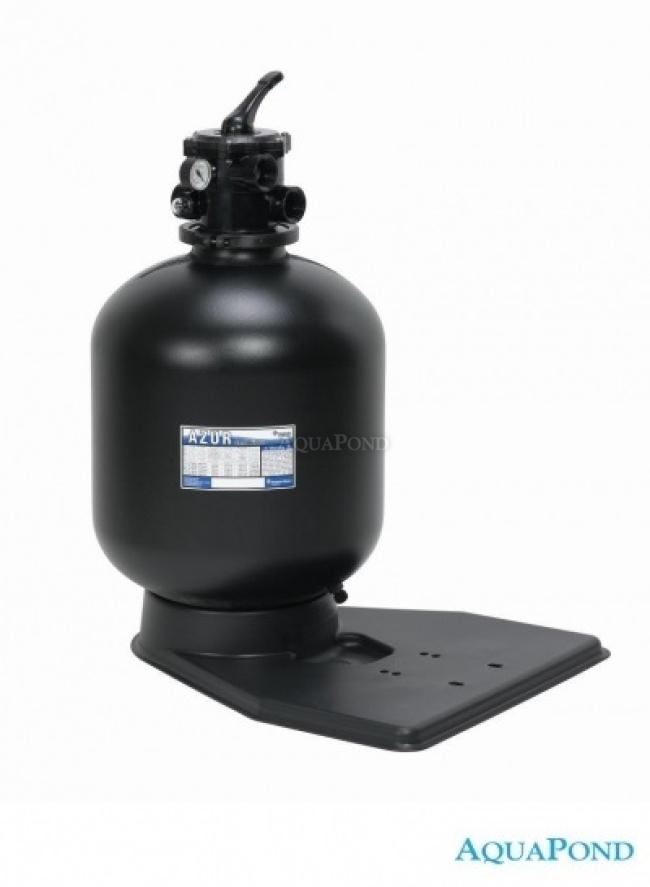

Filtration tank Azur 480 with six-way valve on a pallet

Filtration tank Azur 480 with six-way valve on a pallet

Filtration tank Azur 480 with six-way valve on a pallet

Description

The Azur filtration unit can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Read more
Product code: 51125109

  • Azur 480 filter tank with six-way valve on pallet

    Sand filters work on the natural principle of water filtration. Water passes through the layer of sand, which traps fine impurities. Over time, the sand naturally becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand-washing position, we change the direction of water flow and flush the trapped dirt out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.

    Complete AZUR KIT

    The AZUR sand filtration kit Ø 380, 480 and 560 mm can be assembled into several filtration kits. As standard, they are always fitted with a 6-way top valve with pressure gauge. As additional equipment, you can choose a base under the filter itself or a base pallet with space for installing the pump. For the kits, you can individually choose between FreeFlo, Micro Delfino, Preva, and Bettar pumps. The filtration can also be supplemented with connecting piping between the filter and the pump. The entire system is clearly illustrated in the tables for each individual filter.

    Package contents

    Package does not include

    • Connecting piping between the pump and the filtration system
    • Filter sand 0.6 – 1.2 mm / 42 kg (must be ordered separately)
    • Pump

    Technical parameters

    • Tank material: Polypropylene
    • Filling quantity: 75 kg
    • Tank diameter: 480 mm
    • Max. operating pressure: 2 bar
    • Flow rate: 9 m3 / h
    • Valve: 6-way top
    • For pools up to: 45 m3
    • Max. temperature: 35 ° C

    Complete AZUR KIT 480 sand filtration
