Azur 380 Filter Tank with 6-Way Valve on Base
Azur 380 Filter Tank with 6-Way Valve on Base
Description
AZUR filter tank with 6-way top valve, pressure gauge, and base. Read more
Product code: 51125206
-

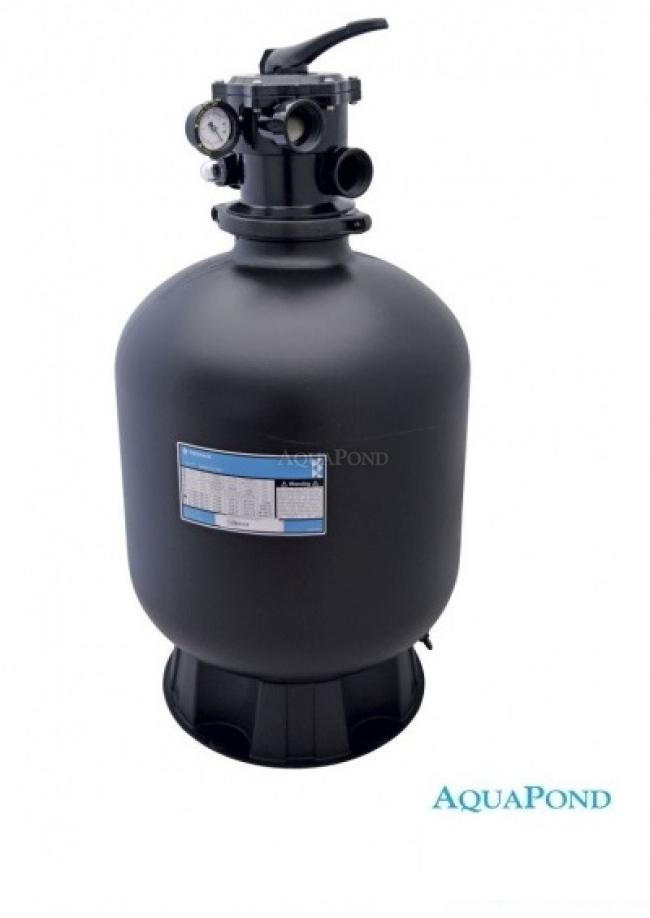

Azur 380 Filter Tank with 6-Way Valve on Base
The Azur filtration unit can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Water passes through a layer of sand, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the 6-way valve is used for. By turning the valve to the sand wash position, we reverse the direction of water flow and flush the trapped dirt into the waste line. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.
Package Contents
- Polypropylene filter tank
- 6-way top valve - PE272026 - TOP Valve - 6-way valve, for flange of AZUR filter tank
- Pressure gauge
- Installation and operating instructions
- AZUR base
Package Does Not Include
- Connecting pipe between the pump and the filtration system
- Filter sand 0.6 – 1.2 mm / 42 kg (must be ordered separately)
- Pump
Technical Parameters
- Tank material: Polypropylene
- Filling quantity: 42 kg
- Tank diameter: 380 mm
- Max. operating pressure: 2 bar
- Flow rate: 6 m3 / h
- Valve: 6-way top
Complete AZUR KIT 380 Sand Filtration
You can order spare parts for the filter tank here: Spare Parts - Azur 380 Filter Tank with 6-Way Valve on Base
-
