Filter tank MIDI 400, six-way valve, Czech description for six-way valve
 |
 |
 |
Filter tank MIDI 400, six-way valve, Czech description for six-way valve
Description
Filter tank MIDI with a 6-way side valve and pressure gauge. Read more
-
Filter Tank MIDI 400, Six-Way Valve, Czech Description for Six-Way Valve

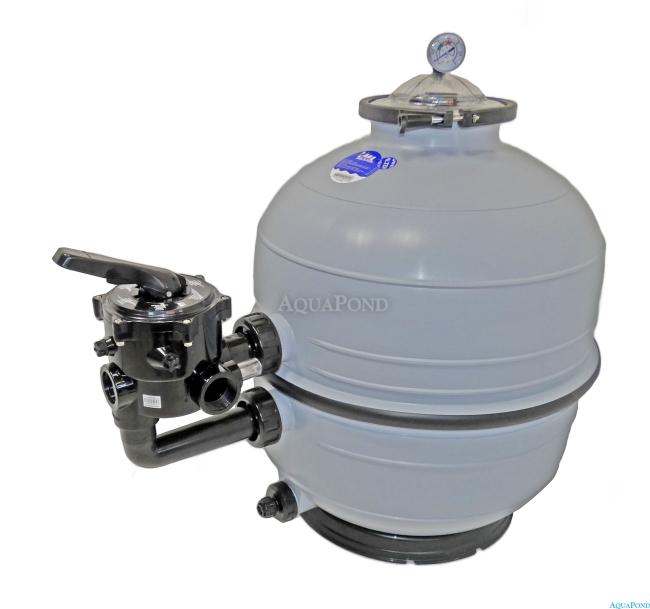

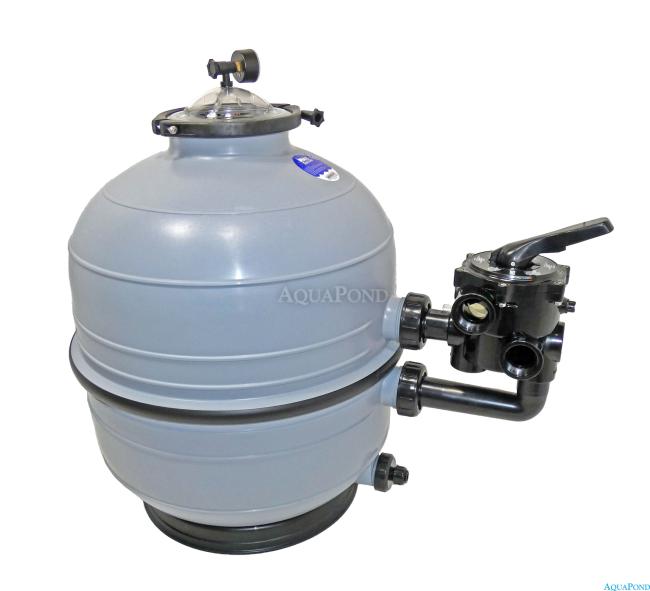

The MIDI 400 filter tank is made of injection-molded thermoplastic material and welded using the most advanced welding technology. It features a transparent top lid and is equipped with a pressure gauge; the six-way valve is located on the side of the tank. Sand filters work on the natural principle of water filtration. Water passes through the layer of sand, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand washing position, we change the direction of water flow and flush the accumulated dirt into the waste line. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.
Package Contents

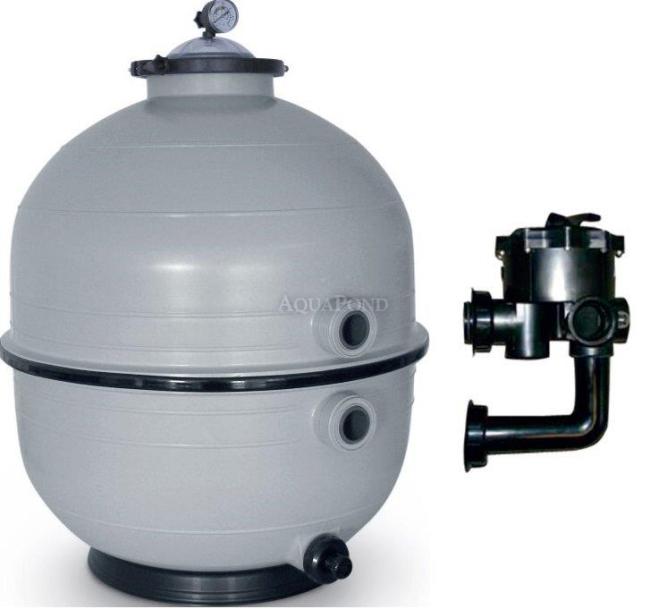

- MIDI 400 filter tank
- IPS6103 six-way valve - Side six-way valve for pressure tanks MIDI, Lisboa, Nilo, Bilbao and Cantabric - connection 1 1/2’’
- Czech description for the six-way valve
- Filter base plate

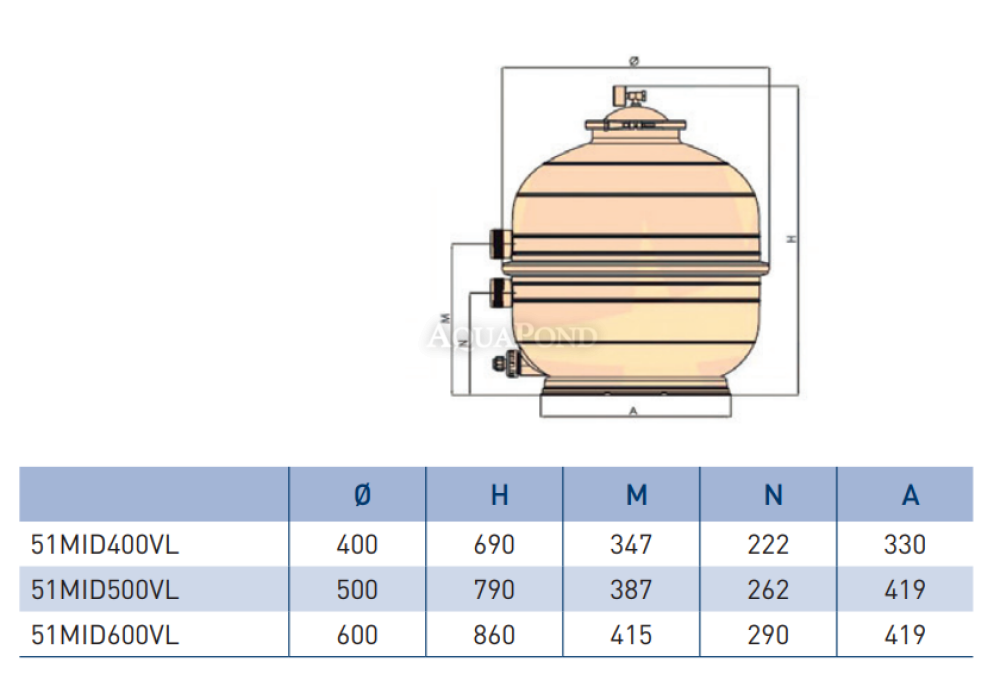

Technical Specifications
- Tank material: Polyethylene
- Tank diameter: 400 mm
- Filtration rate: 50 m3 / h / m2
- Max. working pressure: 1.4 / cm2
- Filling quantity: 60 kg
- Connection /int/: 1 1/2 "in
- Flow rate: 6 m3 / h
- Valve: six-way side
- Max. operating temperature: 35°C
List of Spare Parts
You can order spare parts for the filter tank here:
Spare Parts - Filter Tank MIDI 400, Six-Way Valve, Czech Description for Six-Way Valve
You can order spare parts for the filter tank here:
-
