Heat exchanger ZODIAC HEAT LINE Compact without circulation pump; Titanium 20 kW
|
 |
Heat exchanger ZODIAC HEAT LINE Compact without circulation pump; Titanium 20 kW
Description
Titanium heat exchanger with control panel Read more
-

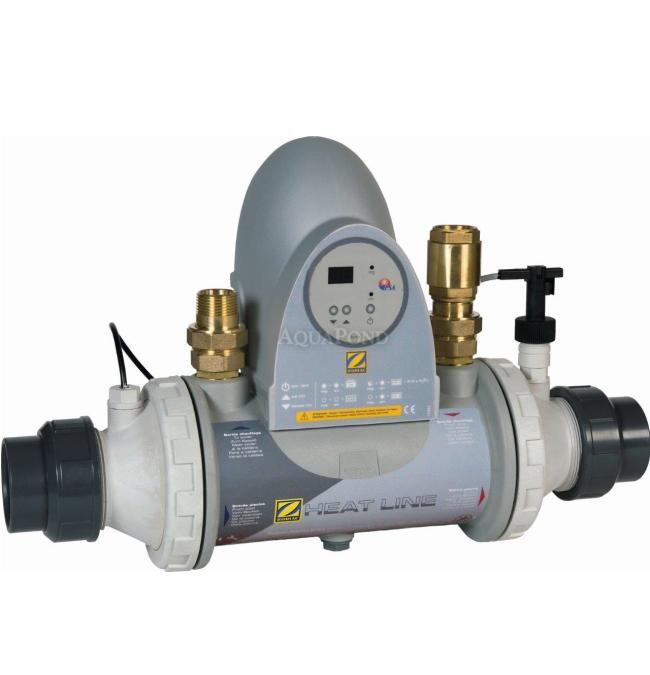

ZODIAC HEAT LINE Kompakt Heat Exchanger without Circulation Pump; Titanium 20 kW
The pool heat exchanger is made of durable polyamide with an internal coil for heating water made of titanium. It is designed for saltwater pools. Suitable for heating water in swimming pools and hot tubs. The heat exchanger can be connected to a boiler heating circuit, heat pump, or solar collectors.
The control unit with thermostat ensures temperature regulation of the pool water via a temperature sensor. The unit includes a digital display, digital temperature setting, an on/off switch, and an indicator light showing whether the exchanger is currently operating. The circulation pump for the heating water is not included.
Output at 90°C 20 kW Output at 60°C 8.5 kW Output at 45°C 4 kW Water flow in the heating section 0.9 m³/h Water flow in the pool section 10 m³/h Use:
- For saltwater pools
- For outdoor and indoor pools with sand filtration
Package Contents
- Heat exchanger body
- 2 PVC connectors 60 / 50 mm
- Heating water check valve
- Thermostat temperature sensor tank
- Pool water flow flap
- Control and regulation unit
Connecting the Zodiac exchanger to the filtration
and heating circuitFor connection to the secondary circuit with pool water, a 63 mm PVC union is used.
A 63 mm PVC pipe must be glued into it. For connection to 50 mm piping,
it is enough to glue the supplied reducer into the union. For connection to the primary circuit
with heating water, the external 1" thread is used.
Technical Specifications
- Heat output: 20 kW at a temperature difference of 90 / 70 °C
- Pool circuit connection: 50 / 63 mm connectors
- Pool water flow: 10 m3 / h
- Pool water pressure loss: 5 kPa
- Heating circuit connection: external 1" thread
- Maximum pressure: 0.2 MPa
- Maximum heating water temperature: 90°C
- Heating water flow: 15 l / min
- Heating water pressure loss: 1.5 kPa
- Warranty: 2 years
Spare Parts List
You can find the complete list of spare parts here:
Spare parts for ZODIAC HEAT LINE Kompakt Titanium 20 kW heat exchanger without circulation pump
-
