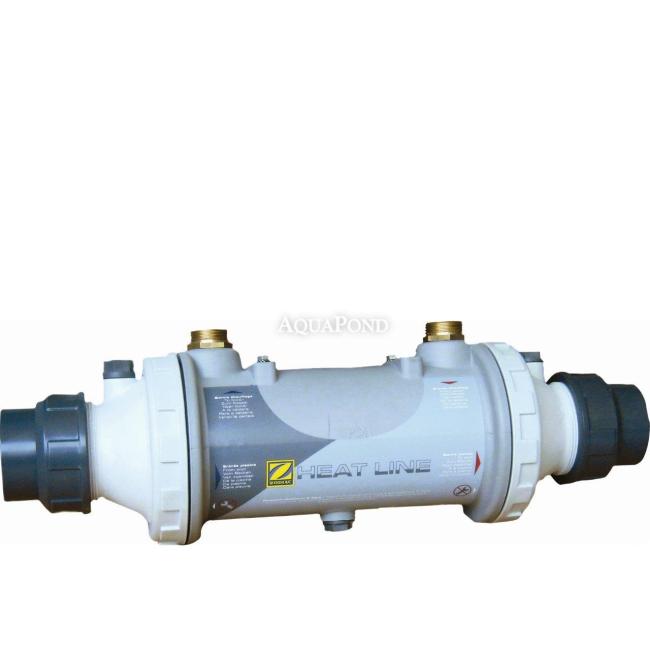

Zodiac Heat Line Titan 70 kW Heat Exchanger


Zodiac Heat Line Titan 70 kW Heat Exchanger
Zodiac Heat Line Titan 70 kW Heat Exchanger


Zodiac Heat Line Titan 70 kW Heat Exchanger

Description

The Heat Line titanium heat exchanger is designed for heating pool water and water in hot tubs and spas. It can also be used for heating floors, walkways, and similar applications. Read more
Product code: 5510070

  • Heat Exchanger Zodiac Heat Line Titan 70 kW

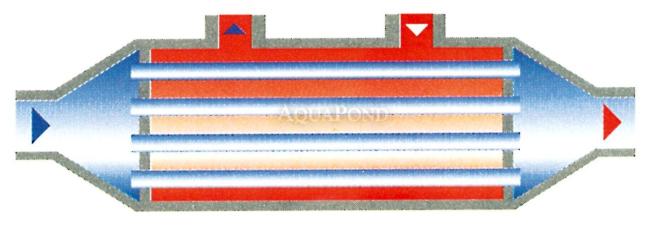

    The titanium Heat Line heat exchanger is designed for heating pool water as well as water in hot tubs and spas. It can also be used for heating floors, walkways, and similar applications.
    The Heat Line heat exchanger can be connected to all types of home heating systems (heat pump, boiler, solar collector, etc.)

    • The titanium heat exchanger is corrosion-resistant and is also suitable for use with saltwater treatment
    • Extra-strong body - the heating coil is made of titanium, the housing is made of durable Noryl-polyamide

    Output at 90°C 70kW
    Output at 60°C 30kW
    Output at 45°C 14kW
    Water flow in the heating section 3.0m³/h
    Water flow in the pool section 20m³/h
    Photogallery

    Photogallery

    Photogallery

    Photogallery

    Connecting the Zodiac heat exchanger to the filtration
    and heating circuit

    For connection to the secondary circuit with pool water, a 63 mm PVC union is used.
    A 63 mm PVC pipe must be glued into it. To connect to 50 mm piping,
    it is enough to glue the supplied reducer into the union. For connection to the primary circuit
    with heating water, the external 1" thread is used.

    Package Contents

    • Heat exchanger body
    • 2 pcs PVC 63 mm unions
    • 2 pcs seals
    • 2 pcs PVC reducers 63 / 50 mm
    • Heating water check valve

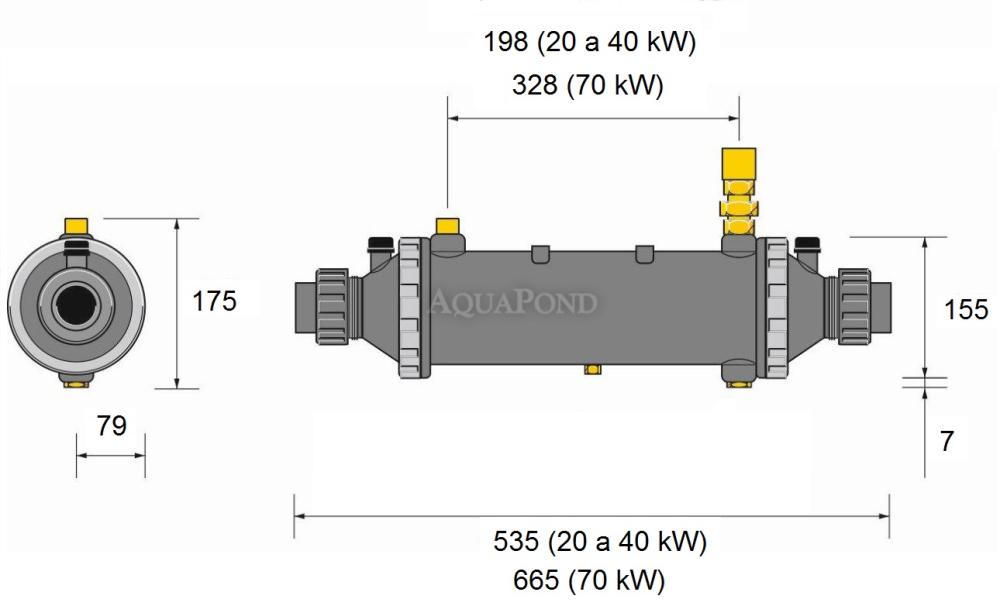

    Technical Specifications

    • Rated input: 70 kW
    • Easy installation:  Yes
    • Body material: Noryl- Polyamide
    • Warranty period: 2 years
    • For salt water above 5 g / l: Yes - max. 6 g / l
    • Maximum operating pressure: 2 bar
    • Recommended pool volume: Maximum 120-200 m3
    • Coil material: Titanium
    • Maximum operating temperature: 90 °C
    • Weight: 5.49 kg
    Photogallery

    Spare Parts List

    You can find the complete list of spare parts here:



    Spare parts for ZODIAC HEAT LINE heat exchanger; Titanium 70 kW, check valve included


    Photogallery
