Heat exchanger ZODIAC HEAT LINE Compact with circulation pump; Titanium 70 kW
|
 |
Heat exchanger ZODIAC HEAT LINE Compact with circulation pump; Titanium 70 kW
Description
Titanium heat exchanger with control panel and circulation pump. Read more
-

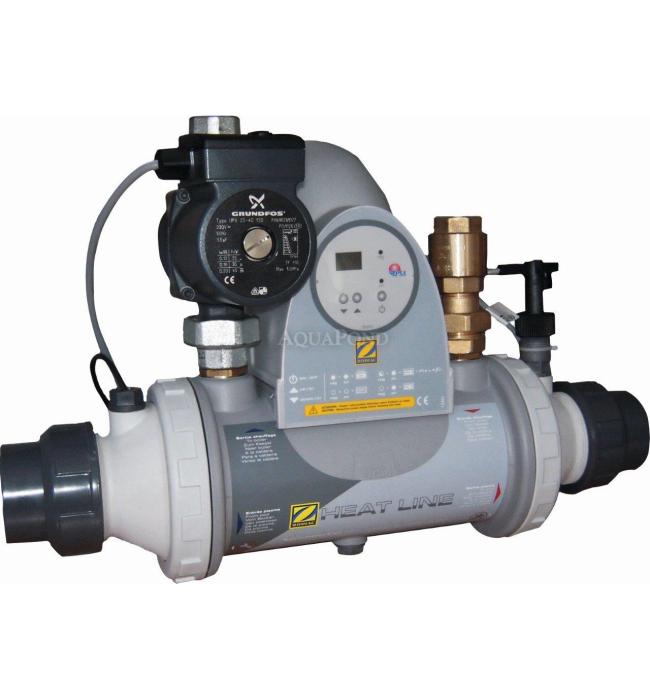

ZODIAC HEAT LINE Compact Heat Exchanger with Circulation Pump; Titanium 70 kW
The pool heat exchanger is made of durable polyamide with an internal titanium heating coil. It is designed for saltwater pools. Suitable for heating water in pools and hot tubs. The heat exchanger can be connected to the heating circuit of a boiler, heat pump, or solar collectors.
The control unit with thermostat ensures regulation of the pool water temperature via a temperature sensor. The unit features a digital display, digital temperature setting, an on/off switch, and an indicator light showing whether the exchanger is currently in operation.
The Grundfos pump ensuring circulation of the heating water has a power input of 45 W.
Output at 90°C 70 kW Output at 60°C 30 kW Output at 45°C 14 kW Water flow in the heating section 3 m³/h Water flow in the pool section 20 m³/h Use:
- For saltwater pools
- For outdoor and indoor pools with sand filtration
Package Contents
- Heat exchanger body
- 2 PVC fittings 60 / 50 mm
- Heating water check valve
- Thermostat temperature sensor housing
- Pool water flow flap
- Control and regulation unit
- Circulation pump
Connecting the Zodiac exchanger to the filtration
and heating circuitFor connection to the secondary circuit with pool water, a 63 mm PVC union is used.
A 63 mm PVC pipe must be glued into it. For connection to 50 mm piping,
it is enough to glue the supplied reducer into the union. For connection to the primary circuit
with heating water, the external 1" thread is used.
Technical Parameters
- Heating output: 70 kW at a temperature difference of 90 / 70 °C
- Pool circuit connection: 50 / 63 mm fittings
- Pool water flow rate: 20 m3 / h
- Pool water pressure loss: 10 kPa
- Heating circuit connection: external 1" thread
- Maximum pressure: 0.2 MPa
- Maximum heating water temperature: 90°C
- Heating water flow rate: 50 l / min
- Heating water pressure loss: 3 kPa
- Warranty: 2 years
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for ZODIAC HEAT LINE Compact heat exchanger with circulation pump; Titanium 70 kW
-
