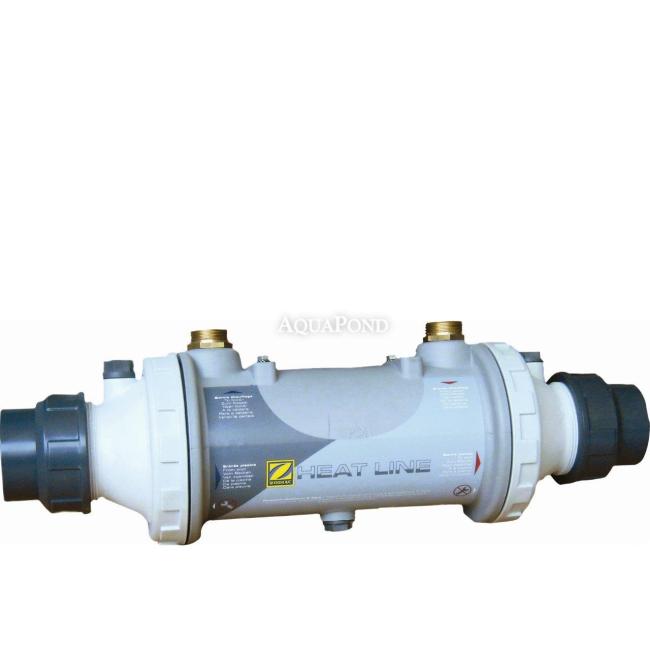

Zodiac Heat Line Titan 40 kW Heat Exchanger


Zodiac Heat Line Titan 40 kW Heat Exchanger
Zodiac Heat Line Titan 40 kW Heat Exchanger


Zodiac Heat Line Titan 40 kW Heat Exchanger

Description

The Titanium Heat Line heat exchanger is designed for heating pool water and water in hot tubs and spas. It can also be used for heating floors, walkways, and similar applications. Read more
Product code: 5510040

  • Zodiac Heat Line Titan 40 kW Heat Exchanger

    The titanium Heat Line heat exchanger is designed to heat pool water as well as water in hot tubs and spas. It can also be used for heating floors, walkways, and similar applications.
    The Heat Line heat exchanger can be connected to all types of home heating systems (heat pump, boiler, solar collector, etc.)

    • The titanium exchanger is corrosion-resistant and is also suitable for use with saltwater treatment systems
    • Extra-strong body - the heating coil is made of titanium, the body is made of durable Noryl-polyamide

    Output at 90°C 40kW
    Output at 60°C 17kW
    Output at 45°C 8kW
    Water flow in the heating circuit 1.7m³/h
    Water flow in the pool circuit 15m³/h
    Photogallery

    Photogallery

    Photogallery

    Photogallery

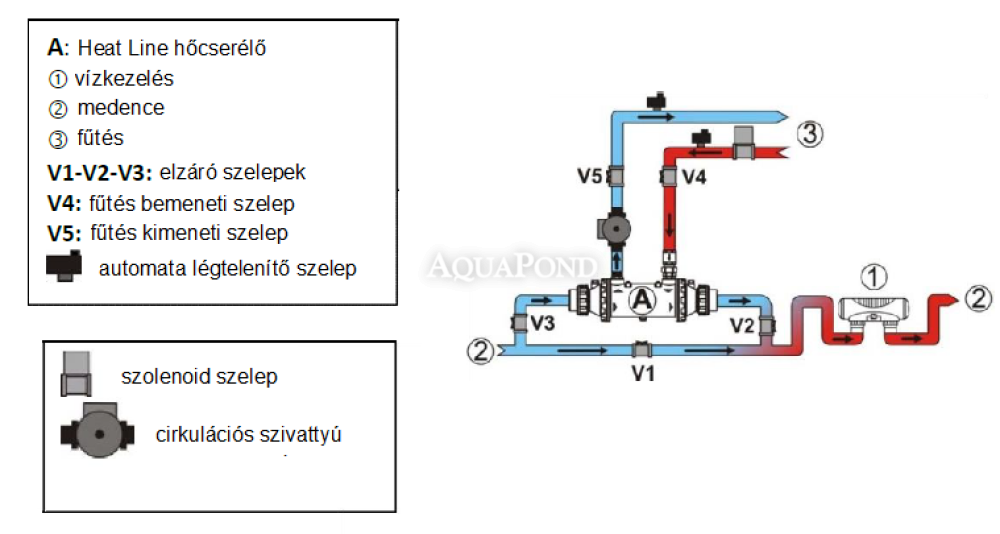

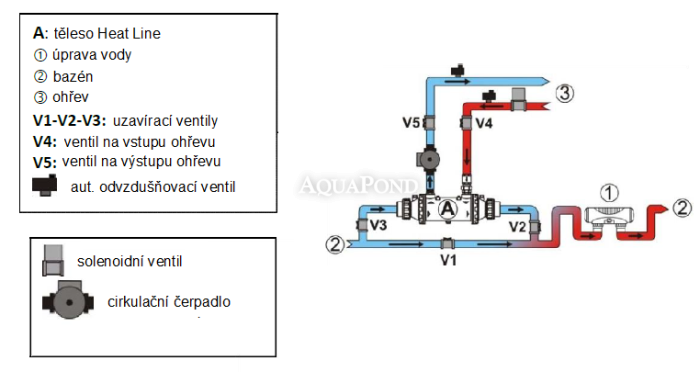

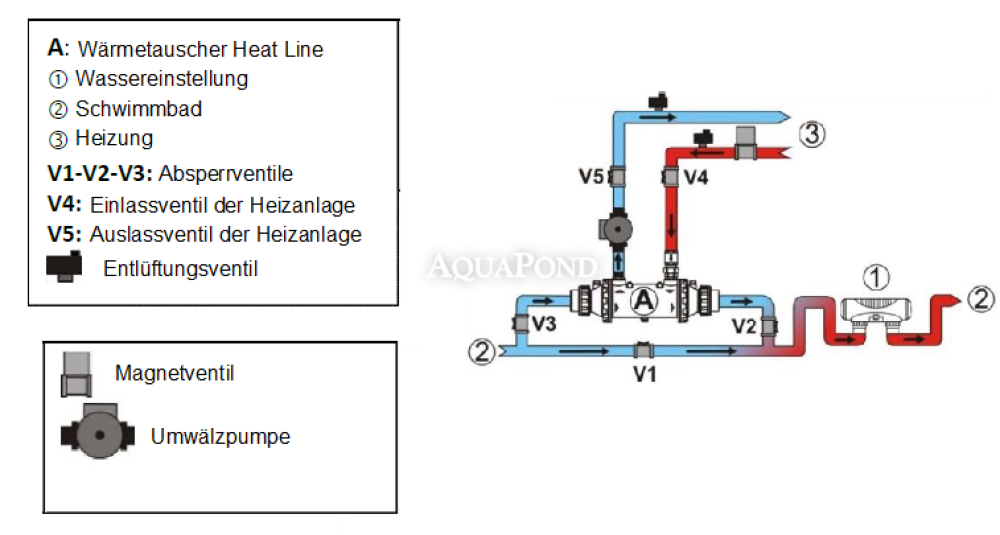

    Connecting the Zodiac exchanger to the filtration
    and heating circuit

    For connection to the secondary circuit with pool water, a 63 mm PVC union is used.
    A 63 mm PVC pipe needs to be glued into it. To connect to 50 mm piping,
    it is enough to glue the supplied reducer into the union. For connection to the primary circuit
    with heating water, the external 1" thread is used.

    Package Contents

    • Heat exchanger body
    • 2 pcs 63 mm PVC unions
    • 2 pcs seals
    • 2 pcs PVC reducers 63 / 50 mm
    • Heating water check valve

    Technical Specifications

    • Rated input: 40 kW
    • Easy installation:  Yes
    • Body material: Noryl- Polyamide
    • Warranty period: 2 years
    • For salt water above 5 g / l: Yes - max 6 g / l
    • Maximum working pressure: 2 bar
    • Recommended pool volume: Maximum 50-120 m3
    • Coil material: Titanium
    • Maximum working temperature: 90 °C
    • Weight: 4.74 kg
    Photogallery

    Spare Parts List

    The complete list of spare parts can be found here:



    Spare parts for ZODIAC HEAT LINE titanium heat exchanger 40 kW, with check valve included
