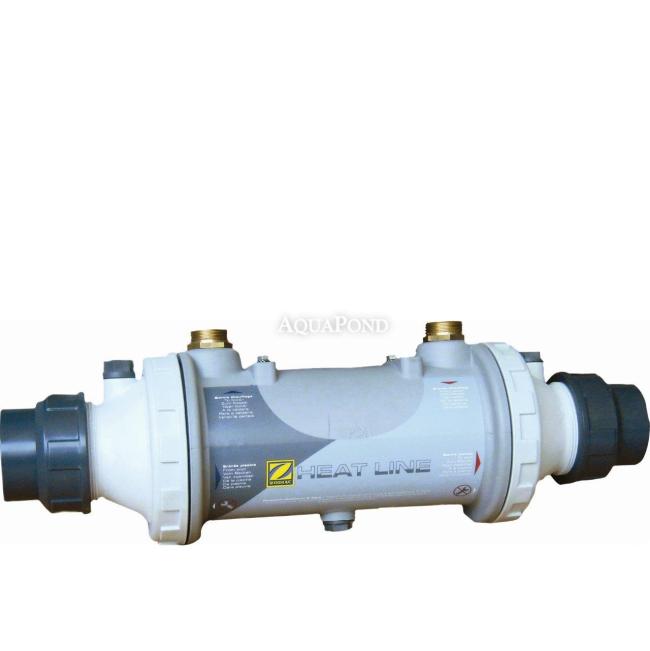

Zodiac Heat Line Titan 20 kW Heat Exchanger


Zodiac Heat Line Titan 20 kW Heat Exchanger
Zodiac Heat Line Titan 20 kW Heat Exchanger


Zodiac Heat Line Titan 20 kW Heat Exchanger

Description

The Titanium Heat Line heat exchanger is designed for heating pool water and water in hot tubs and spas. It can also be used for heating floors, walkways, and similar applications. Read more
Product code: 5510020

  • Zodiac Heat Line Titan 20 kW Heat Exchanger

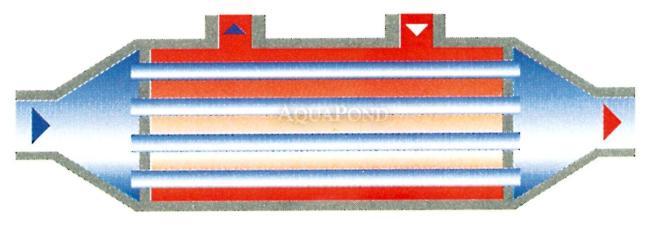

    The titanium Heat Line heat exchanger is designed to heat pool water as well as water in hot tubs and spas. It can also be used for underfloor heating, pathways and similar applications.
    The Heat Line heat exchanger can be connected to all types of home heating systems (heat pump, boiler, solar collector, etc.)

    • The titanium exchanger is corrosion-resistant and is also suitable for use with saltwater treatment
    • Extra-strong body - the heating coil is made of titanium, the body is made of durable Noryl-polyamide

    Output at 90°C 20kW
    Output at 60°C 8,5kW
    Output at 45°C 4kW
    Water flow in the heating circuit 0,9m³/h
    Water flow in the pool circuit 10m³/h
    Photogallery

    Photogallery

    Photogallery

    Photogallery

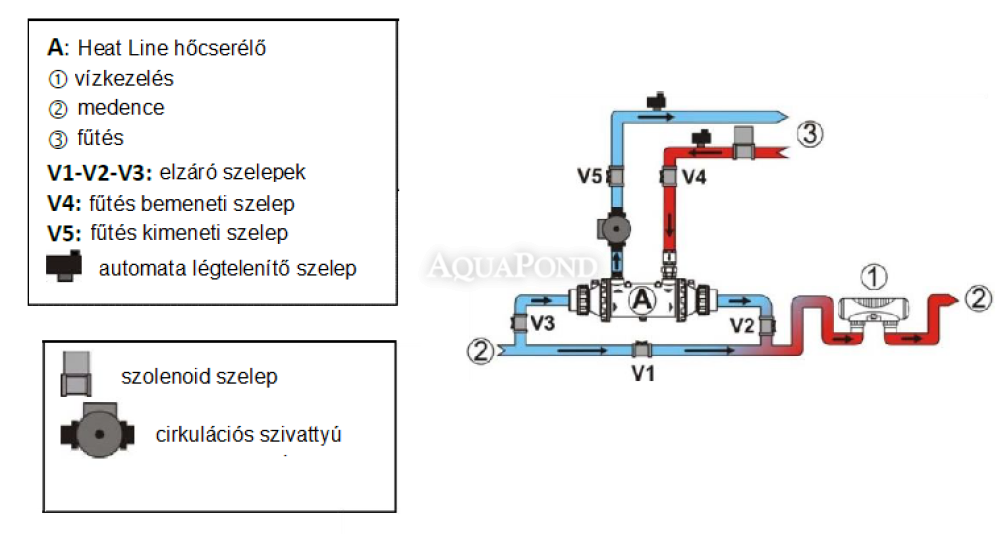

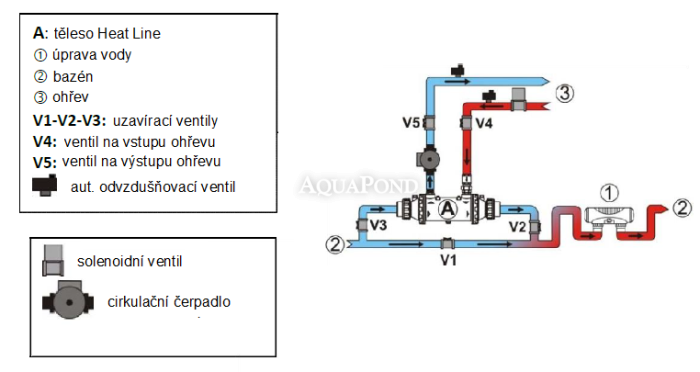

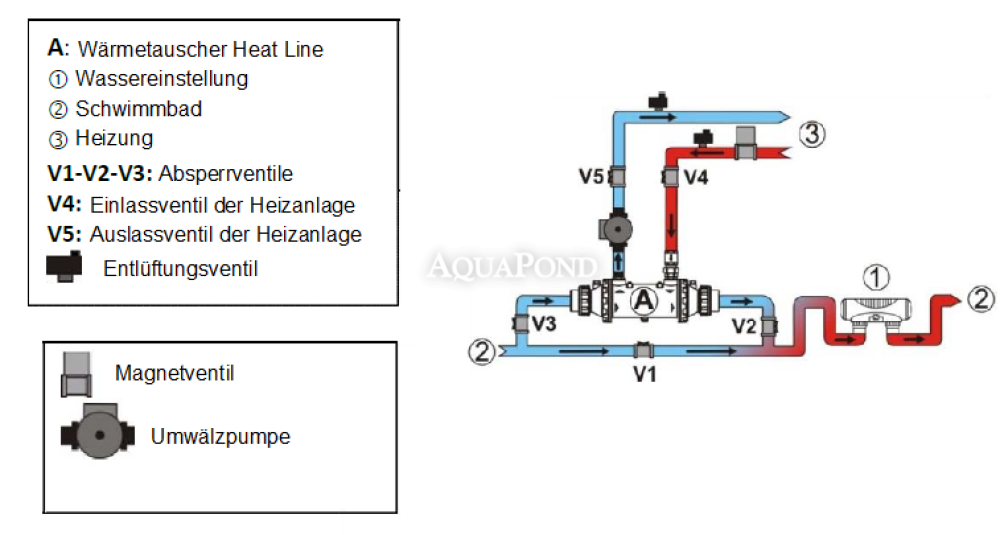

    Connecting the Zodiac exchanger to the filtration
    and heating circuit

    Connection to the secondary circuit with pool water is made using a 63 mm PVC union.
    A 63 mm PVC pipe must be glued into it. To connect to 50 mm piping,
    it is enough to glue the supplied reducer into the union. Connection to the primary circuit
    with heating water is made using the external 1" thread.

    Package Contents

    • Heat exchanger body
    • 2 pcs PVC 63 mm unions
    • 2 pcs seals
    • 2 pcs PVC reducers 63 / 50 mm
    • Heating water check valve

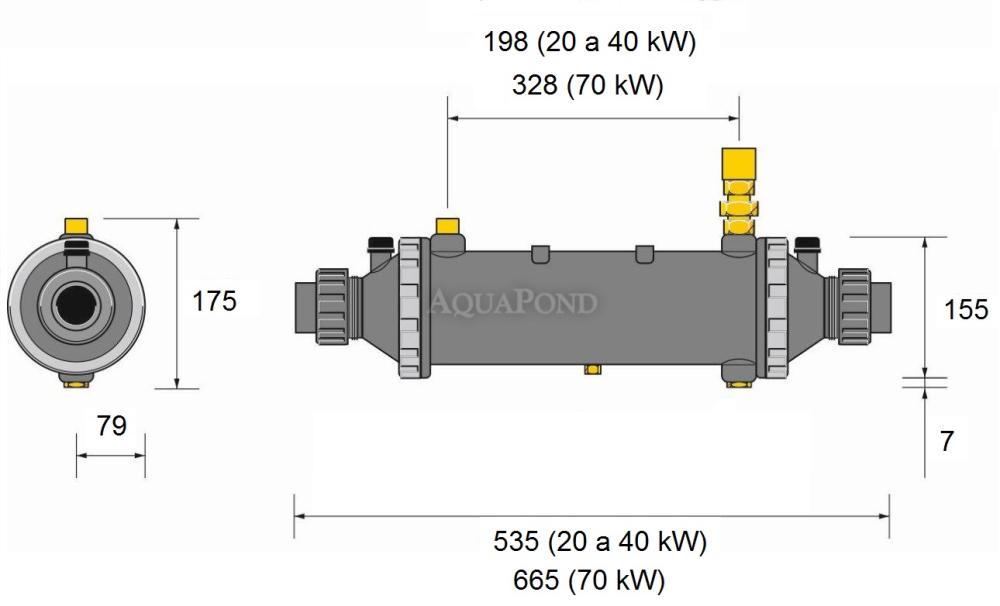

    Technical Specifications

    • Rated input: 20 kW
    • Easy installation: Yes
    • Body material: Noryl- Polyamide
    • Warranty period: 2 years
    • Suitable for saltwater above 5 g/l: Yes - max 6 g/l
    • Maximum working pressure: 2 bar
    • Recommended pool volume: Maximum 50 m3
    • Coil material: Titanium
    • Maximum working temperature: 90 °C
    • Weight: 4.72 kg
    Photogallery

    Spare Parts List

    You can find the complete spare parts list here:



    Spare parts for ZODIAC HEAT LINE heat exchanger, Titanium 20 kW, including check valve


    Photogallery
