Heat Exchanger Hi-Flow 28 kW
Heat Exchanger Hi-Flow 28 kW
Description
The Hi-Flow heat exchanger is specially designed for heating pool water or hot tubs. This all-stainless-steel exchanger is most advantageous when heating water with a gas or other boiler, or alternatively ... Read more
-
Hi-Flow Heat Exchanger 28 kW
The Hi-Flow heat exchanger is specially designed for heating pool water or hot tubs thanks to its construction. The most efficient use of this all-stainless-steel exchanger is for heating water with a gas boiler or other boiler, or with solar collectors. We recommend that every installed exchanger be supplemented with suitable automatic control, which reliably ensures safe and convenient operation.
- made of top-quality AISI 316 stainless steel
- 100% leak tested
- features a special flow-restricted design to ensure maximum heat transfer
- designed to minimize pressure in the heating system
- compact in size, so it requires minimal installation space; equipped with stainless steel brackets
- can be fitted with special fittings for connecting the secondary circuit ("thermal bridge")
- Hi-Flow: Max. pressure: primary circuit 60 bar, secondary circuit 10 bar
Use:
- For pools with chlorinated water
- For outdoor and indoor pools with sand filtration
Package Contents
- Exchanger body
- 2 wall brackets
- Parts for attaching the grounding cable (eyelet, 2 nuts and washer)

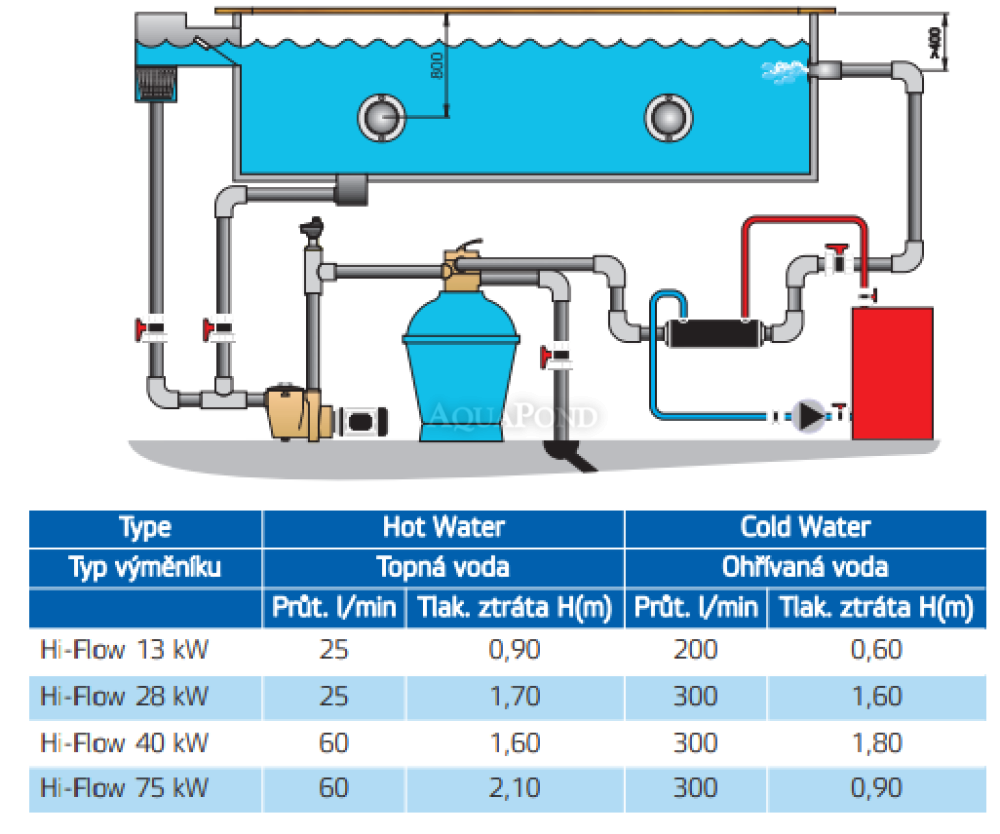

Connecting the Hi-Flow Exchanger to the Filtration and Heating Circuit
The secondary circuit connection for pool water is via the internal 1 1/2" thread.
A brass union with a PVC end piece must be connected to it, into which a 50 mm pipe is then glued.
Because of the exchanger’s high temperatures, do not use a PVC union—use a brass one, otherwise the thread may loosen and water may leak out!The primary circuit connection for heating water is via the internal 3/4" thread.
Use the supplied mounting parts to attach the exchanger to the wall.

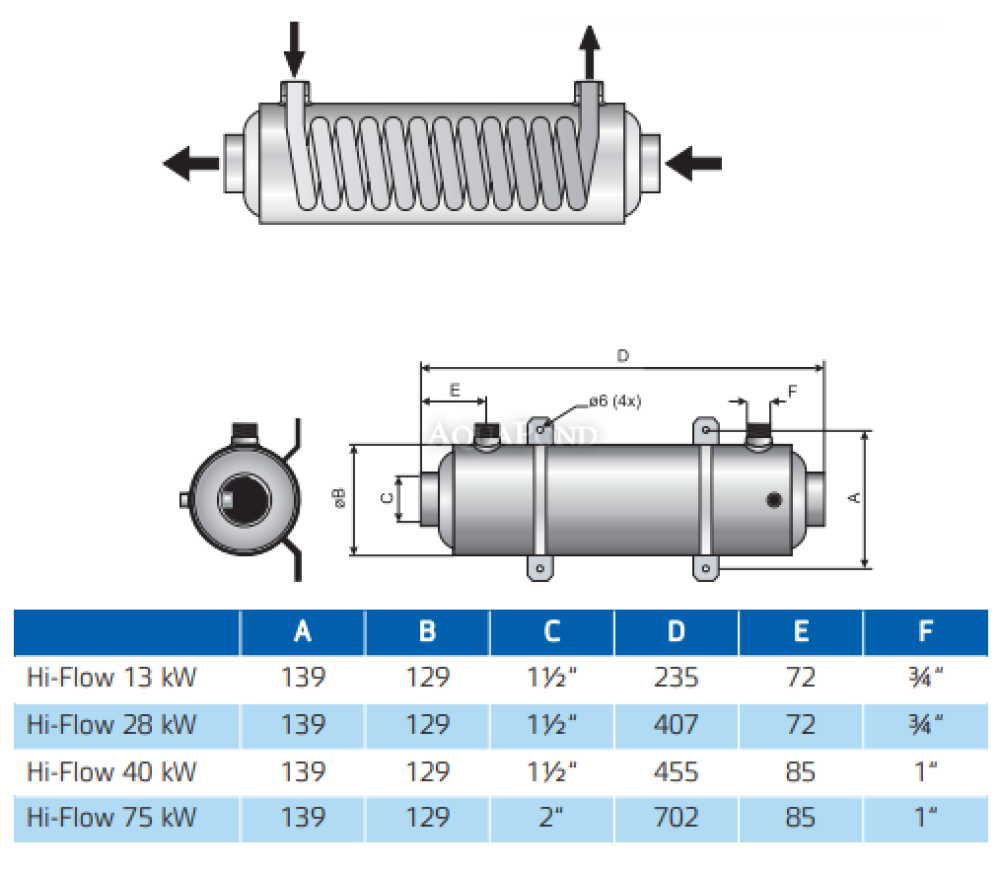

Technical Specifications
- Material: AISI 316
- Maximum primary circuit pressure: 60 bar
- Maximum secondary circuit pressure: 10 bar
- Pool circuit connection: 1 1/2" in
- Heating circuit connection: 3/4" in
- For pools up to: 32 m3
- Weight: 3.2 kg
- Output: 28 kW
- Maximum heating water temperature: 130°C
- Flow rate heating water / heated water: 25 / 300 l/min
-
