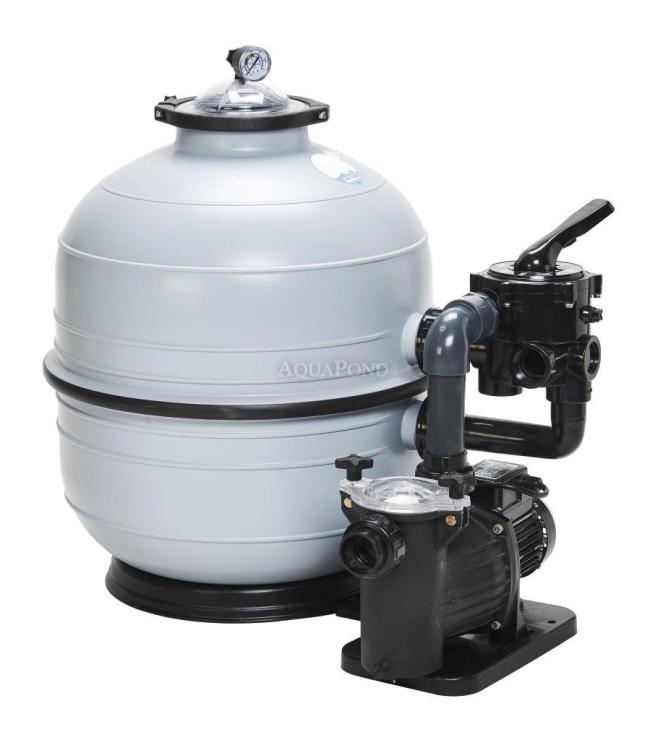

Filtration system - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, FreeFlo pump 12 m3/h, 230V, Czech description
Filtration system - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, FreeFlo pump 12 m3/h, 230V, Czech description
Description
Filtration set KIT MIDI 600 - MIDI filter tank with a six-way side valve, pressure gauge, and FreeFlo filter pump 12m3/h. Read more
-
Package Contents
- MIDI 600 filter tank
- Pump FreeFlo 12 m3/h - 230V, 0.75 kW
- IPS6103 six-way valve - Side-mounted six-way valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric pressure vessels - 1 1/2’’ connection
- Czech label for 6-way valve
- Pressure gauge
- Instruction manual
Technical Parameters
- Filtration capacity: 12 m3/h
- Power input: 0.75 kW
- Flow rate: 14 m3/h
- Voltage: 230 V
- Max. pressure: 2.5 bar
- Motor protection: IP55
- Filling quantity: 150 kg
- Weight without sand: 25 kg
- Connection (int): 1 1/2 "in
- Valve: six-way
- Suction/discharge connection - glued: 50 / 50 mm
- Max. operating temperature: 35°C
Filtration Unit - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, FreeFlo 12 m3/h pump, 230V, Czech label

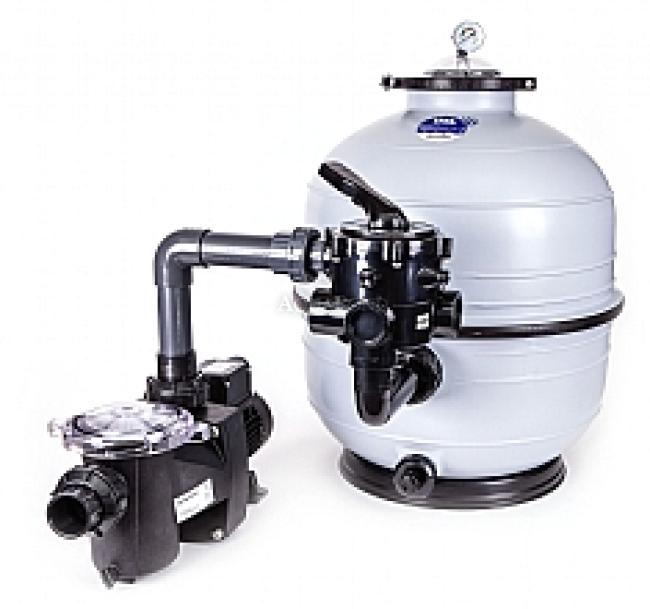

Complete KIT filtration station - equipped with a base for the filter tank, a pad for the filtration pump, a pressure gauge, a 6-way side valve, and a self-priming FreeFlo 12 m3/h pump.
The MIDI 600 filter tank / 51MID600 / is made of injection-molded thermoplastic material and welded using the most advanced welding technology. It has a transparent top lid, is equipped with a pressure gauge, and the six-way valve is located on the side of the tank. Installation and commissioning are easy. The filtration unit can be connected to the pool circuit by gluing to PVC pipes or flexible hoses with a diameter of 50 mm.- Self-priming pump with a large prefilter
- Monoblock designed for quiet operation
- Transparent cover for easy basket inspection, cleaning, and maintenance
- Robust motor with thermal protection, motor protection IP55
- Rotating connection piece for better sealing and greater flexibility during installation
- 50 mm connection - inner diameter
Operating Principle
Suction is drawn from the main drain (1) at the bottom of the pool and the skimmer (2) at the water surface, and is carried through a separate piping system with corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water returns to the pool through return inlets (6), which are installed on the opposite side of the pool from the skimmer and main drain.
-
