Filtration system - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, Bettar Top S II pump 12 m3/h, 230V, Czech description
Filtration system - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, Bettar Top S II pump 12 m3/h, 230V, Czech description
Description
Filter tank MIDI with 6-way side valve, pressure gauge, and Bettar filter pump (12 m3/h). Read more
-

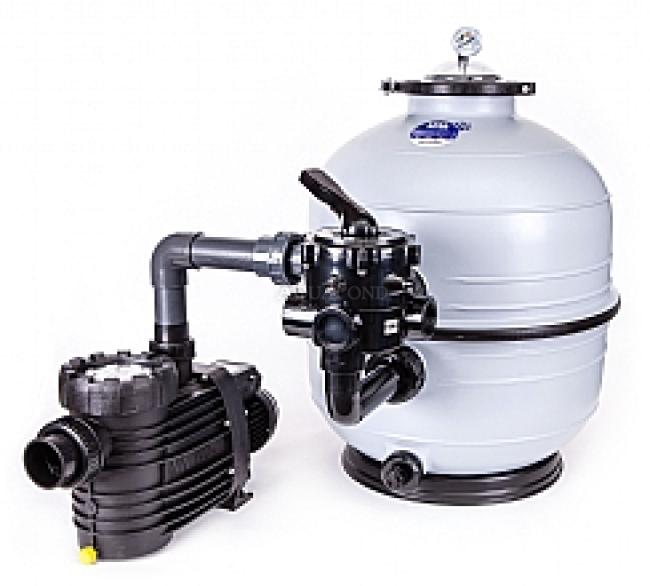

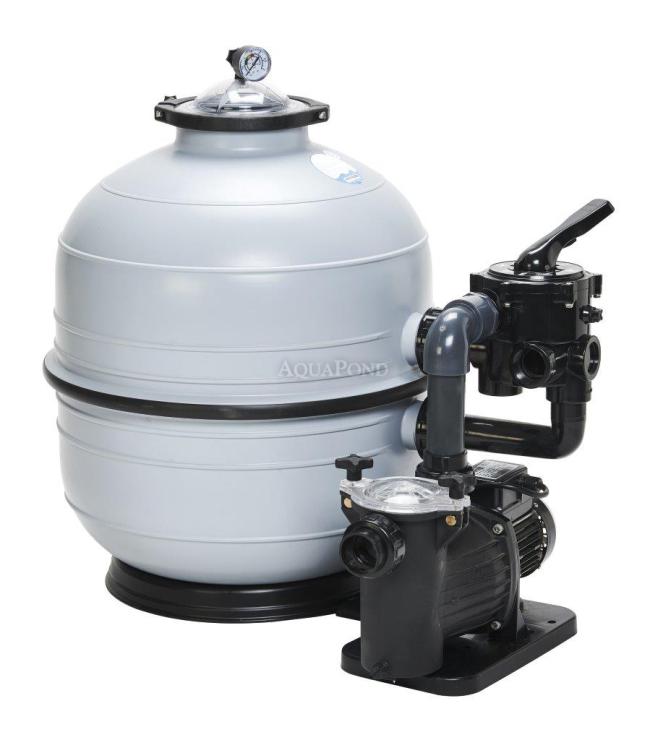

Filtration Unit - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, Bettar Top S II pump 12 m3/h, 230V, Czech description
The KIT MIDI 400 filtration unit can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Water passes through a layer of sand that traps fine impurities. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is for. By turning the valve to the sand washing position, we reverse the direction of water flow and flush the trapped dirt into the waste outlet. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods. The KIT MIDI 500 sand filtration unit, 12 m3 / h, consists of a sand filter tank, a pump with a hair strainer prefilter, a 6-way valve, and a base (pallet). The KIT MIDI 400 filtration unit is supplied disassembled. It must be assembled before connecting to the pool. Assembly and commissioning are simple. The filtration unit can be connected to the pool circuit by gluing to PVC pipes as well as flexible hoses with a diameter of 50 mm.
Package Contents
- MIDI 500 filter tank
- Pump Bettar Top S II 12 m3/h - 230V, 0.45 kW
- IPS6103 six-way valve - Side six-way valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric pressure tanks - 1 1/2’’ connection
- Czech description for the six-way valve
- Assembly and operating instructions
- Pressure gauge
Technical Parameters
- Tank diameter: 500 mm
- Filtration capacity: 12 m3/h
- Power supply: 230 V
- Max. operating temperature: 35°C
- Valve: 6-way side valve
- Max. pressure: 1.4 bar
- Sand filling: 100 kg (not included with the filtration unit)
- Weight without sand: 24 kg
Wiring Diagram
Operating Principle
Suction is taken from the main drain (1) at the bottom of the pool and from the skimmer(s) (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmer and main drain.
List of Spare Parts
You can order spare parts for the filter tank here:
-
