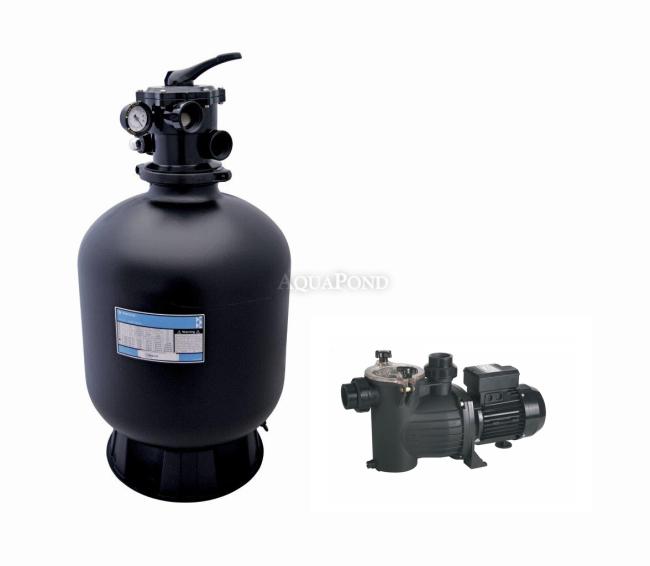

Filtration unit Azur KIT 480 on a base with Preva pump 9 m³/h, without connecting piping
Filtration unit Azur KIT 480 on a base with Preva pump 9 m³/h, without connecting piping
Description
Azur Kit sand filtration can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Read more
-
Azur KIT 480 Filtration Unit on a Base with Preva Pump 9 m3/h, Without Connecting Piping
Sand filters work on the natural principle of water filtration. Water passes through a layer of sand, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand-washing position, the direction of water flow changes and the trapped impurities are flushed out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.
Package Contents
- Azur 480 filter tank
- 6-way top valve - PE272026 - TOP valve - 6-way valve for flange-mounted AZUR filter tank
- Preva 9m3/h pump
- Azur base
- Installation and operating instructions
Technical Specifications
- Tank material: Polypropylene
- Filling quantity: 75 kg
- Tank diameter: 480 mm
- Max. operating pressure: 2 bar
- Flow rate: 9 m3 / h
- Valve: 6-way top
- Pump flow rate: 9 m3 / h
- For pools up to: 40 m3
- Max. temperature: 35 ° C
Complete AZUR KIT
The AZUR sand filtration kit Ø 380, 480 and 560 mm can be assembled into several filtration kits. As standard, they are always fitted with a 6-way top valve with pressure gauge. As additional equipment, you can choose a base under the filter itself or a base pallet with space for placing the pump. For the kits, you can individually choose between FreeFlo, Micro Delfino, Preva, and Bettar pumps. The filtration can also be supplemented with connecting piping between the filter and the pump. The entire system is clearly illustrated in the tables for each individual filter.
