Filtration system - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Bettar Top S II pump 12 m3/h, 230V, Czech description
Filtration system - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Bettar Top S II pump 12 m3/h, 230V, Czech description
Description
Filtration tank MIDI with 6-way side valve, pressure gauge, and Bettar filter pump (12 m3/h). Read more
-
Filtration Unit - MIDI KIT 600, MIDI 600 filter tank, 6-way side valve, Bettar Top S II pump 12 m3/h, 230V, Czech description

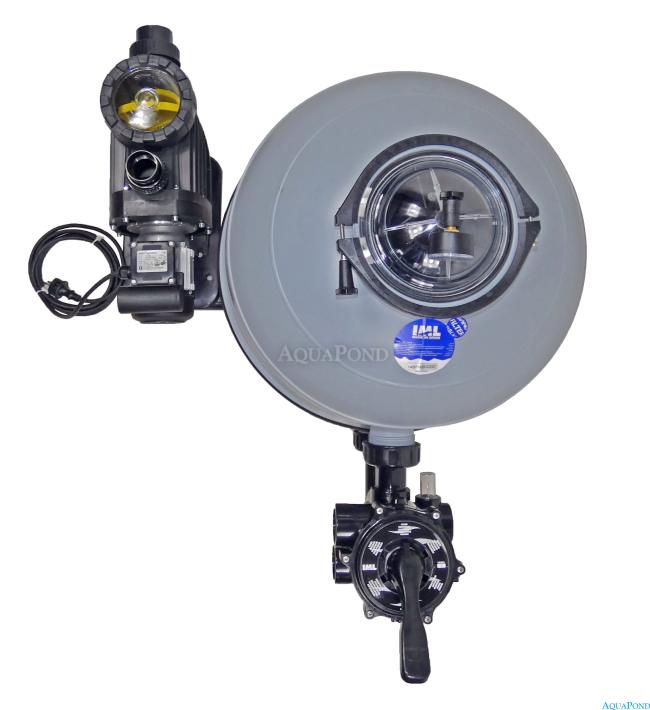

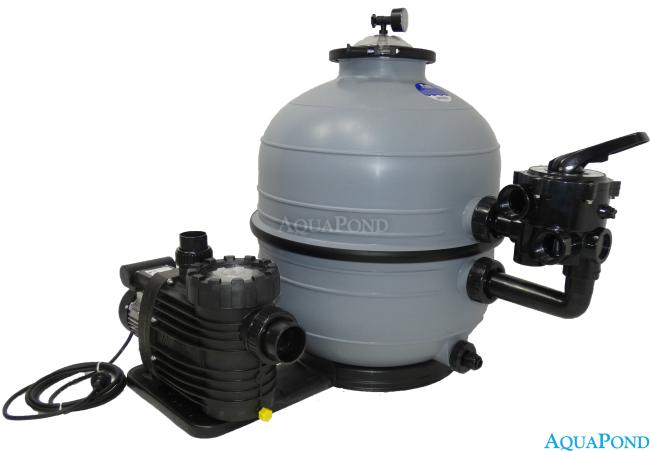

Complete filter station KIT - equipped with a base for the filter tank, a pad for the filter pump, a pressure gauge, a 6-way side valve, and a self-priming Bettar TOP S II 12 m3/h pump.
The MIDI 600 filter tank / 51MID600 / is made of injection-molded thermoplastic material and welded using the most advanced welding technology. It has a transparent top lid, is equipped with a pressure gauge, and the six-way valve is located on the side of the tank. Installation and commissioning are simple. The filtration unit can be connected to the pool circuit by gluing to PVC pipes as well as flex hoses with a diameter of 50 mm.- Self-priming pump with a large prefilter
- Monoblock designed for quiet operation
- Transparent cover for basket inspection and easy cleaning and maintenance
- Robust motor with thermal protection, motor protection rating IP55
- Rotating connection piece for better sealing and greater flexibility during installation
- 50 mm connection - inner diameter
Package Contents
- MIDI 600 filter tank
- Pump Bettar Top S II 12 - 230V, 12 m3/h, 0.45 kW
- IPS6103 six-way valve - Side six-way valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric pressure tanks - 1 1/2’’ connection
- Czech description for the 6-way valve
- Pressure gauge
- Instruction manual
Technical Parameters
- Filter diameter: 600 mm
- Filter area: 0.283 m2
- Filtration capacity: 14 m3/h
- Power input: 0.75 kW
- Flow rate: 14 m / h / m2
- Voltage: 230 V
- Max. pressure: 2.5 bar
- Motor protection rating: IP55
- Filling quantity: 150 kg (not included with the filtration unit)
- Weight without sand: 27.716 kg
- Valve: six-way side
- Suction/discharge connection - glued: 50 / 50 mm
- Max. operating temperature: 35°C
Wiring Diagram
Operating Principle
Suction is drawn from the main drain (1) at the bottom of the pool and from the skimmer(s) (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmer(s) and main drain.
