Filtration system - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Bettar Top S II pump 14 m3/h, 230V, Czech description

Filtračné zariadenie - MIDI KIT 600, filtračná nádoba MIDI 600, šesťcestný bočný ventil, čerpadlo Bettar Top S II 14 m3/h, 230V, český popis

Filtration system - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Bettar Top S II pump 14 m3/h, 230V, Czech description

Description

Filtration tank MIDI 600 with 6-way side valve, pressure gauge and Bettar Top S II filter pump 14m3/h - 230V, 0.65 kW. Read more

Product code: 51MID60014BE

Description
Related products

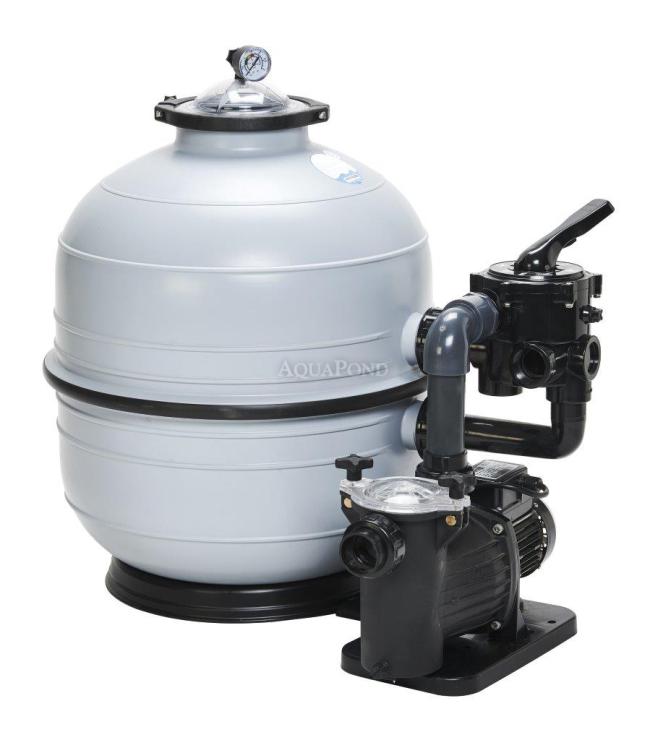

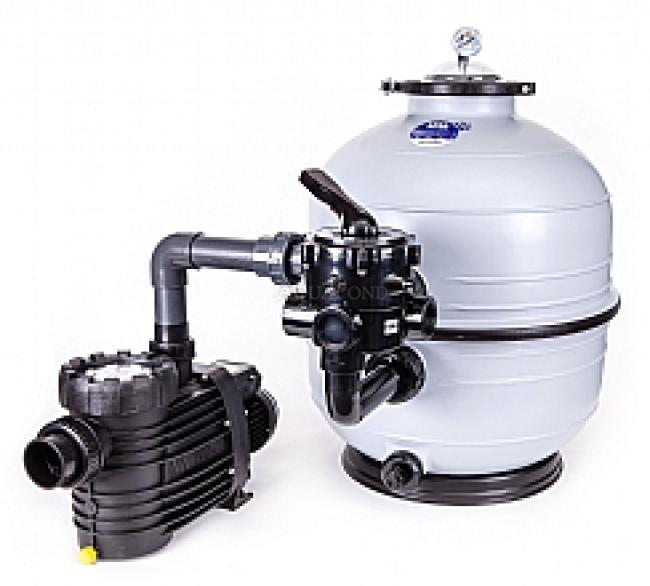

Filtration Unit - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Bettar Top S II pump 14 m3/h, 230V, Czech label

The KIT MIDI 600 filtration unit can be used for water circulation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Water passes through a layer of sand, which traps fine impurities. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand washing position, we reverse the direction of water flow and flush the trapped dirt into the waste line. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods. The KIT MIDI 600 sand filtration system, 14 m³ / h, consists of a sand filter tank, a pump with a hair strainer prefilter, a 6-way valve, and a base (pallet). The KIT MIDI 400 filtration unit is supplied disassembled. Before connecting it to the pool, it must be assembled. Installation and commissioning are simple. The filtration unit can be connected to the pool circuit by gluing PVC pipes or flexible hoses with a diameter of 50 mm.

Package Contents

MIDI 600 filter tank
Pump Bettar Top S II 14 - 230V, 14 m3/h, 0.65 kW
IPS6103 six-way valve - Side six-way valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric pressure tanks - 1 1/2’’ connection
Czech label for the six-way valve
Assembly and operating instructions
Pressure gauge

Technical Specifications

Filtration capacity: 14 m³/h
Power input: 0.75 kW
Flow rate: 14 m³/h
Voltage: 230 V
Max. pressure: 2.5 bar
Motor protection: IP55
Filling quantity: 150 kg
Weight without sand: 30.126 kg
Connection (int): 1 1/2 "in
Valve: six-way side
Suction/discharge connection - gluing: 50 / 50 mm
Max. operating temperature: 35°C
Weight without sand: 30.126 kg

Wiring Diagram

Operating Principle

Suction is drawn from the main drain (1) at the bottom of the pool and from the skimmer(s) (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmer and main drain.
