Filtration tank Lisboa 600 mm, flow rate 14 m3/h, with side valve
|
 |
Filtration tank Lisboa 600 mm, flow rate 14 m3/h, with side valve
Description
Laminate/layered filter - 14 m3/h, side valve. Read more
-

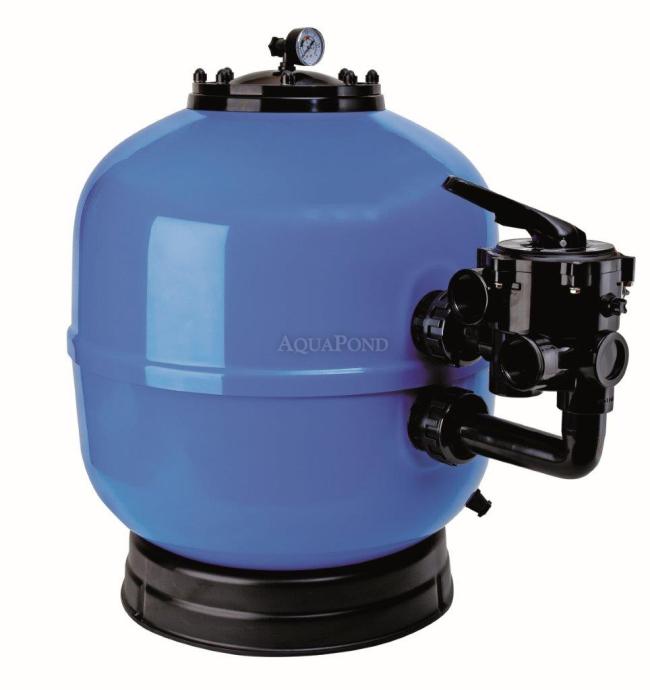

Filter Tank Lisboa 600 mm, flow rate 14 m3 / h, with side valve
The Lisboa series laminated filters are made of polyester resin and fiberglass with a glossy finish.
- High-strength plastic base
- Maximum operating pressure 2.5 kg / cm2
- Test pressure 3 kg / cm2
- Large-diameter top lid for easier sand replacement
- Side 6-way valve 1.5"
Filtration
Filtration is part of the overall treatment of pool water. This means that the filtration system alone, without proper chemical treatment of the water, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.
Package Contents
- tank
- internal piping
- tank and valve connection
- side 6-way valve 1.5"
- pressure gauge
- drain plug
Filtration Principle
Water is drawn by the pump from the bottom of the pool through the pool bottom drain (1) and from the surface of the pool through skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then pushed back into the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand filling that traps insoluble impurities contained in the water. After a certain period of filtration, the sand becomes clogged and water can no longer pass through it easily. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by feeding water into the filter in the opposite direction to the filtration process.

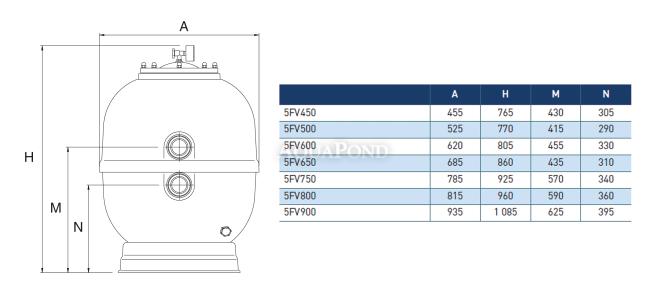

Technical Specifications
- Tank material: polyester resin reinforced with glass fibers
- Filling quantity: 125 kg
- Tank diameter: 600 mm
- Tank height: 805 mm
- Max. working pressure: 2.5 kg / cm2
- Flow rate: 14 m3 / h
- Valve type: 6-way side
- Filtration speed: 50 m3 / h / m2
- ClearPro filtration technology: No
- Base: Yes
- Weight: 21.38 kg
Spare Parts List
You can find the complete list of spare parts here:
Spare parts for the Lisboa 600 mm filter tank, flow rate 14 m3 / h, side valve
-
