Filtration tank Lisboa 550 mm, flow rate 11 m3/h, with side valve
|
 |
Filtration tank Lisboa 550 mm, flow rate 11 m3/h, with side valve
Description
Laminate / layered filter - 11.5 m3 / h, with side valve. Read more
-

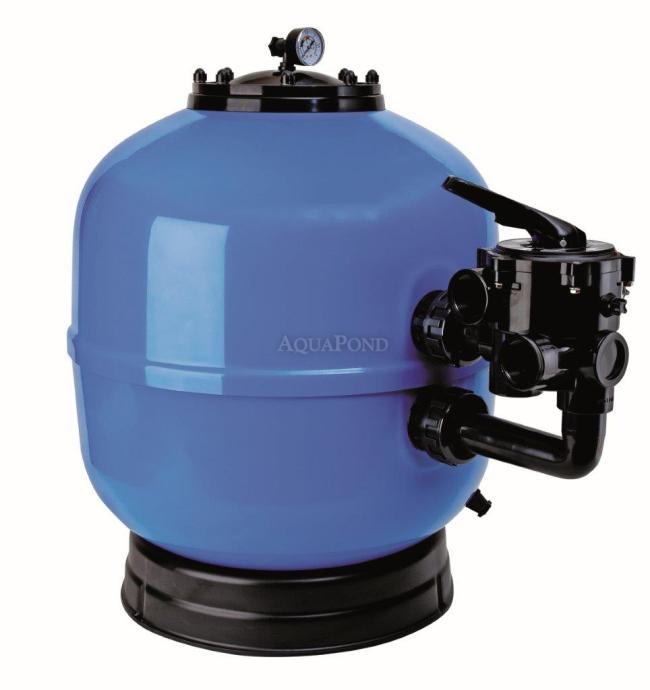

Filter Tank Lisboa 550 mm, flow rate 11 m3 / h, with side valve
The Lisboa series laminated filters are made of polyester resin and glass fiber with a glossy finish.
- High-strength polyester base
- Large-diameter plastic lid
- The filter is fitted with 1" collectors and a diffuser
- The filter is equipped with a pressure gauge, drain valve, and air release
- Equipped with a 6-way valve
- Maximum operating pressure 2.5 kg / cm2
- Test pressure 3 kg / cm2
Filtration
Filtration is part of the overall treatment of pool water. This means that the filtration unit alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.
Package Contents
- tank
- internal piping
- connection between the tank and the valve
- side 6-way valve 1.5"
- pressure gauge
- drain plug
Filtration Principle
Water is drawn by the pump from the bottom of the pool through the pool bottom drain (1) and from the surface of the pool through skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then returned to the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand filling that traps insoluble impurities present in the water. After a certain period of filtration, the sand becomes clogged and water can no longer pass through it easily. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by feeding water into the filter in the opposite direction to the filtration process.

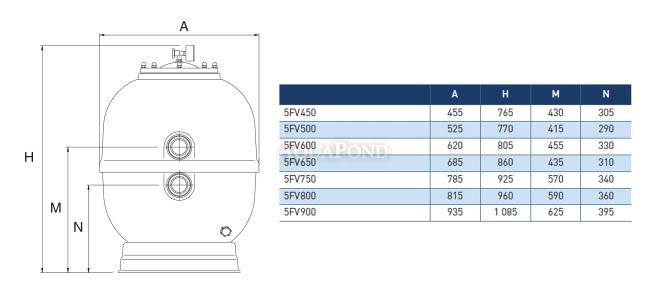

Technical Parameters
- Tank material: polyester resin reinforced with glass fibers
- Filling quantity: 110 kg
- Tank diameter: 550 mm
- Connection: 1 1/2"
- Max. working pressure: 2.5 kg / cm2
- Flow rate: 11.5 m3 / h
- Valve type: 6-way side
- Filtration speed: 50 m3 / h / m2
- ClearPro filtration technology: No
- Base: Yes
- Weight: 26.315 kg
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for the Lisboa 550 mm filter tank, flow rate 11.5 m3 / h, side valve
