Filtration unit - Bilbao Split Kit 500, 12 m3/h, 230 V, 6-way side valve, Preva 75 pump

Description

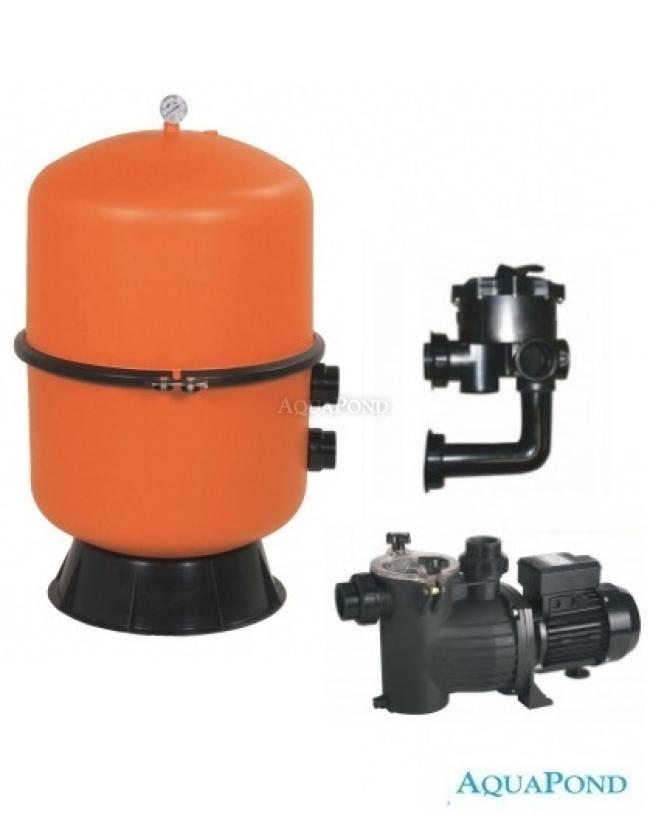

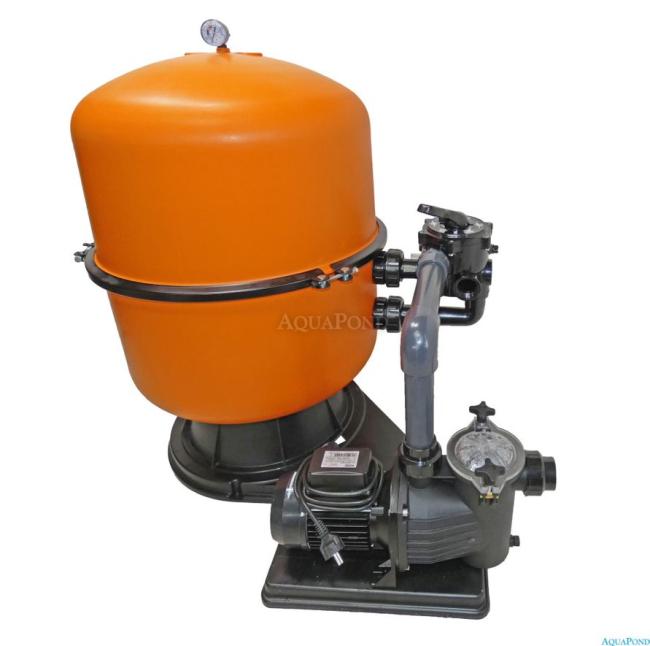

Split filtration tank with 6-way side valve, pressure gauge, and Preva 75 filtration pump (12 m3 / h). Read more

Product code: 51BIL50012PR

Description
Related products

Filtration Unit - Bilbao Split Kit 500, 12 m3 / h, 230 V, 6-Way Side Valve, Preva 75 Pump

The Bilbao 500 sand filter is suitable for above-ground and in-ground pools up to 60 m³. The Bilbao filtration unit features a split sand tank. The split tank allows for faster and easier sand replacement than filters with a top-mounted valve. In addition, when replacing the sand media, there is no risk of accidental damage to the filter’s internal piping. Bilbao filter tanks are manufactured by plastic injection molding, which ensures excellent wall strength. The tanks are highly resistant to internal pressure as well as to the chemical products used for pool maintenance. In terms of material quality, workmanship, and service life, Bilbao filters rank among the best pool filtration systems on the market. There are only a few sand filters that still operate like new after twenty years without complaints. Easy installation and commissioning. Can be connected to pool PVC pipes as well as 50 mm flex hoses.

Filtration

Filtration is part of the overall treatment of pool water. This means that the filtration unit alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.

Package Contents

tank
Preva 75 pump
air release valve
6-way side valve
base
pressure gauge

Filtration Principle

Water is drawn by the pump from the bottom of the pool through the pool bottom drain (1) and from the surface through the skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then returned to the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand media that traps insoluble impurities present in the water. After a certain period of filtration, the sand becomes clogged and therefore difficult for water to pass through. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by directing the water into the filter in the opposite direction to the filtration process.
