Filtration unit - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, FreeFlo pump 9 m3/h, 230V, Czech description
Filtration unit - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, FreeFlo pump 9 m3/h, 230V, Czech description
Description

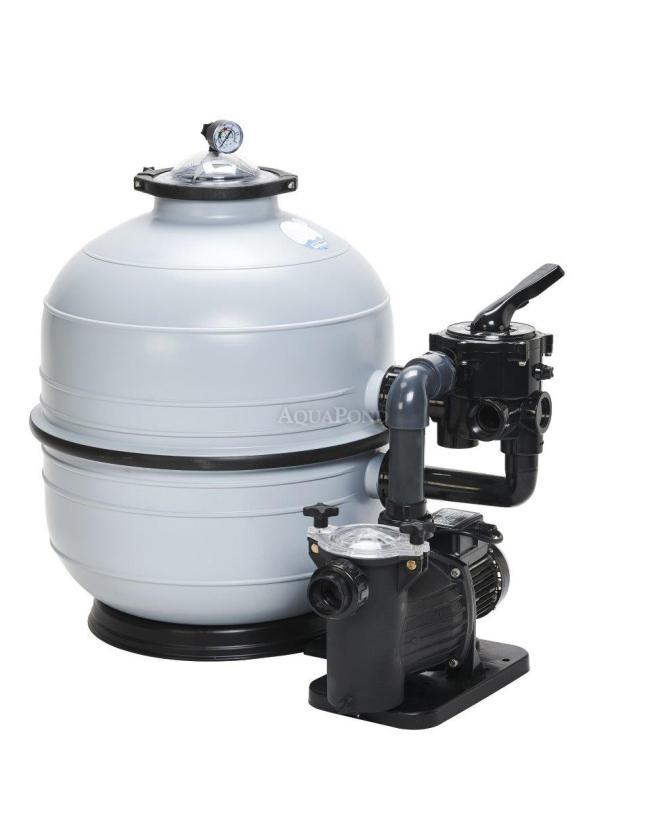

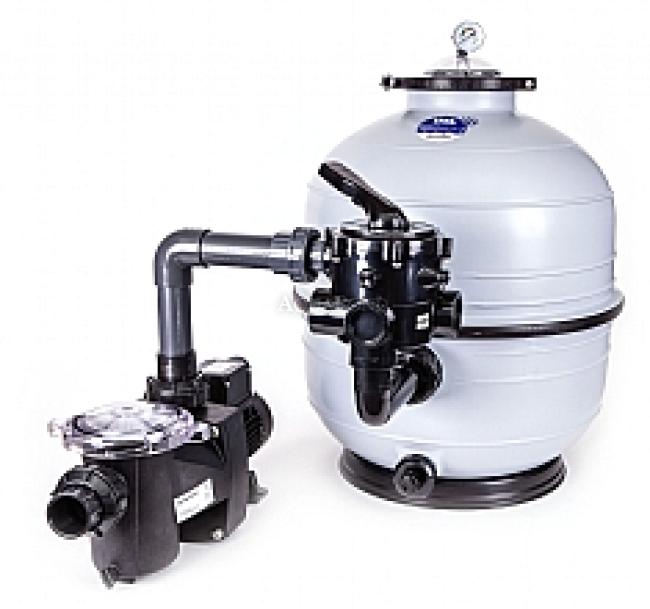

Filtration set MIDI KIT - MIDI filter tank with a six-way side-mounted valve, pressure gauge, and FreeFlo filter pump 9 m3/h. Read more
-
Package Contents
- MIDI 500 filter tank
- Pump FreeFlo 9 m3/h - 230V, 0.55kW
- Six-way valve IPS6103 - Side-mounted six-way valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric pressure tanks - 1 1/2’’ connection
- Czech description for the six-way valve
- Installation and operating instructions
- Pressure gauge
Technical Parameters
- Tank diameter: 500 mm
- Filtration capacity: 9 m3/h
- Power supply: 230 V
- Max. operating temperature: 35°C
- Valve: 6-way side-mounted
- Max. pressure: 1.4 bar
- Sand fill: 100 kg (not included with the filtration system)
- Weight without sand: 25 kg
Filtration System - MIDI KIT 500, MIDI 500 filter tank, six-way side-mounted valve, FreeFlo pump 9 m3/h, 230V, Czech description
The MIDI 500 KIT filtration system can be used for water circulation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Water passes through a layer of sand, which traps fine impurities. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the backwash position, the direction of water flow is reversed, flushing the trapped dirt out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods. The KIT MIDI 500 sand filtration system, 9 m3 / h, consists of a sand filter tank, a pump with a hair prefilter, a 6-way valve, and a base (pallet). The KIT MIDI 500 filtration system is supplied disassembled. It must be assembled before connecting it to the pool. Installation and commissioning are simple. The filtration system can be connected to the pool circuit using glued PVC pipes or flexible hoses with a diameter of 50 mm.
Operating Principle
Suction is taken from the main drain (1) at the bottom of the pool and the skimmer (2) at the water surface, and is carried through separate piping with the appropriate valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmer and main drain.
-
