Filtration system - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, Preva 50 pump, 9 m3/h, 230V, Czech description
Filtration system - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, Preva 50 pump, 9 m3/h, 230V, Czech description
Description

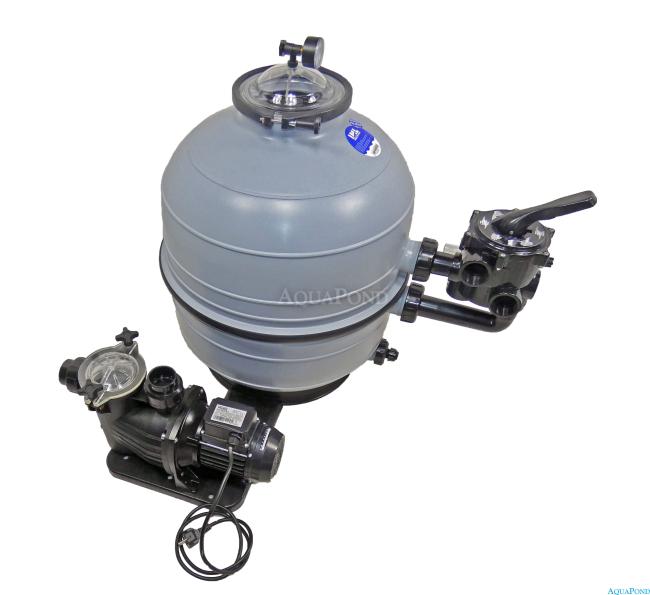

Filtration tank MIDI with 6-way side valve, pressure gauge, and Preva filter pump (9 m3/h). Read more
-
Filtration Unit - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, Preva 50 pump, 9 m3/h, 230V, Czech description
The Kit MIDI sand filter Ø 400, 500 and 600 mm can be assembled into filtration kits. They are supplied as standard in a set with a 6-way side valve with pressure gauge. As additional equipment, you can choose the filter pump type individually for each kit – FreeFlo, Preva, Bettar, Micro Delfino. The connecting piping between the filter and the pump is not included in the package.
Package Contents
- MIDI 500 filter tank
- Preva 50 pump, 230V, 9 m3 / h, 0.33 kW
- Six-way side valve - Six-way side valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric - 1 1/2'' connection
- Pressure gauge
- Filter base plate
Technical Specifications
- Tank diameter: 500 mm
- Filtration capacity: 9 m3/h
- Power supply: 230 V
- Max. operating temperature: 35°C
- Valve: 6-way side valve
- Max. pressure: 1.4 bar
- Sand filling: 100 kg (not included with the filtration unit)
- Weight without sand: 23.116 kg
Operating Principle
Water is drawn from the main drain (1) at the bottom of the pool and from the skimmers (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmers and the main drain.
