Filtration system - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, FreeFlo pump 12 m3/h, 230V, Czech description
Filtration system - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, FreeFlo pump 12 m3/h, 230V, Czech description
Description
Filtration set KIT MIDI 500 - MIDI filter tank with a six-way side valve, pressure gauge, and FreeFlo filter pump 12m3/h. Read more
-
Filtration Unit - MIDI KIT 500, MIDI 500 filter tank, six-way side valve, FreeFlo pump 12 m3/h, 230V, Czech description

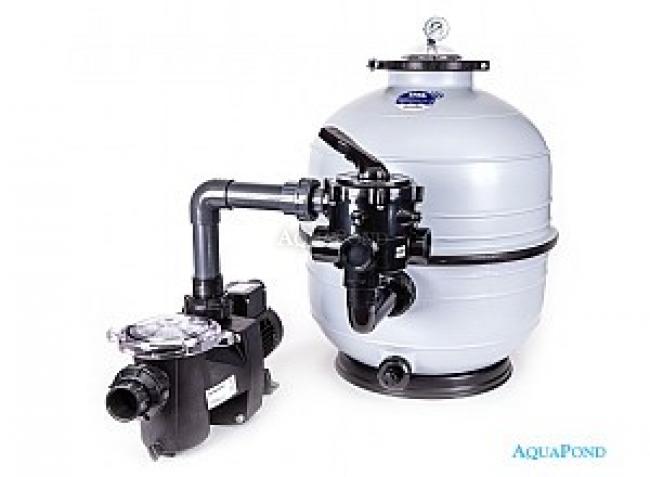

Complete KIT filtration station - equipped with a base for the filter tank, a pad for the filter pump, a pressure gauge, a 6-way side valve, and a self-priming FreeFlo pump 12 m3/h.
The MIDI 600 / 51MID600 / filter tank is made of injection-molded thermoplastic material and welded using the most advanced welding technology. It has a transparent top lid, is equipped with a pressure gauge, and the six-way valve is located on the side of the tank. Installation and commissioning are easy. The filtration system can be connected to the pool circuit by gluing to PVC pipes as well as flexible hoses with a diameter of 50 mm.- Self-priming pump with a large pre-filter
- Monoblock designed for quiet operation
- Transparent cover for basket inspection and easy cleaning and maintenance
- Robust motor with thermal protection, motor protection IP55
- Rotating connection piece for better sealing and greater installation flexibility
- 50 mm connection - inner diameter
Package Contents
- MIDI 500 filter tank
- Pump FreeFlo 12 m3/h - 230V, 0.75 kW
- IPS6103 six-way valve - Side six-way valve for pressure tanks MIDI, Lisboa, Nilo, Bilbao and Cantabric - 1 1/2’’ connection
- Czech description for the 6-way valve
- Pressure gauge
- Instruction manual
Technical Parameters
- Filter diameter: 500 mm
- Filter area: 0.196 m2
- Filtration capacity: 12 m3/h
- Power input: 0.75 kW
- Flow rate: 9 m3 / h / m2
- Voltage: 230 V
- Max. pressure: 2.5 bar
- Motor protection: IP55
- Filling quantity: 100 kg (not included with the filtration unit)
- Weight without sand: 25 kg
- Valve: six-way side
- Suction/discharge connection - glued: 50 / 50 mm
- Max. operating temperature: 35°C
Operating Principle
Water is drawn from the main drain (1) at the bottom of the pool and the skimmer (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water returns to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmer and main drain.
