Filtration unit - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Preva 75 pump, 12 m3/h, 230V, Czech description
Filtration unit - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Preva 75 pump, 12 m3/h, 230V, Czech description
Description

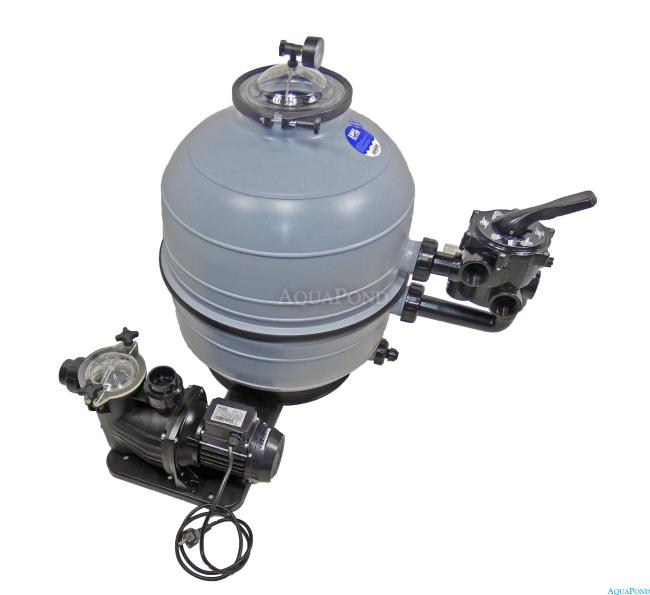

Filter tank MIDI with 6-way side valve, pressure gauge, and Preva 75 filter pump (12 m3/h). Read more
-
Filtration Unit - MIDI KIT 600, MIDI 600 filter tank, six-way side valve, Preva 75 pump, 12 m3/h, 230V, Czech description
The Kit MIDI sand filter Ø 400, 500 and 600 mm can be assembled into filtration kits. Standard delivery includes a 6-way side valve with pressure gauge. As additional equipment, you can choose the filter pump type individually for each kit – FreeFlo, Preva, Bettar, Micro Delfino. The connecting piping between the filter and the pump is not included in the package.
Package Contents
- MIDI 600 filter tank
- Pump Preva 75, 230V, 12 m3 / h, 0.55 kW
- Six-way side valve - Six-way side valve for MIDI, Lisboa, Nilo, Bilbao and Cantabric - connection 1 1/2’’
- Pressure gauge
- Base pallet for filtration
Technical Specifications
- Tank diameter: 600 mm
- Filtration capacity: 12 m3/h
- Power supply: 230 V
- Max. operating temperature: 35°C
- Valve: 6-way side valve
- Max. pressure: 1.4 bar
- Sand filling: 150 kg (not included with the filtration unit)
- Weight without sand: 28.026 kg
Operating Principle
Water is drawn from the main drain (1) at the bottom of the pool and from the skimmer (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through the return inlets (6), which are installed on the opposite side of the pool from the skimmer and main drain.
