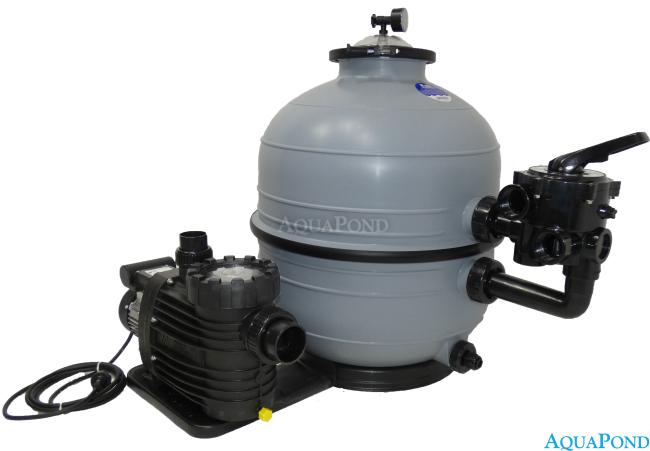

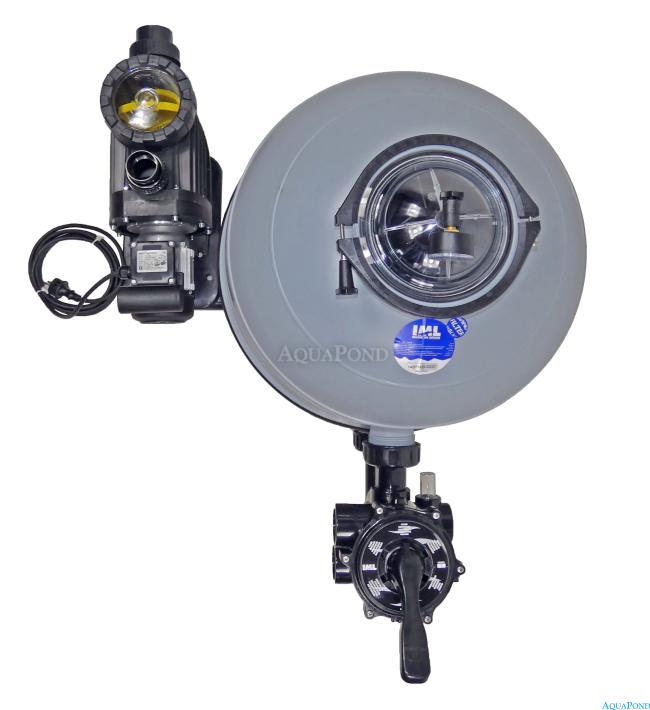

Filtration Unit - MIDI KIT 400, MIDI 400 filter tank, six-way side valve, Bettar Top S II pump 8 m3/h 230V, Czech description

The KIT MIDI 400 filtration unit can be used for water recirculation in swimming pools, ponds, spas, and whirlpools. Sand filters work on the natural principle of water filtration. Water passes through a layer of sand, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand washing position, we reverse the direction of water flow and flush the trapped dirt out to waste. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods. The KIT MIDI 400 sand filtration unit consists of a sand filter tank, a pump with a hair pre-filter, a 6-way valve, and a base (pallet). The KIT MIDI 400 filtration unit is supplied disassembled. Before connecting it to the pool, it must be assembled. Assembly and commissioning are simple. The filtration unit can be connected to the pool circuit by gluing to PVC pipes as well as flexible hoses with a diameter of 50 mm.

Package Contents

MIDI 400 filter tank
Bettar Top S II pump 8
IPS6103 six-way valve - Side six-way valve for pressure tanks MIDI, Lisboa, Nilo, Bilbao and Cantabric - 1 1/2’’ connection
Czech description for the six-way valve
Assembly and operating instructions
Pressure gauge

Technical Parameters

Tank diameter: 400 mm
Filtration capacity: 8 m³/h
Power supply: 230 V
Max. operating temperature: 35°C
Valve: 6-way side valve
Max. pressure: 1.4 bar
Sand fill: 60 kg (not included with the filtration unit)
Weight without sand: 19.776 kg

Wiring Diagram

Operating Principle

Water is drawn from the main drain (1) at the bottom of the pool and from the skimmer(s) (2) at the water surface, and is carried through separate piping with the corresponding valves (3) by the pump (4) to the sand filter (5). After filtration, the water is returned to the pool through return inlets (6), which are installed on the opposite side of the pool from the skimmer(s) and main drain.
