Electric Pool Heater Heat Pool 3 kW, 400 V
Electric Pool Heater Heat Pool 3 kW, 400 V
Description
Electric flow heaters are designed to heat water in swimming pools and hot tubs. They work by heating the water as it flows through the heating element, and the temperature of the heated water is set by ... Read more
-

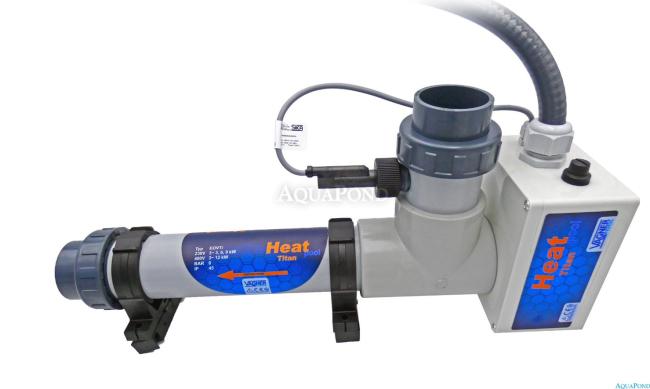

Electric Pool Heater Heat Pool 3 kW, 400V for Salt Water
Electric flow-through heaters are designed to heat water in swimming pools and hot tubs. They work by heating the water as it flows through the heating element, while the water temperature is set by a control thermostat. The heating element is switched by a contactor controlled by the thermostat mentioned above and a safety flow sensor. For this reason, the heater requires a so-called full automation system - a 24-hour pool controller, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch. The entire heating unit is made of stainless titanium material (for salt water) or plastic.
Heat Pool pool electric flow-through water heaters are specially designed for heating pool water or water in other circulation systems with flow. Each heater must be installed in the electrical system behind a residual current device. We therefore recommend complementing the unit with a suitable type of automatic control, which will reliably ensure not only the desired comfort, but also operator safety.
Use:
- For salt water in the pool
- For heating indoor and outdoor pools
- For heating hot tubs
Package Contents
- Plastic heating body
- Thermal fuse against overheating
- Flow flap against dry running
- Internal titanium heating coil
- Flexible connecting hose with connecting cables
- 2 PVC 50 mm connection fittings
- 2 wall brackets
- Control box with digital thermostat and contactor

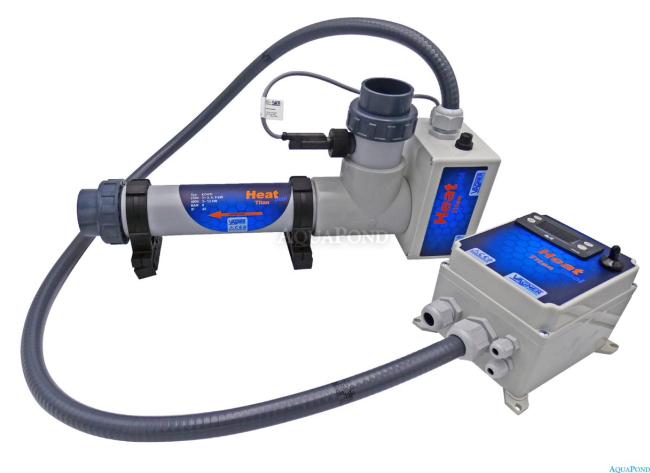

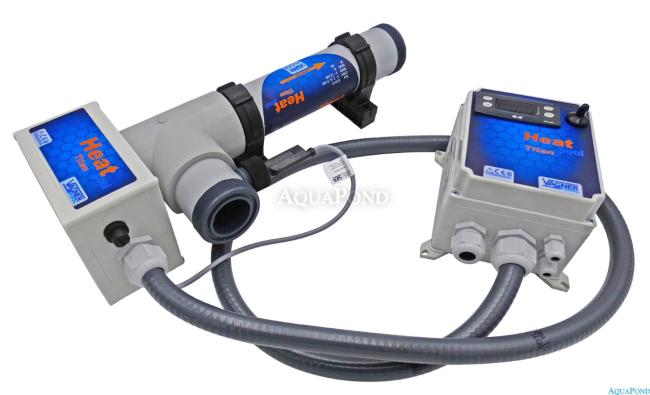

Separate Control Box
with ThermostatThermostat display and switching contactor are located
in a separate control box, which is connected
to the heating element itself and a 1.5 m cable.
The digital thermostat continuously displays the current
water temperature.
Pressing the SET button will display the set water temperature for a few seconds.
How the Electric Heater Works
When heating is started, electrical energy is consumed and the titanium coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns to the pool warmed.
Technical Parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with 50 mm pipe diameter
- Water quality: chloride content max. 150 mg / l
- Max chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Weight: 3.93 kg
- Supply voltage: 230 / 400 V
- Power: 3 kW
- Required protection: 16 / 10 A
- Digital display: Yes
-
