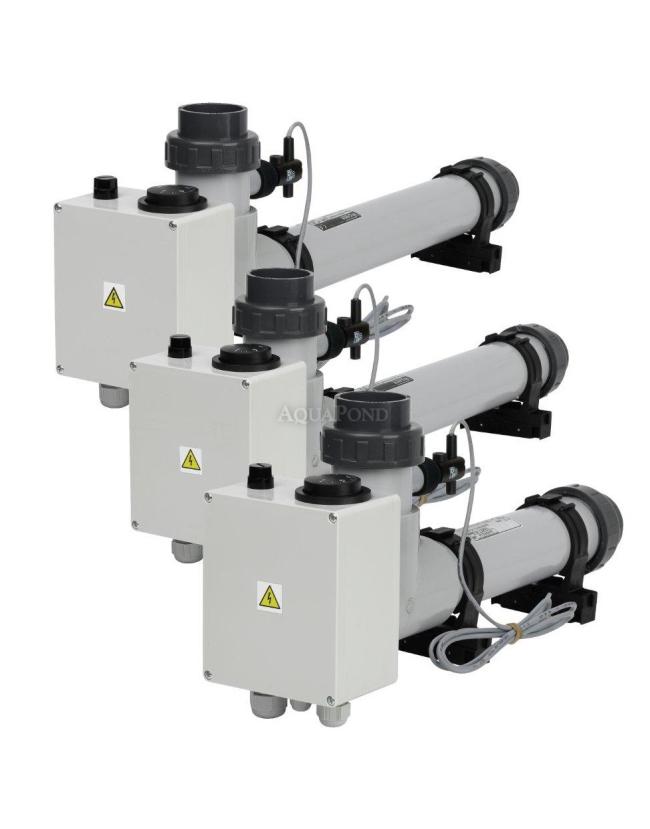

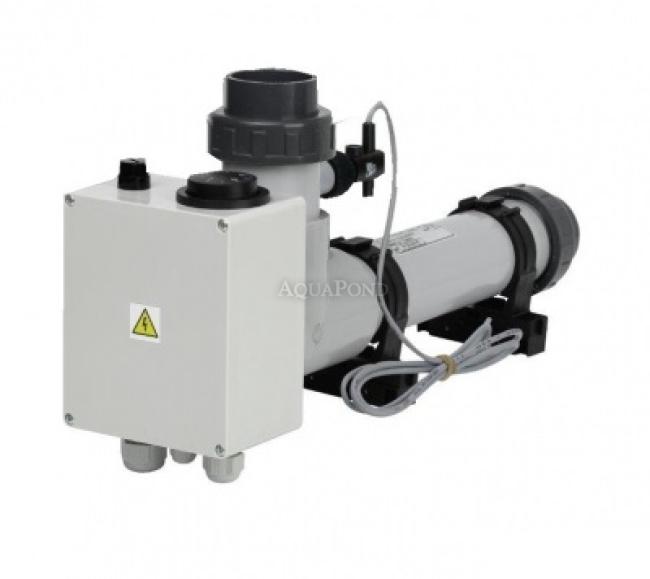

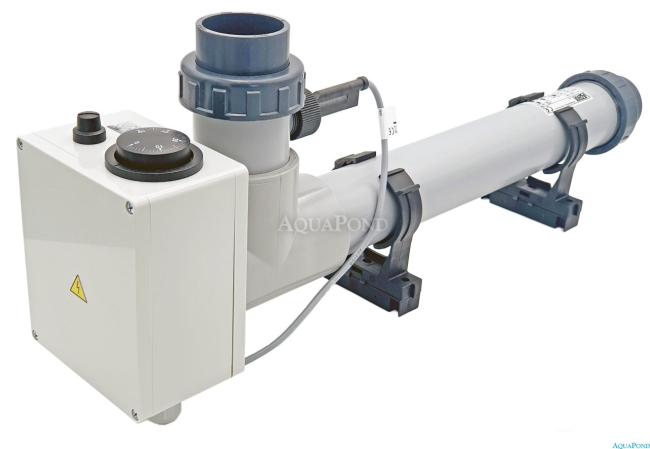

Electric heater EOVTi - 6, 6 kW, 3 x 230 V, Titanium with electric flow flap
Electric heater EOVTi - 6, 6 kW, 3 x 230 V, Titanium with electric flow flap
Description
Electric flow heaters are designed for heating water in swimming pools and hot tubs. Their operation is based on heating the water as it flows through the heating element, and the temperature of the heated ... Read more
-
Electric Heater EOVTi - 6.6 kW, 3 x 230 V, Titanium with Electric Flow Switch
Electric flow heaters are designed for heating water in swimming pools and hot tubs. They work by heating the water as it flows through the heating element, with the water temperature set by a control thermostat. The heating element is switched by a contactor, which is controlled by the thermostat and the flow safety switch mentioned above. For this reason, the heater requires so-called “large automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heater switch. The entire heating unit is made of stainless titanium material (for salt water) or plastic.
EOVTi pool electric flow heaters are specially designed for heating pool water or water in other circulation systems with flow and temperatures up to 40°C. Each heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control.
Every EOVTi Electric Heater
- converts electrical energy into heat energy
- is made of high-quality PVC
- is fitted with a titanium heating cartridge. Titanium is one of the best available materials for corrosion resistance.
- is 100% leak-tested
- this type of heater is suitable for abnormal stress and higher chlorine concentration. It can be used in combination with any water treatment system, especially electrochemical salt chlorinators, etc.
- is equipped with a thermostat up to 40°C and a thermal fuse
- is equipped with a flow switch that monitors water flow
- is equipped with 2 brackets for easy mounting
Use
- For heating indoor and outdoor pools
- For heating hot tubs
- For chlorinated water
Package Contents
- Plastic heater body
- Rotary thermostat for regulating water temperature up to 40°C
- Flow switch against dry running

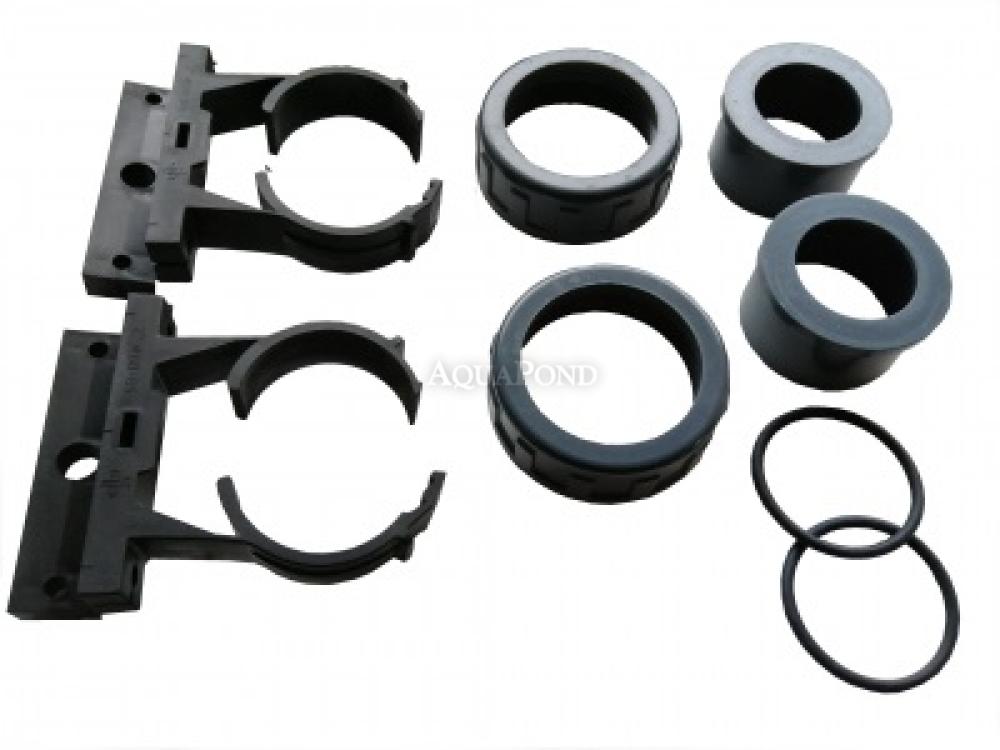

- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
- 2 seals
- Instructions
Package Contents
- Plastic heater body
- Internal electric heating coil
- Rotary thermostat for regulating water temperature up to 40°C
- Thermal fuse against heater overheating
- Flow switch against dry running
- 2 pieces of PVC 50 mm connecting fittings
- 2 wall brackets
Principle of Operation of the Electric Heater
When the heater is switched on, electrical energy is consumed and the coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns warmed back to the pool.

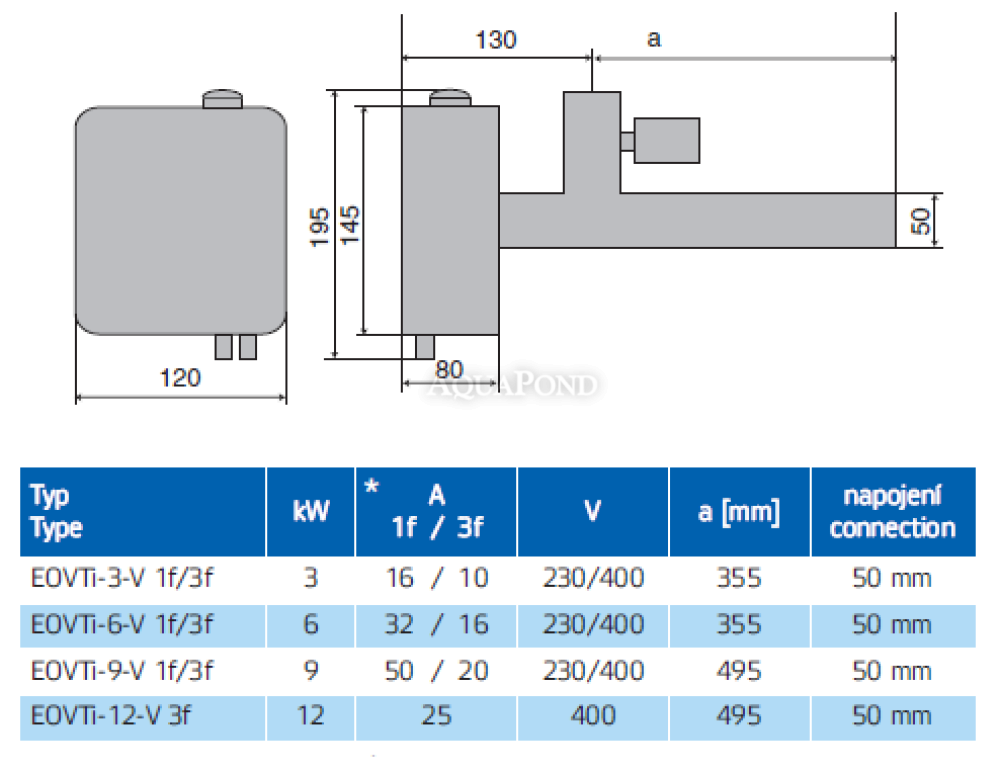

Technical Specifications
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with 50 mm pipe diameter
- Water quality: chloride content max. 150 mg / l
- Max. chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 3.45 kg
- Supply voltage: 230 / 400 V
- Power: 6 kW
- Required protection: 16 A
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for the EOVTi electric heater - 6.6 kW, 3 x 230 V, titanium with electric flow switch
-
