Electric heater EOVnTi-3, 3 kW, 230 V, Titanium for above-ground pools

Description

EOVnTi, this flow-through heater is designed for heating water in above-ground pools. Read more

Product code: 5801603

Description
Related products

Electric Heater EOVnTi-3, 3 kW, 230 V, Titanium for Above-Ground Pools

Electric flow-through heaters are designed to heat water in pools and hot tubs. They work by heating the water as it passes through the heating element, with the water temperature controlled by an adjustable thermostat. The heating element is switched by a contactor, which is controlled by the thermostat and a safety flow sensor. For this reason, the heater requires so-called “full automation” - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor, and heating switch. The entire heating unit is made of stainless titanium material (for salt water) or plastic.

The pool electric flow-through water heater EOVnTi is specially designed for heating pool water or water in other circulation systems with a flow rate and temperature up to 40°C. Each heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control, which will reliably ensure not only the desired comfort, but also operator safety.

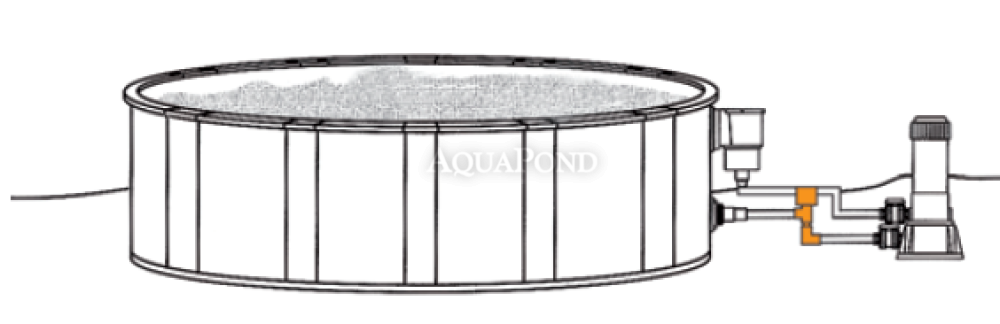

EOVnTi - this flow-through heater is designed for heating water in above-ground pools.

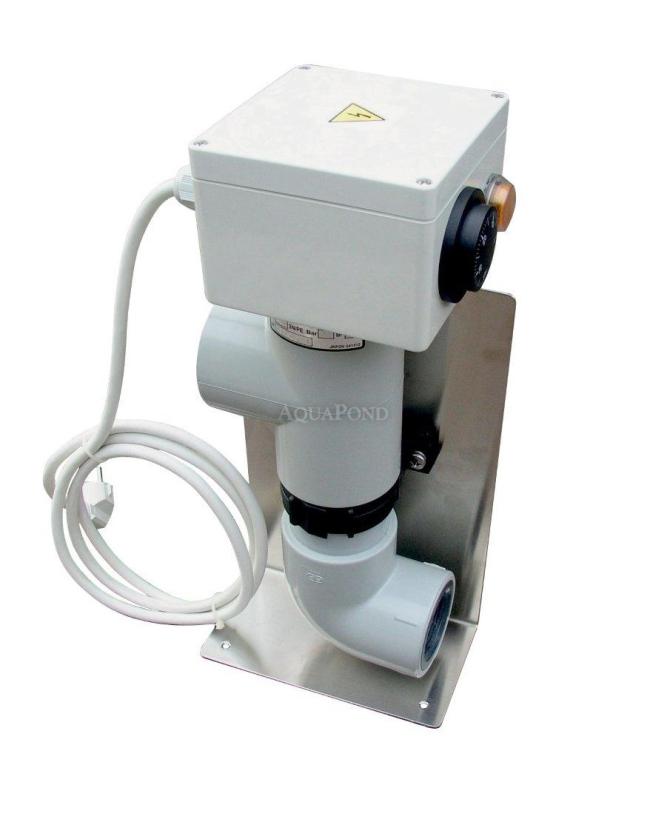

The heater itself is mounted on a stainless steel stand, which ensures a stable position after anchoring.
The heater body is made of high-temperature-resistant plastic and the heating cartridge is made of titanium.
Temperature regulation is provided by a thermostat up to 40°C, and the unit is additionally protected by a thermal fuse.
The heater is equipped with a flex cord for connection to a 230 V socket behind a residual current device.
Connection to the water circuit via 38 mm hose barbs, or with a 1.5" thread.
Each heater is leak-tested.

Package Contents

Plastic heating body
Metal support frame
Internal titanium heating coil
Rotary thermostat for regulating water temperature up to 40°C
Thermal fuse against overheating
2 hose connectors for 38 mm hoses
2 hose clamps
Power cable

Use:

For salt water in the pool
For heating indoor and outdoor pools

How the Electric Heater Works

When the heater is switched on, electrical energy is consumed and the titanium coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns to the pool warmed up.
