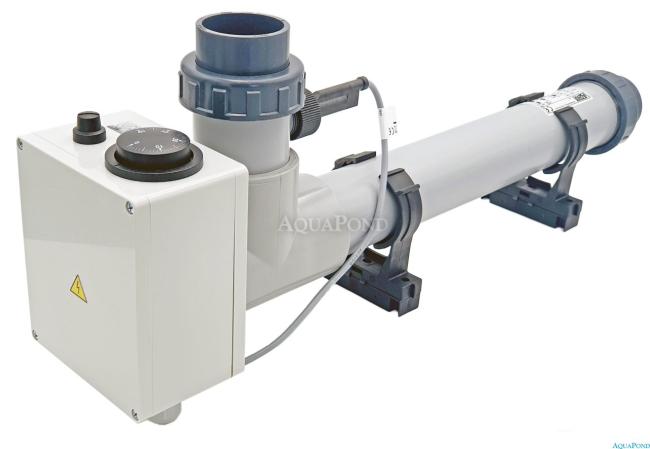

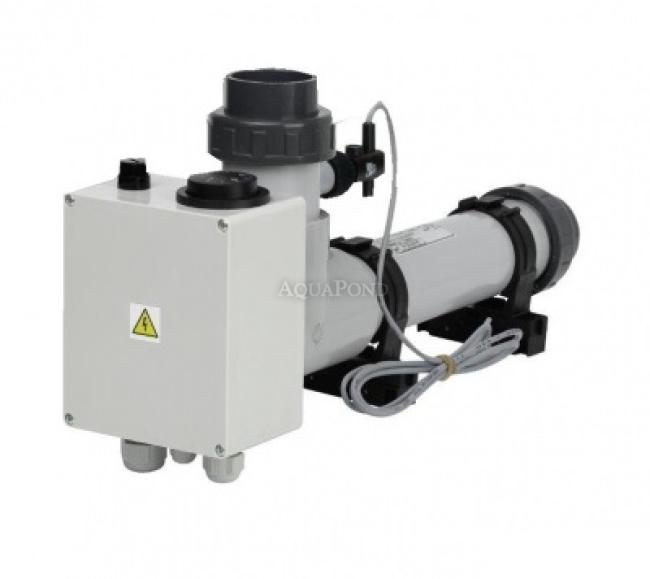

Electric heater EOVTi - 3, 3 kW, 3 x 230 V, Titanium with electric flow flap
Electric heater EOVTi - 3, 3 kW, 3 x 230 V, Titanium with electric flow flap
Description
Electric flow heaters are designed for heating water in swimming pools and hot tubs. They work by heating the water as it flows through the heating element, and the temperature of the heated water is set ... Read more
-
Electric Heater EOVTi - 3.3 kW, 3 x 230 V, Titanium with Electric Flow Flap
Electric flow heaters are designed for heating water in swimming pools and hot tubs. They work by heating the water as it flows through the heating element, with the water temperature set by a control thermostat. The heating element is switched by a contactor, which is controlled by the above-mentioned thermostat and a safety flow sensor. For this reason, the heater requires so-called full automation - a 24-hour filtration timer, residual current device (protection against dangerous touch voltage), motor thermal protection, contactor and heater switch. The entire heating unit is made of stainless titanium material (for salt water) or plastic.
EOVTi pool electric flow water heaters are specially designed in their construction for heating pool water, or water in other water circuits with flow and temperatures up to 40°C. Each heater must be installed in the electrical system behind a residual current device. We therefore recommend supplementing the unit with a suitable type of automatic control.
Each EOVTi electric heater
- converts electrical energy into heat energy
- is made of high-quality PVC
- is fitted with a titanium heating cartridge. Titanium is one of the best available materials for corrosion resistance.
- is 100% leak tested
- this type of heater is suitable for abnormal stress and higher chlorine concentration. It can be used in combination with any water treatment system, especially electrochemical salt chlorinators, etc.
- is equipped with a thermostat up to 40°C and a thermal fuse
- is equipped with a flow switch that monitors water flow
- is equipped with 2 brackets for easy mounting
Use
- For heating indoor and outdoor pools
- For heating hot tubs
- For chlorinated water
Package contents
- Plastic heater body
- Rotary thermostat for regulating water temperature up to 40°C
- Flow flap against dry running
- 2 pieces of PVC 50 mm connection fittings
- 2 wall brackets
- 2 seals
- Manual
Principle of operation of the electric heater
When the heater is switched on, electrical energy is consumed and
the coil built into the long tube begins to generate heat.
The flowing water from the pool absorbs this heat and returns heated back into the pool.

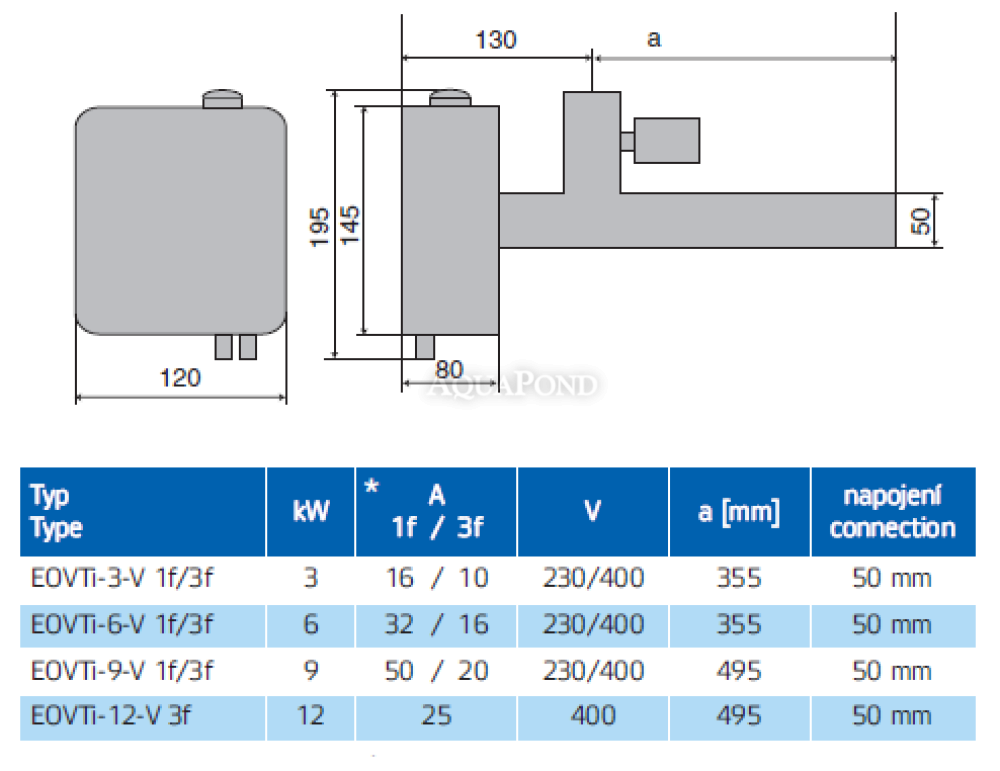

Technical parameters
- Minimum water flow: 4 m3 / h
- Operating pressure: 0-3 bar
- Connection: to a water circuit with a pipe diameter of 50 mm
- Water quality: chloride content max. 150 mg / l
- Max chlorine content: 1 mg / l
- pH range: 7.0-7.8
- Operating temperature: 5 ~ 40 °C
- Weight: 3.35 kg
- Power supply voltage: 230 / 400 V
- Power: 3 kW
- Required protection: 16 A
List of spare parts
The complete list of spare parts can be found here:
Spare parts for electric heater EOVTi-3, 3 kW, 3 x 230 V, titanium with electric flow flap
-
