Counter-current VAG-JET for prefabricated pools - 66 m³/h, 400 V, 2.2 kW


Counter-current VAG-JET for prefabricated pools - 66 m³/h, 400 V, 2.2 kW

Description

Counter-current Vag-Jet for pre-fabricated pools. Read more
Product code: 30120513

  • Counter-Current VAG-JET for Pre-formed Pools - 66 m3 / h, 400 V, 2.2 kW

    The VAG-JET counter-current unit is a standard-design, standard-performance system. VAG-JET is very easy to operate, with adjustable air intake and electro-pneumatic switching directly from the pool. The 40 mm nozzle is spherical and can be adjusted in direction. The entire unit is made of non-corrosive materials. VAG-JET is manufactured in accordance with European standards and has a CE certificate. The pump motor has IP55 insulation class, and the electro-pneumatic switching has IP65 protection.

    The VAG-JET counter-current unit includes:

    • spherical counter-current nozzle, 40 mm diameter, with water suction
    • electro-pneumatic switching including motor protection
    • air intake
    • fittings for connection - 2x ball valve + fittings and piping, prepared (cut to exact lengths) for gluing
    • 66 m3 / h pump

    This counter-current unit is suitable for all types of pools, and depending on the version, it is available for pre-formed pools, liner pools, or concrete pools, with different equipment. The entire VAG-JET system is ready for easy installation and comes fully packed in a carton.

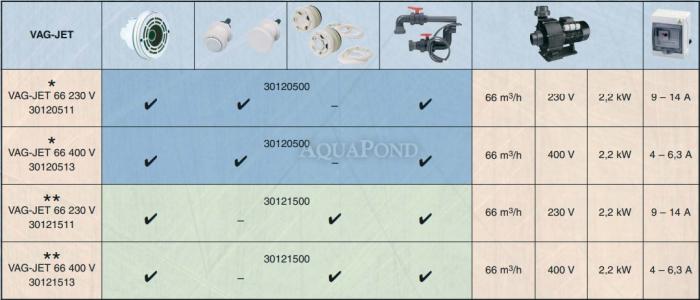

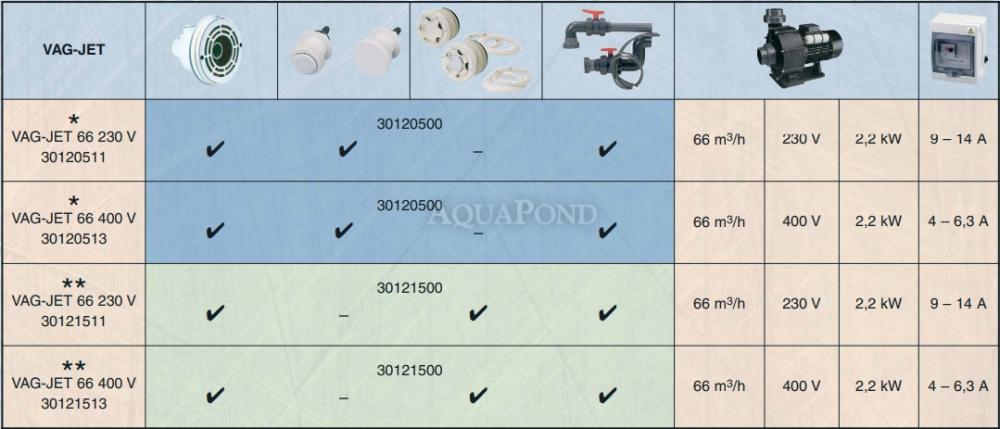

    VAG-JET can also be supplied in separate parts, as follows:

    • Pre-assembled set includes - nozzle head, passages for pneumatic switching and air intake, 2 ball valves, and all piping
    • Second part of the pre-assembled set - pump and electro-pneumatic control incl. pump protection
    Included in the complete VAG-JET counter-current system

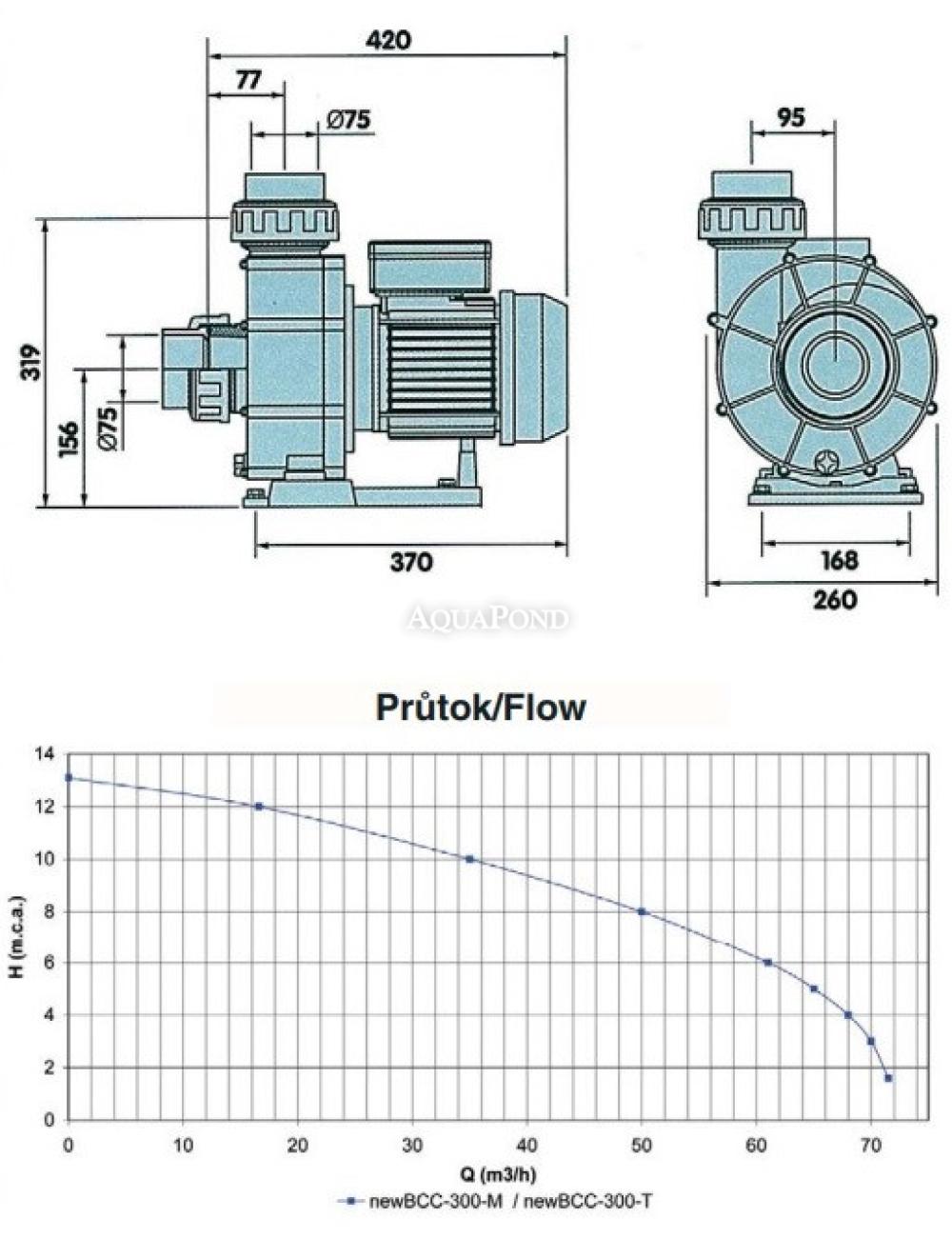

    Technical Specifications

    • Max. flow rate: 66 m3 / h
    • Voltage: 400 V
    • Power: 2.2 kW
    • Nozzle: adjustable 40 mm
    • Input power: 2.6 kW
    • Connection Ø 75 mm

    Spare Parts List



    The complete spare parts list can be found here:



    Spare parts for counter-current head with 40 mm nozzle and water suction – VAG-JET



    Spare parts New BCC 300T - 66m3/h - 400V
