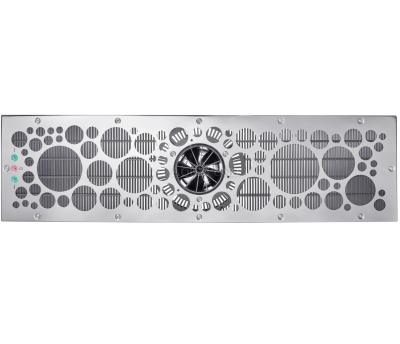

Counter-current inlet Speck BaduJet Turbo Pro + fitting, Design 2


Counter-current inlet Speck BaduJet Turbo Pro + fitting, Design 2

Description

BaduJet Turbo Pro is a top-of-the-line counter-current system that can turn any pool into a professional training and relaxation environment. Read more
Product code: 3012325120

  • Speck BaduJet Turbo Pro Counter-Current Front Panel + Through-Wall Fitting, Design 2

    BaduJet Turbo Pro is a top-of-the-line counter-current system that can turn any pool into a professional training and relaxation environment. This product is designed for demanding users looking for a combination of high performance, comfort, safety, and elegant design. It makes it possible to carry out various workouts, rehabilitation exercises, or simply enjoy relaxing in the water with a stable and even current. It can be installed in any pool with a wall thickness of up to 7 mm (except round pools).

    Benefits:

    • High water flow and adjustable current: With a maximum flow rate of up to 350 m3 / h, the system delivers a strong and stable water current, ideal for intensive training or relaxed swimming. The current intensity can be easily adjusted according to the user’s individual needs.
    • Quiet and energy-efficient motor: The permanent magnet motor ensures exceptionally quiet operation and low energy consumption, allowing long-term use without noise and unnecessary costs.
    • Easy and flexible installation: The system is mounted directly into the pool wall, without the need for complex piping. The motor and components are easily accessible for maintenance and servicing, extending the service life of the unit.
    • Intuitive control: The counter-current can be controlled using a piezo button or remote control, allowing convenient adjustment of performance directly in the water without having to leave the pool.
    • Safety and durability: The motor housing with IP65 certification provides protection against dust and splashing water, ensuring long-term reliability and safe use.
    • Elegant design: The stainless steel front panel in Design 2 style gives the system a modern and stylish look that harmoniously complements any pool and enhances its aesthetic value.
    • Universal use: The product is suitable for recreational swimmers, professional athletes, children, and seniors who want to improve fitness, coordination, or take part in rehabilitation exercises in the water.

    Materials used

    • Main cover ABS
    • Nozzle cover ABS
    • Covers ABS/stainless steel
    • Intermediate flange PPE
    • Drive unit PPE / PP / stainless steel
    • Sliding bearing SiC / SiC
    • Screws stainless steel

    Package contents

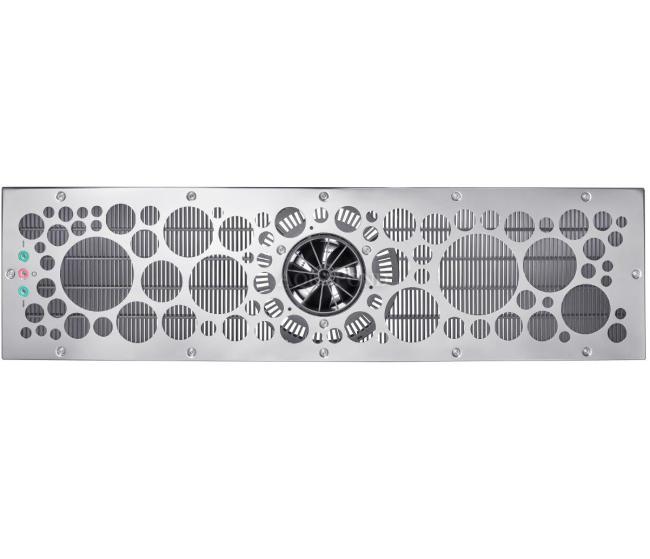

    • Stainless steel front panel Design 2
    • Suction cover
    • Piezo buttons
    • Impeller unit
    • Nozzle unit
    • Mounting screws
    • Seals
    • Manual

    The BaduJet Turbo Pro counter-current motor is not included in the package and must be purchased separately.


    Technical parameters

    Frequency converter:

    • Power: 4 kW
    • Mains voltage: 3~ 380 - 480 V
    • Weight: 6 kg
    • Ambient temperature range with enclosed drive: -20 - +40 °C
    • Storage ambient temperature range: -40 - +60 °C
    • Maximum installation height: 2000 m; Derating above 1000 m: 1% / 100 m
    • Maximum humidity: 95%, non-condensing

    Drive unit:

    • Flow rate: 150 - 350 m3 / h
    • Input power P1: 3.6 kW
    • Output power P2: 3 kW
    • Number of nozzles: 1x Ø 172 mm
    • Impeller (diameter): 195 mm
    • Motor protection rating: IP65
    • Outlet speed: 1.80 - 4.10 m / s
    • The nozzle can be rotated in all directions: ± 5 degrees
    • Weight: 51.5 kg
