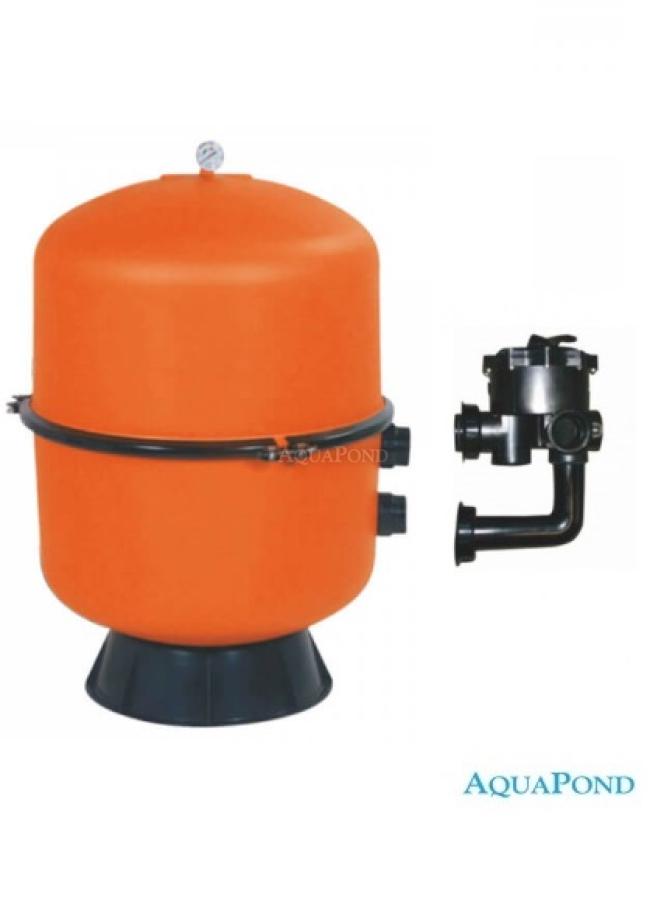

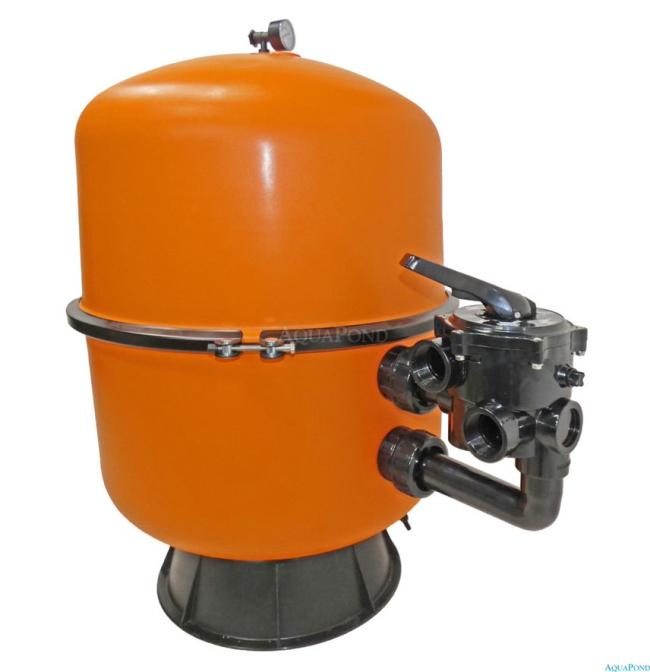

Split filtration tank Bilbao 600, 14 m3/h
Split filtration tank Bilbao 600, 14 m3/h
Description
Split polypropylene filter tank 600 mm with 6-way side valve. Read more
-
Split Filter Tank Bilbao 600, 14 m3 / h
Bilbao 600 sand filter suitable for above-ground and in-ground pools up to 60 m3. The Bilbao filter features a split sand tank. The split tank allows for faster and easier sand replacement than filters with a top-mounted valve. In addition, when replacing the sand media, there is no risk of accidental damage to the filter’s internal piping. Bilbao filter tanks are manufactured by plastic injection molding, which ensures high wall strength. The tanks are highly resistant to internal pressure as well as to the chemicals used for pool maintenance. In terms of material quality, workmanship, and service life, Bilbao filters rank among the best pool filters on the market. There are only a few sand filters that still operate like new after twenty years without any complaints. Easy installation and commissioning. Can be connected to pool PVC pipes as well as 50 mm flex hoses.
Filtration
Filtration is part of the overall treatment of pool water. This means that the filtration unit alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.
Package Contents
- tank
- air release valve

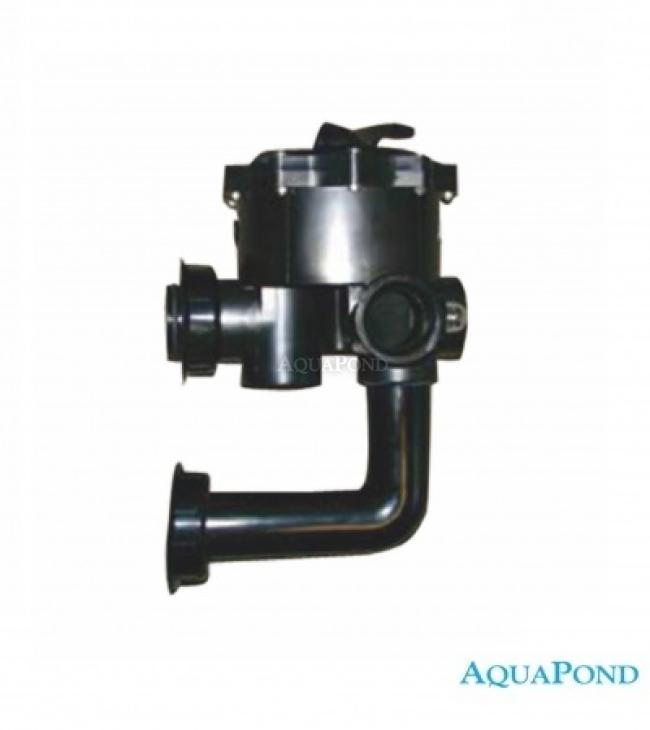

- side 6-way valve
- pressure gauge
Filtration Principle
Water is drawn by the pump from the bottom of the pool through the pool drain (1) and from the surface through the skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then pushed back into the pool through the return jets (6). The jets are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand media that traps insoluble impurities present in the water. After a certain period of filtration, the sand becomes clogged and water can no longer pass through it easily. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by directing water into the filter in the opposite direction to the filtration process.
Technical Specifications
- Tank material: Polypropylene
- Media quantity: 125 kg
- Tank diameter: 600 mm
- Filtration capacity: 14 m3 / h
- Connection (int.): 1 1/2 "in, 50 mm
- Filter for pools up to 60 m3
- Valve type: 6-way side

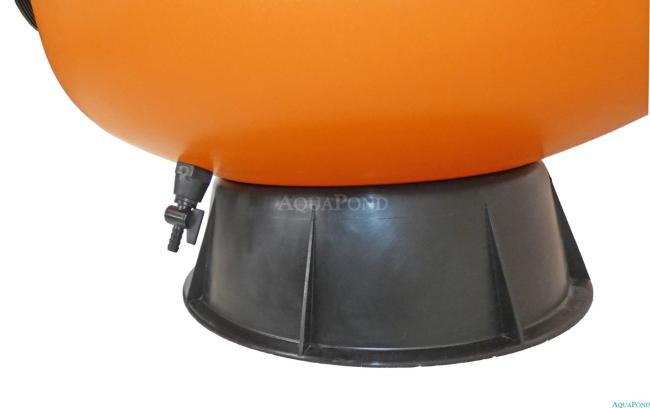

- Base: Yes
- For salt water up to 5 g / l (<0.5%): Yes
- For salt water above 5 g / l (>0.5%): Yes
Spare Parts List
You can find the complete list of spare parts here:
Spare parts for Bilbao 600 split filter tank
-
