PC DYNAMICS Poolcare - OXA/pH measurement/control + 2x EASY, multi-parameter dosing station


PC DYNAMICS Poolcare - OXA/pH measurement/control + 2x EASY, multi-parameter dosing station

Description

Multi-parameter dosing station Read more
Product code: D013354092

  • PC DYNAMICS Poolcare - OXA/pH measurement/control + 2x EASY, multi-parameter dosing station

    PCD POOLCARE
    A range of automatic POOLCARE stations designed for family and semi-public pools that want to use chlorine-free water treatment with active oxygen.

    Option to control the filtration pump and heating regulation

    An easy-to-set multi-parameter dosing unit with a clear display and a measuring cell fitted with measuring probes. The professional measuring system is housed in a protective box and is designed for private, public, and semi-public pools.

    A microprocessor-controlled measuring and control unit for disinfection and pH. Disinfection can be selected as chlorine-based (redox) or chlorine-free in the form of Poolcare active oxygen (time control). The system can also be equipped with an additional module and a potentiostatic probe for direct measurement of free chlorine or Poolcare active oxygen.

    View of the station without the front cover

    pH – Measures and doses pH (0.00–14.00 pH)
    OXA – Measures and doses active oxygen
    TMP – Measures temperature
    FLOC – Time-controlled flocculant dosing

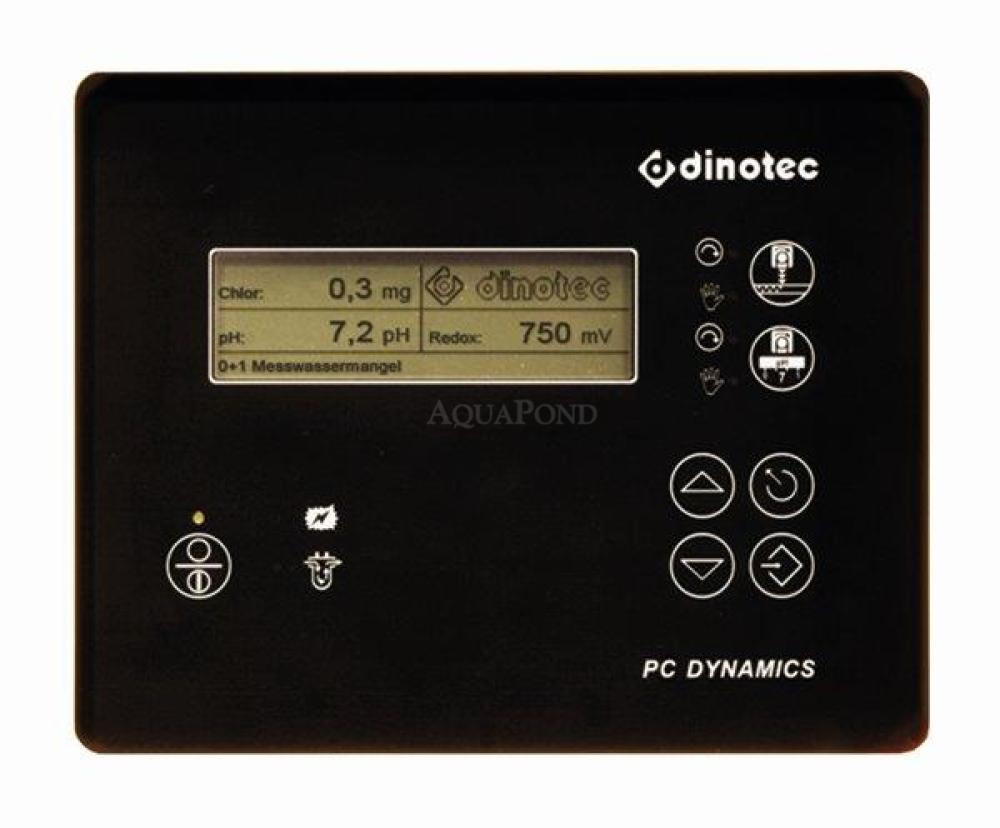

    All models feature a backlit, large-format graphic display with intuitive operation.


    The station offers the option of single-point or two-point calibration of the measured parameters. Password protection and clear on-screen notifications for operating, warning, and alarm states are standard.


    Technical specifications

    Power supply 230 V/50 Hz
    Protection rating IP65
    Temperature compensation Yes
    Control type

    Proportional pulse
    Frequency pulse
    Time
    On/Off
    Dosing pumps Dinodos Easy / Start / DDE
    Outputs 6x Digital + 2x Analog
    Communication interface    ModBus RS485, DinotecNET



    This station is supplied with two DINODOS EASY pumps

    The PC Dynamics station can be controlled via smartphone

    • Bluetooth connection
    • Remote overview of water parameters on a smartphone via the “dinoAccess” app for Android
    • Option to color-code alarm values
    • Ideal for installations with a hard-to-access plant room

    Advantages of the PCD station:

    • Easy installation, intuitive operation
    • Accurate continuous measurement
    • Calibration possible using calibration solutions
    • ASR system (self-cleaning mode for the active oxygen/free chlorine probe)
    • Cell equipped with a flow sensor
    • Automatic measurement compensation based on flow rate
    • Automatic delayed dosing
    • Safety automatic pump shutdown in case of continuous operation
    • PC communication incl. measurement data logging

    Technical specifications

    • Product type: Multi-parameter dosing station
    • Protection rating: IP65
    • Measured parameters: OXA/pH
    • Digital display: Large-format graphic
    • Power supply: 230 V AC

    Logistics
    Weight: 13.6 kg
