Dosing Station VA DOS BASIC OXY - pH + Aquablanc
Dosing Station VA DOS BASIC OXY - pH + Aquablanc
Description
Simple and affordable range of VA DOS BASIC automatic dosing stations, designed for family pools with both fresh and salt water. Read more
Product code: 9202068NK
-

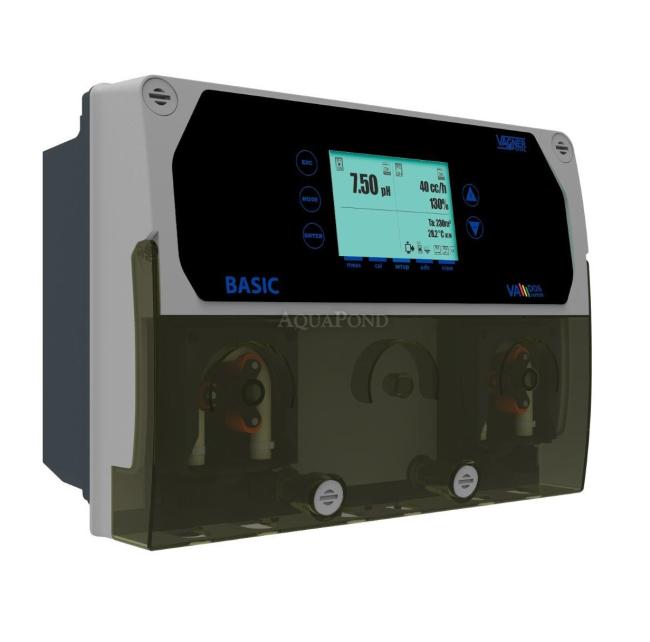

VA DOS BASIC OXY Dosing Station - pH + Aquablanc
A simple and affordable range of VA DOS BASIC automatic dosing stations, designed for family pools with both fresh and salt water. Easily adjustable multi-parameter unit in a compact design with display, measuring probes and drilling fittings for easy installation into existing piping systems. These automatic systems stand out for their easy installation and operation, as well as accurate measurement.
Operating protection:
- OFA alarm (OverFeedAlarm - overdosage protection)
- Galvanically isolated measurement inputs
- Flow monitoring - not included
- Chemical level monitoring - not included
pH dosing mode:
- ON / OFF
- Timed (5 - 3600 s)
- Proportional (based on measured values)
Active oxygen dosing mode:
- ON / OFF
- Timed (5 - 3600 s)
The VA DOS OXY pH + Aquablanc station package includes pH measurement and control accessories
pH measurement and control accessories
- 2x drilling fitting
- pH probe
- probe holder
- calibration solutions (4/7)
- injection valve
- reducer for injection valve
Schematic example of the hydraulic connection of the VA DOS OXY pH + Aquablanc station
Technical parameters
- Product type: Dosing station
- Power supply: 230 V AC
- Pump flow rate: 0.5 - 1.5 l/h
- Protection rating: IP65
- Measured parameter: pH
- Easy installation: Yes
- Power input: 20 W
- Warranty: 2 years
- Digital display: Yes
- Expandable: Yes
Spare parts list
The complete spare parts list can be found here:
Spare parts for the VA DOS BASIC OXY dosing station - pH + Aquablanc
-
