Aseko Asin Aqua Home Pro Oxy Dosing Station

Description

Asin Aqua Home Pro Oxy is a dosing and control unit designed for chlorine-free treatment of pool water using active oxygen. Read more

Product code: AK134503

Description
Related products

Aseko Dosing Station Asin Aqua Home Pro Oxy

Asin Aqua Home Pro Oxy is a dosing and control unit designed for chlorine-free pool water treatment using active oxygen. The system ensures precise pH regulation and controlled dosing of Oxy Pure disinfectant. Stable water parameters are maintained by integrated peristaltic pumps controlled by an advanced dosing algorithm with safety functions. The device is equipped with Pool Technology Management features for maximum automation of pool technology.

Pool Water Treatment

Time-controlled dosing of OXY Pure disinfectant
Automatic pH regulation using a pH probe
Time-controlled dosing of algaecide
Continuous slow dosing of flocculant (FLOC+C)

Pool Technology Control

Control of variable-speed circulation pump
Intelligent water heating control
Automatic filter backwash
Automatic switching of water suction (overflow / bottom drain)
Accurate water level measurement using a pressure sensor and automatic water top-up
Detection of pool cover position and movement
Advanced integrated safety functions
Winter mode for water maintenance during the cold months
Solar heating control
Filter pressure monitoring
Output for PP60 pump for automatic filter disinfection during backwash
Signal input from photovoltaic system and automatic use of energy surpluses
Integrated relay for lighting control with the option to expand by up to four additional relays
DMX protocol support for controlling RGB lights

ASEKO Cloud Services

Using the Aseko LIVE mobile app and the aseko.cloud web platform, you get access to up-to-date information about your pool’s status and maintenance in real time. Remote system control is possible via the Aseko REMOTE mobile app.

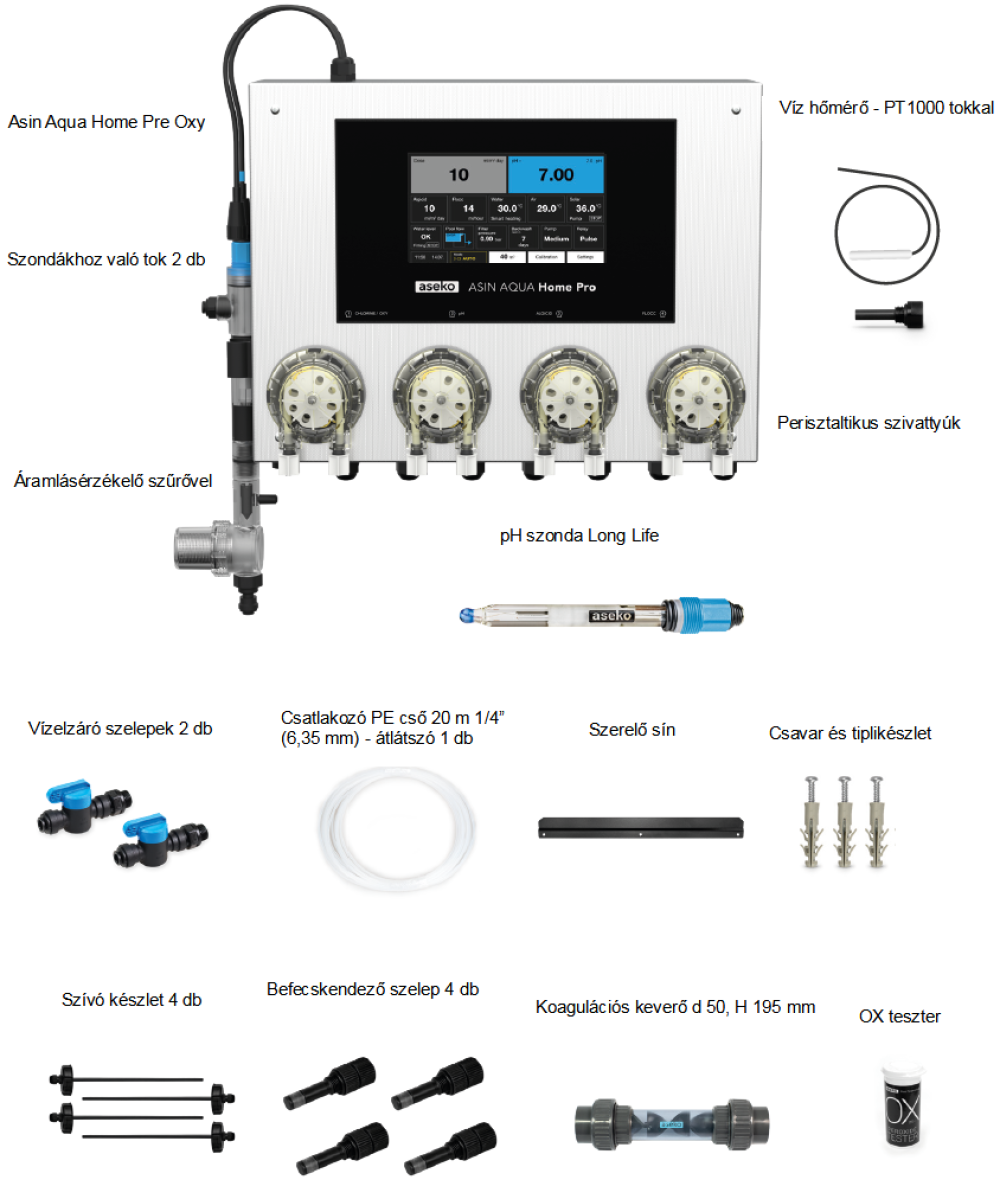

Package Contents

Long Life pH probe
OX tester, 25 pcs
Coagulation mixer d 50, L 195 mm
Probe housing, 2 pcs
Electronic flow detector with filter (speed fit), 1 pc
Replacement cartridge for PP60 and PP10 peristaltic pump, 1 pc
Water thermometer - PT1000 with housing (supported on units manufactured from 2021) 1 pc
Suction set, 4 pcs
Shut-off valve G1/4" - for 1/4" tubing, 2 pcs
Injection valve, 4 pcs
Connecting tubing - 1/4" (6.35 mm) - 20 m - transparent, 1 pc
Mounting rail, 1 pc
Screw and wall plug set, 1 pc

Technical Specifications

Dimensions: 430 x 330 x 160 mm
Power supply: 230 V / 50 Hz
Power input: 24 VA
Fuses: T1 A; T6.3 A
Overvoltage category: II
Protection rating: IP40
Climate resistance: +5 to +40 °C
Installation: wall-mounted
Measured water pressure: max. 1 bar / negative pressure not allowed
Weight: 6.7 kg

Internet Connection

Aseko Live App

Clear monitoring of water quality, temperature, and device status
Tracking of chemical consumption
Automatic alerts for low chemical levels, exceeded measurement limits (chlorine, pH), and device errors or malfunctions
Remote monitoring – access your pool data anytime
and from anywhere
Aseko Live app available for iOS and Android

https://aseko.cloud

Web application with a clear and intuitive interface for monitoring pool water quality
monitoring of water quality, temperature, and device status,
tracking of chemical consumption,
automatic alerts for low chemical levels, exceeded measurement limits (chlorine, pH), and device errors or malfunctions
Detailed, professional charts showing current status and 30-day history.
Ideal for technicians and operators of public pools – enables trend analysis, correlation overviews, and efficient remote diagnostics
Data export for hygiene and regulatory documentation in professional pool operations
Easy integration into higher-level control systems and smart homes via an open API

Aseko Remote App

Aseko Remote app for advanced remote control of pool technology
Switch between intuitive preset modes (Auto, Eco, Party, On, and Off)
Set the filtration timer directly from your smartphone
Control the water flow direction – choose between overflow or bottom drain
Set the pump speed and optimize performance according to pool usage
Allows remote control of up to five connected components (e.g. lighting, cover, water attractions)
Supports remote start of filter backwash for easy maintenance
Invitation process for easy sharing of remote control
Aseko Remote app is available for iOS and Android
