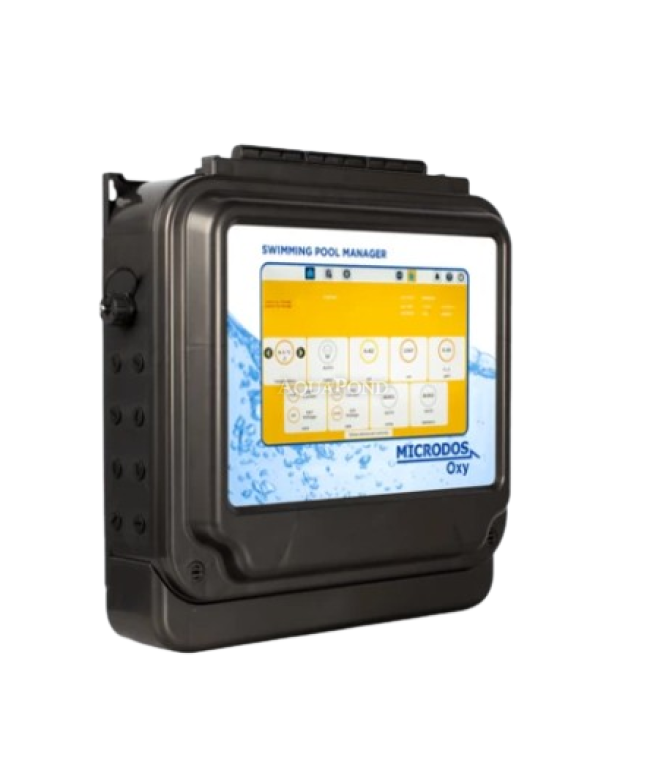

Microdos Oxy Home - complete pool management system for pools up to 125 m3, pH + Rx + Cu
Microdos Oxy Home - complete pool management system for pools up to 125 m3, pH + Rx + Cu
Description
Complete pool control system that ensures water disinfection through hydrolysis without the use of salt or chemical products. Read more-
Microdos Oxy Home - complete pool management system for pools up to 125 m3, pH + Rx + Cu
Microdos Oxy is a modern and eco-friendly solution for the automatic treatment and control of pool water. The system combines hydrolysis and ionization technology and enables comprehensive control of key pool parameters from a single control unit. Advanced hydrolysis technology uses hydroxyl ions to disinfect the water and oxidize organic substances. The system also uses copper ionization, which complements the water treatment process and helps optimize disinfection. Thanks to the combination of these technologies, Microdos Oxy offers a modern way to treat pool water with minimal need for traditional chemical treatment. The Microdos Oxy control unit allows you to monitor and regulate a wide range of pool parameters. The system can automatically control pH, ORP and chlorine levels, monitor water temperature, check the flow and level of dosing chemicals, and also control other pool technology devices. The controls are designed with an emphasis on ease of use and clear overview of the pool status. The system is equipped with a large 10" color touchscreen and allows remote monitoring and control via a mobile app. Microdos Oxy Home is suitable for users looking for a modern solution with a high level of automation and who want water treatment, parameter measurement and pool technology control integrated into one system.
Advantages
- Complete automatic treatment and control of pool water
- Modern combination of hydrolysis and copper ionization
- Automatic regulation of pH, ORP and chlorine
- 10" touchscreen and convenient control via mobile app
- Automatic control of the circulation pump, heat pump, lighting and other pool functions
Functions
- Hydrolysis: Water disinfection and oxidation of organic substances using hydroxyl ions.
- Ionization: Copper ionization supports the disinfection process and helps control microorganisms and algae.
- pH regulation: Automatic measurement and regulation of pH value using a dosing system.
- ORP regulation: Automatic measurement and regulation of oxidation-reduction potential (ORP).
- Chlorine regulation: Automatic measurement and regulation of chlorine levels using a compatible measuring and dosing system.
- Temperature: Measurement of pool water temperature using a temperature probe.
- Level probe: Monitors the level in the chemical container and automatically alerts you when the chemical is running low.
- Flow sensor: Monitors water flow in the system. If insufficient flow is detected, it automatically deactivates the relevant outputs, helping protect the equipment.
- Limescale removal system: An eco-friendly solution to reduce limescale formation using a magnetic field.
- Outputs: 2 analog mA outputs in the 0/4–20 mA range, 5 programmable outputs, and 5 potential-free relay outputs.
- Circulation pump: Automatic control of the circulation pump and monitoring of its operating status.
- Heat pump: Automatic control of the heat pump, including switching it on and off and monitoring its operating status.
- Pool cover: When the pool is covered, it allows the Oxy/Ion processes to be automatically reduced according to the system configuration.
- Lighting: Programmable switching of pool lighting on and off.
- Winter mode: Automatic circulation pump operation to protect the system against freezing and frost formation.
Package Contents
Control unit and OXY system
- 1x control unit
- 1x OXY chamber
- 1x temperature probe
- 1x temperature probe holder
Electrodes and accessories
- 2x electrode holder or
- 1x empty electrode holder
- 1x titanium electrode
- 1x titanium comb
pH kit
- 1x pH peristaltic pump
- 1x pH probe
- 1x probe holder
- 2x buffer solution (pH 7 / 9)
- 1x PVC hose
- 1x PE hose
- 1x injection valve
- 1x suction strainer
Connection accessories
- 2x reducer 75 - 63 mm
- 2x reducer 75 - 50 mm
- 6x plug
- 2x end cap
Technical Specifications
- Model: Microdos Oxy Home 125 + pH + Rx + Cu
- Recommended pool volume: up to 125 m3
- Water treatment technology: hydrolysis + copper ionization
- Number of plates in the hydrolysis cell: 5
- Cell current: 6 A
- pH dosing pump: MP2-B, 1.5 l/h
- Chlorine dosing pump: MP2-B, 3 l/h
- Power supply: 100 - 240 V AC, 50 Hz
- Control: 10" color touchscreen
- Mobile app: Android / iOS
- Protection rating: IP65
-
