Filter tank Lisboa 800 mm, flow rate 25 m3/h, with side valve
|
 |
Filter tank Lisboa 800 mm, flow rate 25 m3/h, with side valve
Description
Laminated / layered filter - 25 m3 / h, side valve. Read more
-

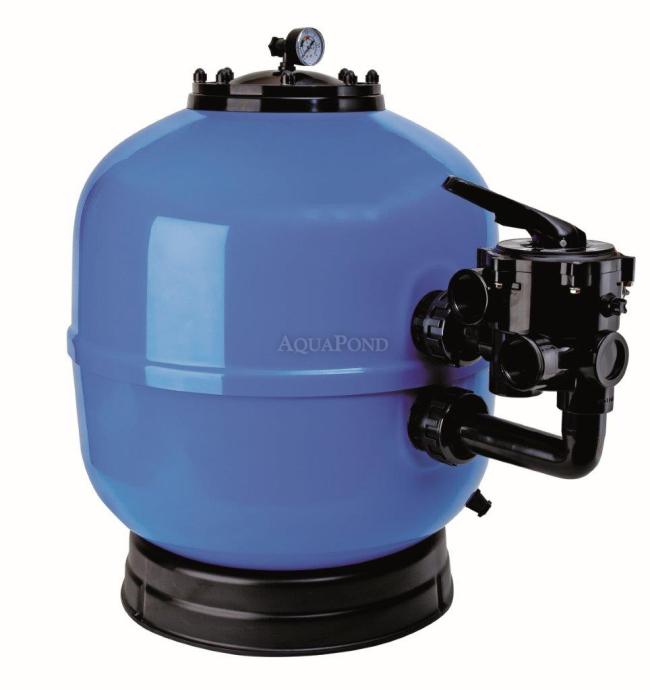

Lisboa Filter Tank 800 mm, 25 m3/h flow rate, with side valve
Made of polyester resin reinforced with fiberglass, with a glossy finish.
- High-strength polyester base
- Large-diameter plastic lid
- The filter is equipped with 1" collectors and a diffuser
- The filter is equipped with a pressure gauge, drain valve, and air release
- Equipped with a 6-way 2" valve
- Maximum operating pressure 2.5 kg/cm²
- Test pressure 3 kg/cm²

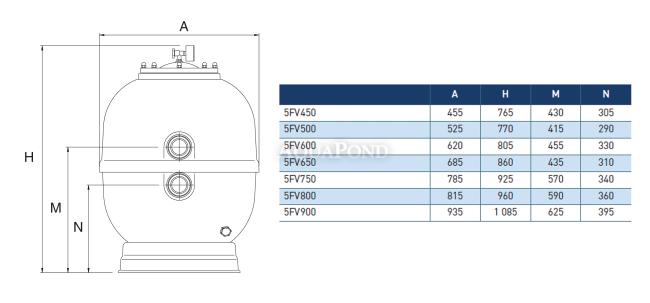

Technical Specifications
- Tank material: polyester resin reinforced with fiberglass
- Filter media quantity: 325 kg
- Tank diameter: 800 mm
- Connection: 2"
- Max. working pressure: 2.5 kg/cm2
- Flow rate: 25 m3/h
- Valve type: 6-way side
- Filtration speed: 50 m3/h/m2
- Base: Yes
- Width: 815 mm
- Height: 960 mm
- Warranty period: 2 years
- Weight: 41.4 kg
Filtration
Filtration is an essential part of overall pool water treatment. This means that the filtration unit alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment on its own is not sufficient without filtration.
Filtration Principle
Water is drawn by the pump from the bottom of the pool through the pool drain (1) and from the pool surface through skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then pushed back into the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand media bed, which traps insoluble impurities contained in the water. After a certain period of filtration, the sand becomes clogged and water can no longer pass through it easily. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by directing water into the filter in the opposite direction to the filtration process.
Spare Parts List
The complete list of spare parts can be found here:
Spare parts for multilayer internal fiberglass filter Lisboa 800 mm, 25 m3/h
-
