Filtration tank Lisboa 550 mm, flow rate 11 m3/h, without side valve
|
 |
Filtration tank Lisboa 550 mm, flow rate 11 m3/h, without side valve
Description
Laminated / layered filter - 11.5 m3 / h, without side valve. Read more
-

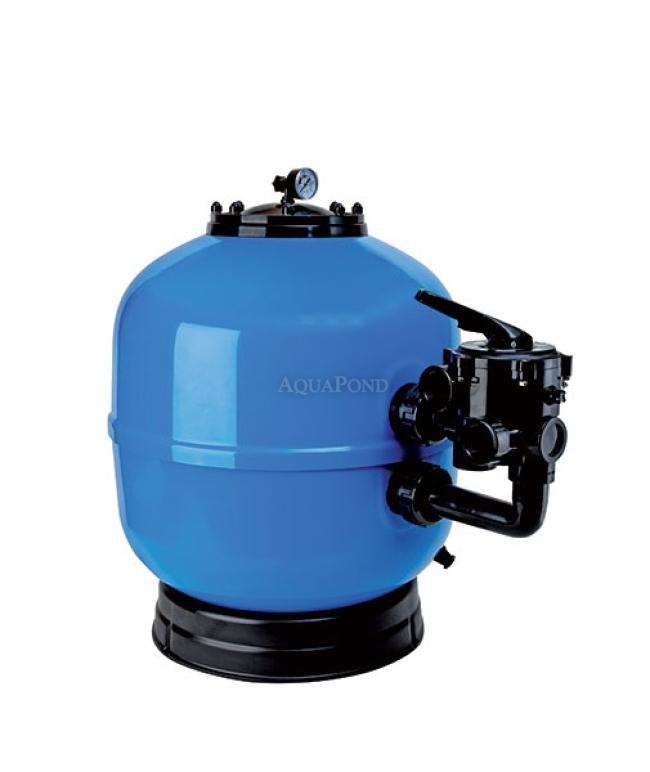

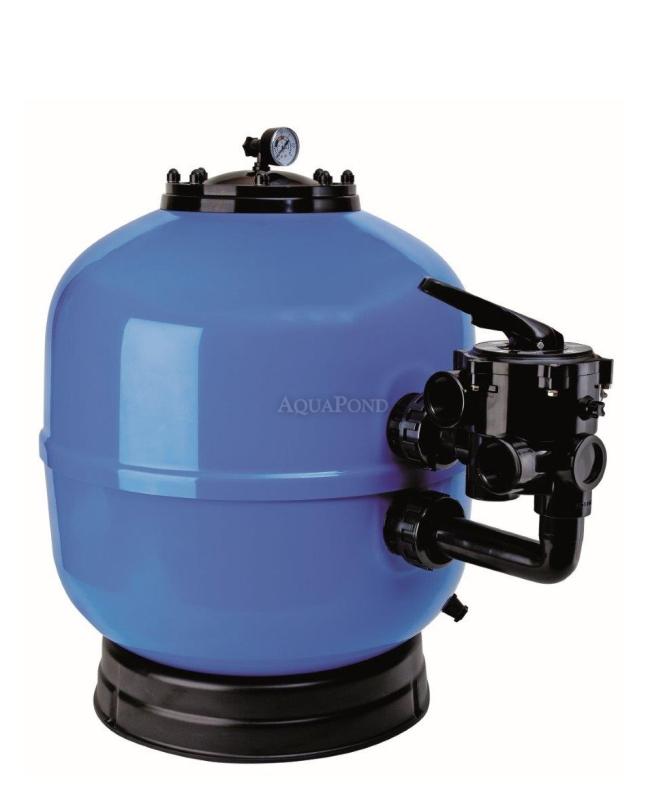

Lisboa Filter Tank 550 mm, flow rate 11 m3/h, without side valve
The Lisboa series laminated filters are made of polyester resin and fiberglass with a glossy finish.
- High-strength polyester base
- Large-diameter plastic lid
- The filter is fitted with 1" collectors and a diffuser
- The filter is equipped with a pressure gauge, drain valve, and air release
- Equipped with a 6-way valve - not included in the package
- Maximum operating pressure 2.5 kg/cm2
- Test pressure 3 kg/cm2
Filtration
Filtration is part of the overall treatment of pool water. This means that the filtration unit alone, without proper chemical water treatment, cannot ensure the required water parameters. Likewise, chemical water treatment alone is not sufficient without filtration.
Package Contents
- tank
- internal piping
- connection between tank and valve
- pressure gauge
- drain plug
How Filtration Works
Water is drawn by the pump from the bottom of the pool through the pool drain (1) and from the surface of the pool through skimmers /collectors/ (2), via the valve (3) into the filter (5), where it is cleaned. It is then pushed back into the pool through the recirculation nozzles (6). The nozzles are located on the opposite side from where the bottom drain and skimmers are installed. The filter itself contains a sand filling that traps insoluble impurities contained in the water. After a certain period of filtration, the sand becomes clogged and less permeable to water. It is therefore necessary to backwash the sand. Backwashing or rinsing is carried out by directing water into the filter in the opposite direction to the filtration process.

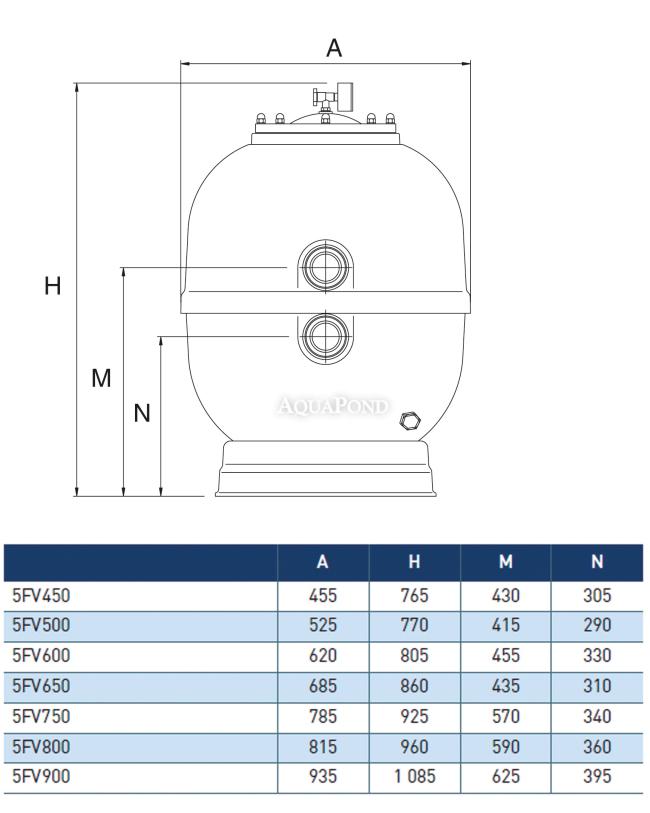

Technical Specifications
- Tank material: polyester resin reinforced with glass fibers
- Filling quantity: 110 kg
- Tank diameter: 550 mm
- Connection: 1 1/2"
- Max. working pressure: 2.5 kg/cm2
- Flow rate: 11.5 m3/h
- Valve type: 6-way side
- Filtration speed: 50 m3/h/m2
- ClearPro filtration technology: No
- Base: Yes
Spare Parts List
You can find the complete list of spare parts here:
Spare parts for Lisboa filter tank 550 mm, flow rate 11.5 m3/h, side valve
-
