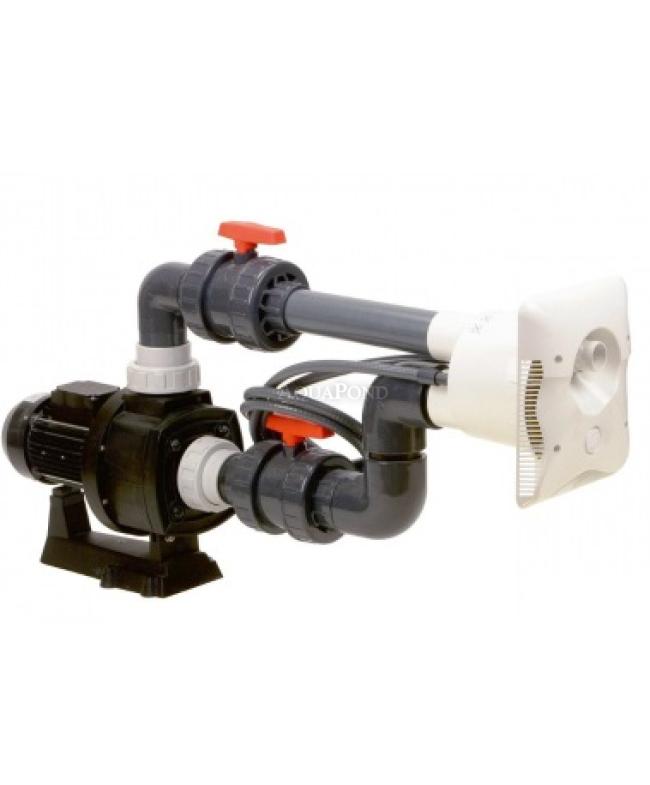

Counter-current K-JET Calipso 66 m³/h, 230 V

Counter-current K-JET Calipso 66 m³/h, 230 V
New

Counter-current K-JET Calipso 66 m³/h, 230 V

Description

The pool counter-current system is suitable for all types of pools and is designed for installation in a chamber behind the pool. The device allows you to adjust the water flow intensity and air intake, ... Read more
Product code: 30150661

  • K-JET Calipso Counter-Current System 66 m3/h, 230 V

    The pool counter-current system is suitable for all types of pools and is designed for installation in a chamber behind the pool. The unit allows adjustment of the water flow intensity and air suction, all on a direction-adjustable nozzle (with a diameter of 40 mm). The counter-current can be controlled using a pneumatic button. The nozzle, together with the suction and pneumatic switch, is located in the front cover of the unit.


    1 Pneumatic button for switching on and off
    2 Internal nozzle for regulating water flow
    3 External nozzle for regulating the amount of sucked-in air
    4 Maximum water flow is achieved by turning the internal nozzle to the left
    5 Water flow is reduced by turning the internal nozzle to the right

    Minimum Space Requirements for Installing the K-JET Unit

    Before installing the K-JET unit, it is essential to take into account the dimensions of the space where you want to place the counter-current system. Make sure in advance that you will not have any problems with insufficient space when installing the pump.

    Package Contents of the K-JET Calipso Unit

    • Manual
    • Counter-current nozzle 40 mm
    • Front panel
    • Counter-current pump
    • Electropneumatic switching with safety element
    • Air suction with hose
    • Connecting piping and valves

    Technical Data

    • Voltage: 230 V
    • Pump output: 66 m3/h
    • Power input: 2.4 kW

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare Parts for the Front Cover of the K-JET Calipso Counter-Current System



    Spare Parts New BCC 300M - 66m3/h -230V
