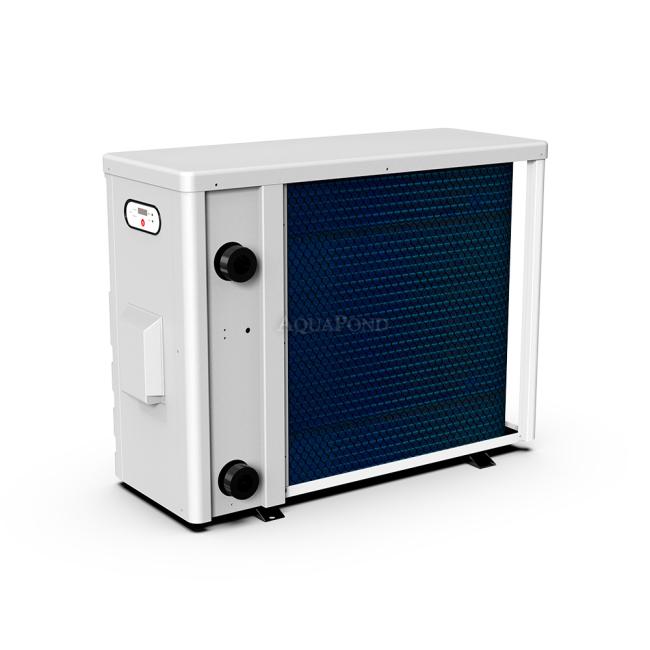

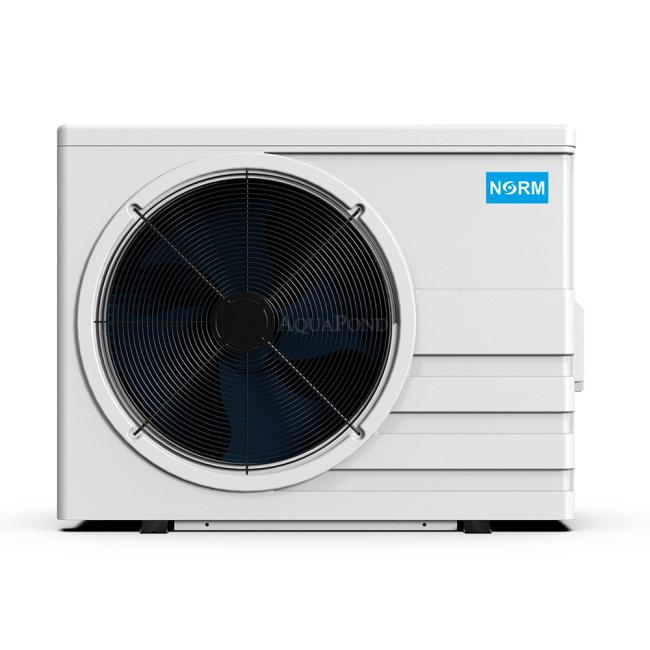

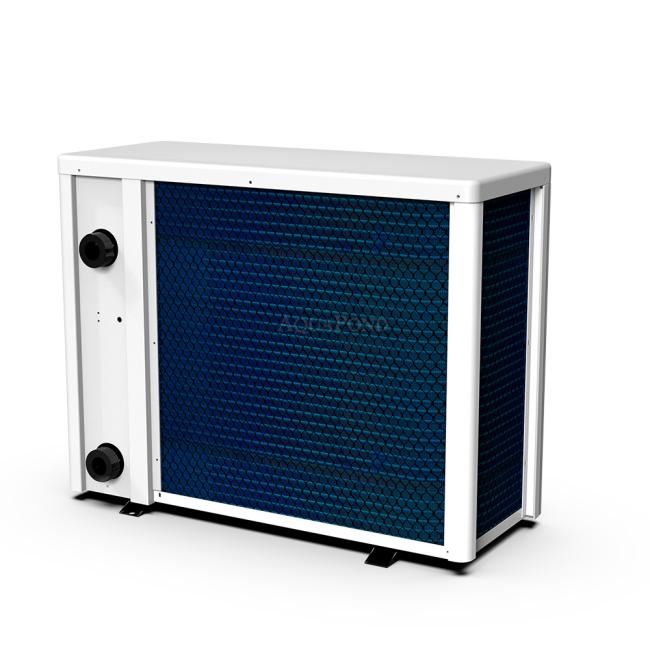

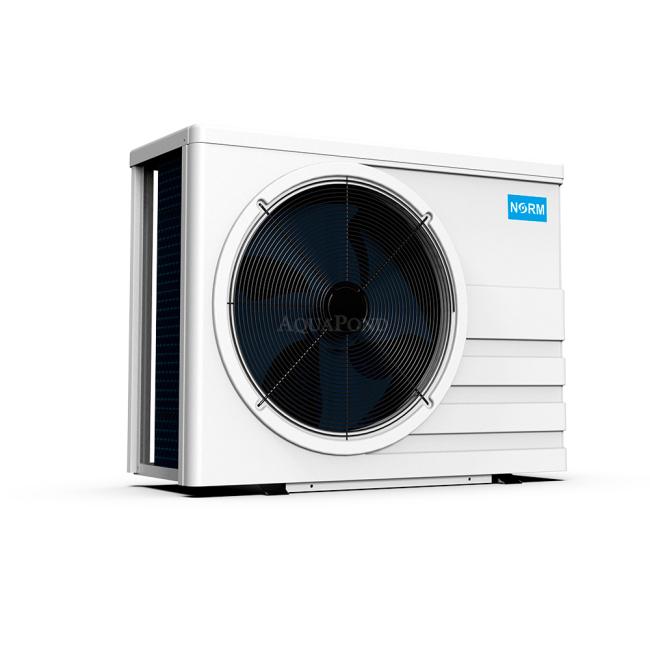

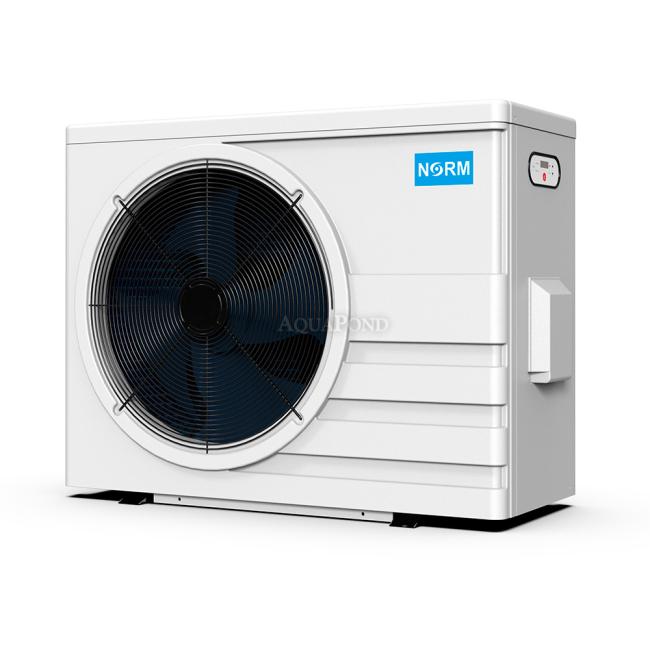

NORM EVO Heat Pump - 12 kW (R32) for Pools up to 50 m3

The NORM EVO 12 kW heat pump is designed for heating smaller private pools with a volume of up to 50 m³. As part of the start-up process, NORM EVO minimizes the inrush current at switch-on to 0(A) and gradually increases it to the rated current value (approx. 2 minutes) - this prevents such a strong and rapid voltage surge, thereby better protecting the household electrical network. The principle of heat extraction in an air-source heat pump is the transfer of thermal energy from the air to the subcooled refrigerant inside the heat pump. By compressing the refrigerant with the compressor, heat is generated, which is then used to heat the pool water. The heat pump is equipped with step-inverter technology. App control.

Features:

• Highly efficient titanium heat exchanger
• Precise temperature control and water temperature display
• High and low pressure protection
• Automatic shut-off protection in case of low temperature
• Forced defrosting with temperature control
• World-class compressor
• Easy installation and operation

Connection to the Filtration Circuit

For connection to the filtration circuit, the heat pump is supplied with fittings for gluing a 50 mm PVC pipe. Always connect the heat pump via a bypass, i.e. a three-valve bypass, so that you can regulate the water flow through the pump. At lower flow rates, heat is transferred to the pool water more efficiently.
The overall installation is not complicated - all joints are bonded together with PVC adhesive (e.g. Tangit).

Performance

Performance under conditions Air 26 °C / Water 26°C / Humidity 80 %:

• Heating output (kW): 12.0
• COP: 10.5~5.9
• C.O.P at 50% speed: 8.8

Performance under conditions Air 15 °C / Water 26°C / Humidity 70 %:

• Heating output (kW): 8.5
• COP: 5.9~4.1
• C.O.P at 50% speed: 5.7

Control via the Inverter Life App

To download, search for Inverter Life in the app store.

• Users of the Android system can search and download via Google Play.
• Users of iOS can search and download via the App Store.

Control of the NORM EVO 12 kW Heat Pump The heat pump is very easy to operate.  Use the lower button to turn the pump on and off, then use the arrows to set the desired temperature.  Mode button - press to select Smart / Silence mode

Package Contents

• heat pump
• fittings for connecting 50 mm pipes
• drain nozzle (for the condensate drain hose)
• user manual

Technical Parameters Product type: Heat pump with step-inverter technology Color: White Dimensions (w / l / h): 872 x 349 x 654 mm Heating output: 12 kW Cooling: No Connection: 50 mm Defrosting: Yes Rated input power: 0.29 - 2.07 kW Refrigerant used: R32 Voltage: 230 V Efficiency: 10.5 - 5.9 C.O.P. Electronic expansion valve: Yes For pools up to: 50 m3 Noise level: 41.1 - 55.3 dB Operating temperature: +5 to +43 °C Flow monitoring: Yes Energy saving: Yes Easy installation: Yes Rated current: 1.26 - 9 A Flow rate: 2 - 3 m3 / h Weight: 53 kg Warranty period: 2 years

Most heat escapes through the water surface, so for maximum efficiency of the heat pump, we recommend covering the pool water surface with a solar cover or slatted cover, or covering the pool with a pool enclosure.
