JET SWIM ATHLETE front panel made of stainless steel - 2x piezoelectric button (VArio)

Description

The front panel for the Athlete counter-current system with two piezoelectric buttons can only be used if the pool technology is equipped with the VArio intelligent system and the DIN PUMPS module — ... Read more

Product code: 30160803

Description
Related products

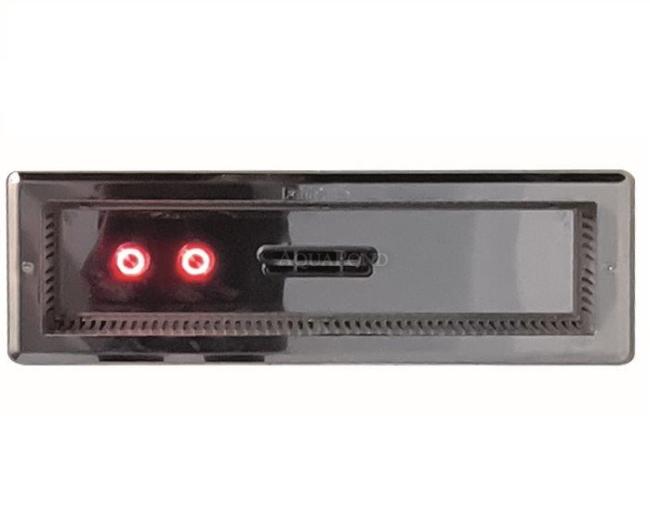

JET SWIM ATHLETE front panel in stainless steel - 2x piezoelectric button (VArio)

The front plate for the Athlete counter-current with two piezoelectric buttons can only be used if the pool technology is equipped with the intelligent VArio system and the DIN PUMPS module - otherwise the pump speed cannot be controlled with the buttons (the piezoelectric buttons cannot be connected directly to the frequency inverter). The piezoelectric buttons are connected to the VArio DIN PUMPS module and it is not necessary to install PRE PIEZO electronics.

JET SWIM ATHLETE - front panel

The front plate is made of AISI316L stainless steel
Two oval nozzles
Included in the front plate - 2x piezoelectric button (for regulating pump output via frequency inverter)

Frequency inverter selection:

Counter-current version	Pump	Pump power supply	Frequency inverter	Power supply
JET SWIM Athlete 66 m³/ h	BRAVUS 300M	230 V	Not available for this pump output	Not available for this pump output
JET SWIM Athlete 66 m³/ h	BRAVUS 300T	400 V	OPTIDRIVE E3 4 KW	IN: 3x 400 V / OUT: 3x 400 V
JET SWIM Athlete 74 m³/ h	BRAVUS 400T	400 V	OPTIDRIVE E3 4 KW	IN: 3x 400 V / OUT: 3x 400 V
JET SWIM Athlete 86 m³/ h	BRAVUS 550T	400 V	OPTIDRIVE E3 5,5 KW	IN: 3x 400 V / OUT: 3x 400 V

Technical parameters

Product type: Stainless steel front panel with 2x piezoelectric button - for Jet Swim Athlete counter-current
Material: AISI 316L
Connection (int.): 2 1/2 "in
Weight: 5 kg
