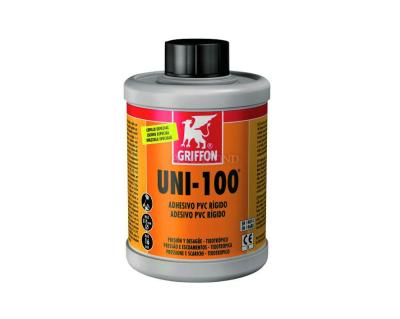

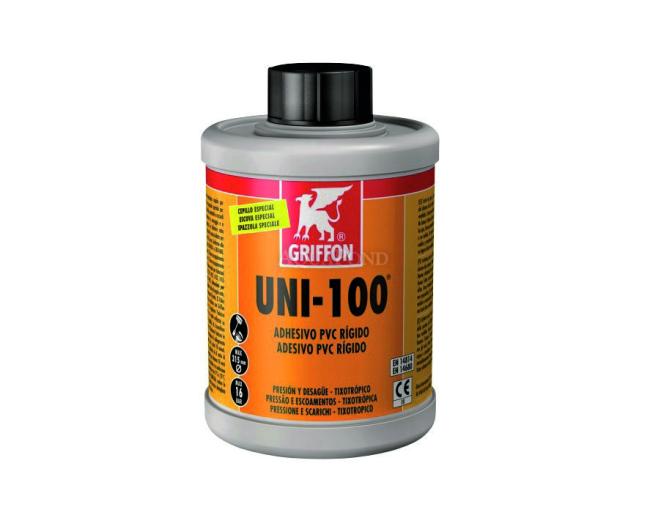

Griffon UNI-100 PVC adhesive with brush 1000 ml
Griffon UNI-100 PVC adhesive with brush 1000 ml
Description
Adhesive based on tetrahydrofuran, designed for swimming pools and for use in potable water supply piping made of PVC-U Read more
-
Griffon UNI-100 PVC adhesive with brush 1000 ml
For bonding pressure-resistant joints of pressure pipes (e.g. drinking water piping) with PVC-U fittings.
INSTRUCTIONS FOR USE:
Shake Griffon adhesive thoroughly before use. Using a brush, apply a continuous and even layer of adhesive in the longitudinal direction to both clean and dry surfaces (apply a thinner layer at the socket and a thicker layer at the end of the pipe). Insert the pipe and fitting all the way in without twisting the bonded parts, and hold for a few seconds. The bonded parts must be inserted within 4 minutes from the start of adhesive application. Temperatures above +25 °C or a thinner adhesive layer shorten the open working time. Do not mechanically stress the joint for 5 minutes after bonding. At temperatures below +10 °C, this time is extended to 15 minutes. We recommend lowering the bonded piping into the trench no earlier than 10–12 hours later. Approximate time interval before pressure testing: 1 hour per 1 bar.
SPECIFICATION:
- For pressure hoses and drains
- Suitable for piping systems according to EN1329, 1452, 1453, 1455 and ISO15493 (PVC)
- Suitable for diameters ≤ 400 mm
- Max. 16 bar (PN 16)
- Store the adhesive at temperatures from 5 °C to 25 °C.
Downloads
Catalog, p. 349.pdf
Griffon PVC CZ - Manual
prodlist_griffon uni 100_cz
-
