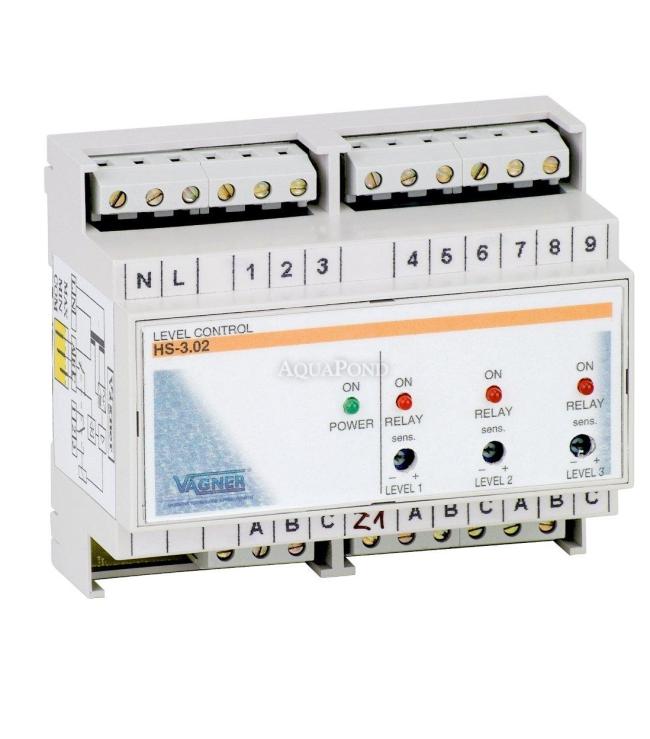

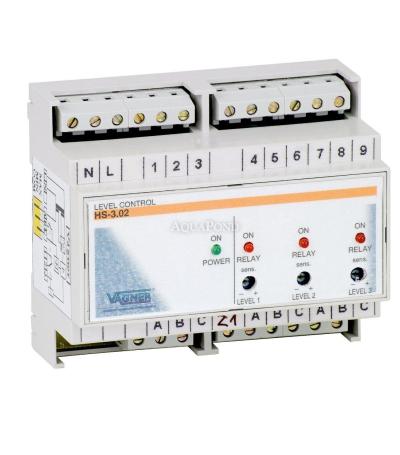

Electronic level monitoring for a storage tank, 7x probe - for DIN rail

Electronic level monitoring for a storage tank, 7x probe - for DIN rail

Electronic level monitoring for a storage tank, 7x probe - for DIN rail

Description

The best system and way to maintain the optimal water level in your pool, as the regulator automatically tops up the water and compensates for losses caused by filter backwashing and evaporation.  ... Read more
Product code: 201524023

  • Electronic Level Monitoring for a Storage Tank, 7 Probes - For DIN Rail

    As accessories, 1/2", 3/4", and 1" solenoid valves are used.

    The device is equipped with 7 level sensors that monitor the emergency minimum level. It also controls water replenishment from the set minimum level up to the set height and monitors the maximum level. The probes are placed in the storage tank and adjusted in height to ensure proper operation (see the diagram below). The probes are connected to the electronic unit using a CYA 1.5 mm wire. The device requires no special maintenance.

    Technical Parameters

    • Dimensions: 58 x 90 x 106 mm
    • Power supply voltage: 230 V
    • Number of channels: 3
    • Contact switching delay: approx. 2 sec
    • Protection rating: IP 20
    • Protection class: II
    • Power supply for measuring probes – low voltage 12V: SELV type
    • Weight: 0.645 kg

    Diagram of Monitoring and Automatic Water Replenishment in the Storage Tank
