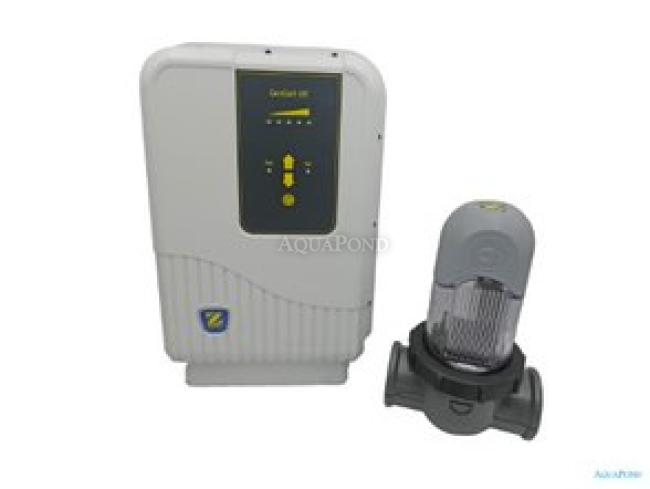

ZODIAC Gensalt OE 10 salt chlorinator, for up to 40 m3
|
 |
ZODIAC Gensalt OE 10 salt chlorinator, for up to 40 m3
Description
The Zodiac Gensalt 10 unit produces chlorine gas from salt pool water. The chlorine produced in this way is then dosed into the pool. Read more
-
ZODIAC Gensalt OE 10 salt chlorinator, for up to 40 m3
The Zodiac Gensalt 10 unit produces gaseous chlorine from salt in the pool water. The chlorine produced in this way is then dosed into the pool. For the system to work properly, salt must first be added to the pool in an amount of 3 - 4 kg per 1 m3 of water. The unit is equipped with a control mechanism that alerts you during operation when more salt needs to be added to the pool.
Salt water in the pool has beneficial effects on the skin and is highly resistant to microorganisms. By using water treatment based on salt decomposition, it is possible to save on pool chemicals and the time needed for water treatment.It is necessary to use two titanium grounding points, one before and one after the chlorinator. When using salt water treatment, use the UV sterilizer only with a plastic body.
- Power indication using LED lights (20%, 40%, 60%, 80%, 100%)
- Reverse polarity every 5 hours (cannot be adjusted)
- LED error indicators: Flow (no flow); Salt (low/high salinity level)
- Maximum allowed pressure: 275 kPa = 2.75 bar
- Cell lifespan: 7,500 hours
- Distance between the cell and the control unit = 1.5 m
- The unit must be connected to the filtration system
- Easy installation - max. 10 min
Connecting the Gensalt 10 chlorinator cell with the Quick-Fix system:
- The unit includes a cell that connects to existing pool piping with a diameter of 50 or 63 mm using the special Quick-Fix system. It is a clamp that is simply attached to the pipe, with only two holes drilled into it. Installation takes up to 15 minutes
- We recommend placing the cell in a bypass loop and always installing it in the filtration circuit after the filter, after any heaters and other equipment.
How does it work?
- Salt water chlorinators work on a simple principle, the same as the natural marine ecosystem.
- Pool water is lightly salted with a concentration of 4 g/l, which is nine times less than seawater.
- Through electrolysis, which takes place in the cell, the salt is converted into gaseous chlorine, which is then dissolved in the water as a disinfectant.
- The active chlorine then destroys all microorganisms in the cell and ensures a sufficient amount of free chlorine in the pool.
- The active chlorine, which is eliminated by sunlight and UV radiation, is continuously replenished from the cell without any further intervention.
-
Water quality
For proper operation of the chlorinator, the pH must be maintained between 7.2 and 7.4. Balanced water (pH and alkalinity) and effective filtration adapted to the pool water volume are the basic factors for good water quality. The polarity switching function works automatically and thus increases efficiency.
Package contents

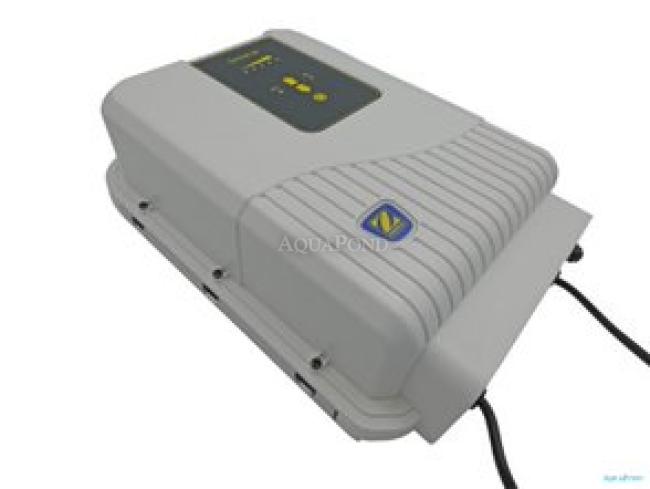

- control unit with power cable
- 1.5 m connecting cable between the unit and the cell
- cell with electrodes and Quick-Fix clamp
- drill bits for pipe holes
- manual
pH dosing pump is not included!
Technical specifications
- Recommended pool volume: 40 m3
- Chlorine production: 10 g/h
- Min. flow rate: 5 m3/h
- Max. flow rate: 18 m3/h
- Minimum required salt level: 3 g/l
- Optimal required salt level: 4 g/l
- Max. temperature: 40°C
- Max. operating pressure: 2.75 bar
- Connection (int.): 50 / 63 mm
- Power: 60 W
- Cable length: 1.8 m
- Power supply: 12 V AC
List of spare parts
You can find the complete list of spare parts here:
-
