VA SALT SMART C15 salt chlorinator for up to 50 m³, with pH probe and pH minus dosing pump
|
 |
VA SALT SMART C15 salt chlorinator for up to 50 m³, with pH probe and pH minus dosing pump
Description
Compact salt chlorinator for salt water with pH control, for private and semi-public pools up to 50 m3. Read more
-
VA SALT SMART C15 salt chlorinator for up to 50 m3, with pH probe and pH minus dosing pump
Compact salt chlorinator with pH control for private and semi-public pools up to 50 m3. The chlorinator features a built-in dosing pump which, together with the pH probe, is used for automatic measurement and maintenance of the optimal pH level of pool water. Possibility of connecting a mechanical flow switch, salinity sensor and remote control via the internet Ey-Pool.
It is necessary to use two titanium grounding kits, one before and one after the chlorinator. When using salt water treatment, use a UV sterilizer with a plastic body only.
- Latest switching power supply technology ensures higher chlorine production
- Higher resistance of the electrolytic cell with a service life of 10,000 hours
- Low operating temperature ensures longer service life
- Easy installation and operation of the unit
- 35 m3 - water temperature above 28°C
- 50 m3 - water temperature up to 28°C
Use:
- For disinfection of outdoor and indoor pools
- For automatic pH treatment of outdoor and indoor pools

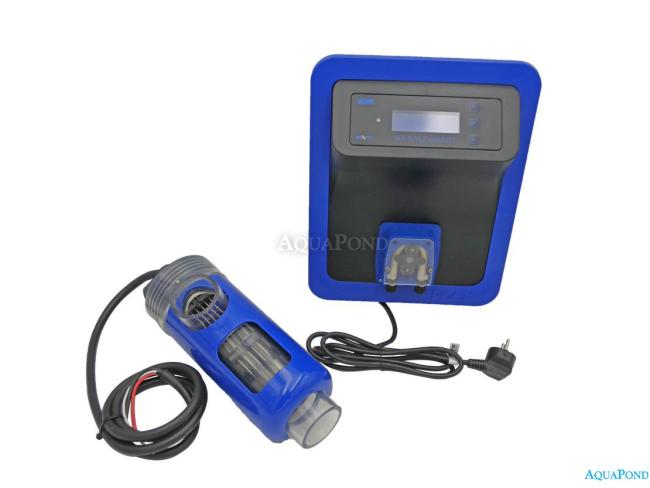

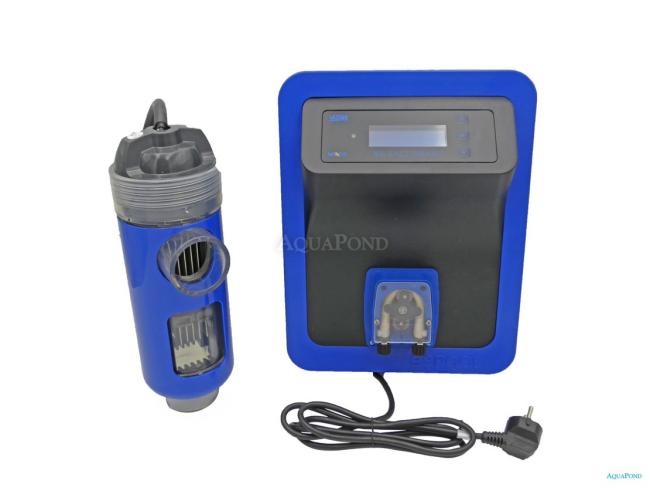

Package contents

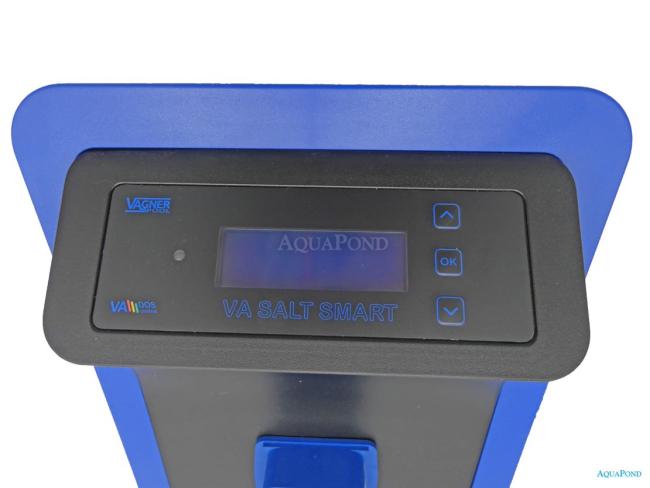

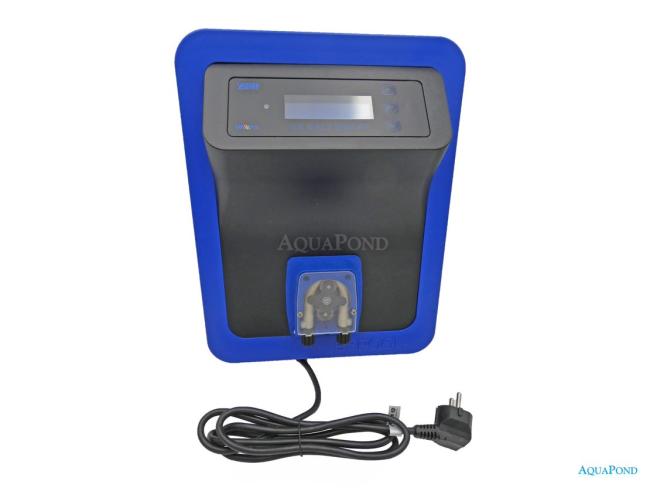

- control unit with power cable
- connecting cable between the unit and the cell

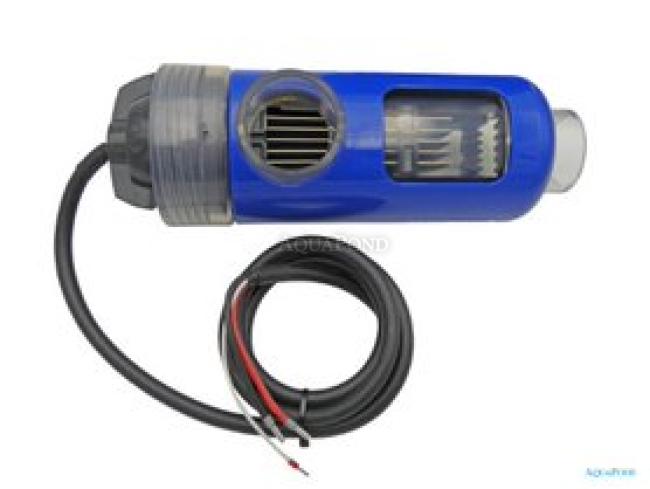

- cell with electrodes
- pH probe
- calibration solutions
- injection valve
- complete accessories for connecting the probe and chemicals
ORP probe / FCL probe is not included in the package - the station can be expanded with an ORP kit - automatic output control according to the ORP value.
Hydraulic connection diagram
- cell grounding kit (additional accessory – not included) on the suction line from the pool
- pump and filtration
- control unit / switchboard
- by-pass
- flow switch (included in the package)
- salinity sensor (additional accessory – not included)
- temperature sensor (additional accessory – not included)
- pH probe (included in the package)
- ORP probe (minimum distance 0.5 m from the cell)
- cell grounding kit (additional accessory – not included)
- pH injection valve (included in the package)
- salt water treatment unit
- electrolytic cell
- chemical suction – pH treatment
- EY-Pools – remote control via the internet (additional accessory – not included)
- cell grounding kit (additional accessory – not included) on the return line to the pool
Technical parameters
- For pools: up to 50 m3
- Power supply: 230 V
- Minimum required salt level: 2 g/l
- Optimal required salt level: 4 g/l
- Connection (int.): 50 mm
- Digital display: Yes
- Water flow: minimum 5 m3 / h
- Water flow: maximum 18 m3 / h
- Gaseous chlorine production: 15 g/h
- Maximum operating temperature: 40 °C
- Maximum water temperature: 30 °C
- Electrode life: 10,000 hours
- Protection rating: IP 65 (also suitable for pool pits)
- Easy installation: Yes
