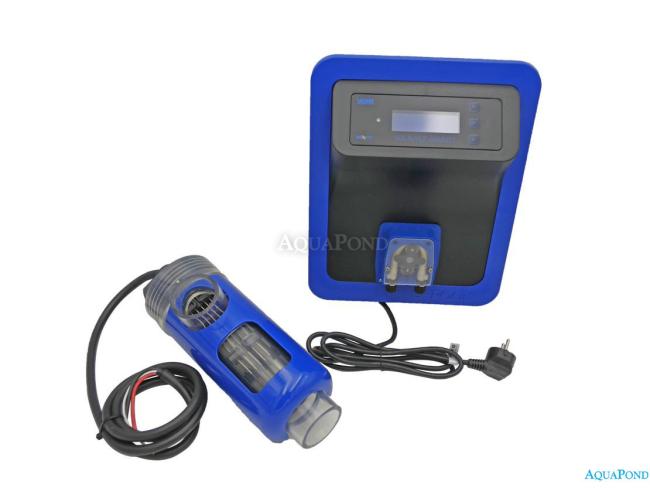

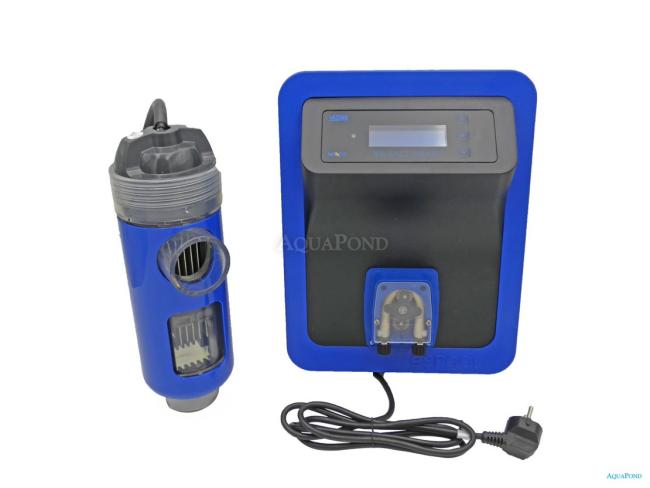

VA SALT SMART C20 salt chlorinator for up to 75 m3, with pH probe and pH minus dosing pump
|
 |
VA SALT SMART C20 salt chlorinator for up to 75 m3, with pH probe and pH minus dosing pump
Description
Saltwater treatment with pH/Cl regulation - up to 75 m3, max. power 150 W Read more
-
VA SALT SMART C20 salt chlorinator for up to 75 m3, with pH probe and pH minus dosing pump
Compact salt chlorinator for salt water with pH control, designed for private and semi-public pools from 55 to 75 m3. The chlorinator features a built-in dosing pump which, together with the pH probe, is used for automatic measurement and maintenance of the optimal pH level of pool water. Option to connect a mechanical flow switch, salinity sensor and remote control via the internet Ey-Pool.
It is necessary to use two titanium grounding kits, one before and one after the chlorinator. When using salt water treatment, use a UV sterilizer with a plastic body only.
- Latest switching power supply technology ensures higher chlorine production
- Higher resistance of the electrolytic cell with a service life of 10,000 hours
- Low operating temperature ensures longer service life
- Easy installation and operation of the unit
- 55 m3 - water temperature above 28°C
- 75 m3 - water temperature up to 28°C
Use:
- For disinfection of outdoor and indoor pools
- For automatic pH adjustment of outdoor and indoor pools
Package contents

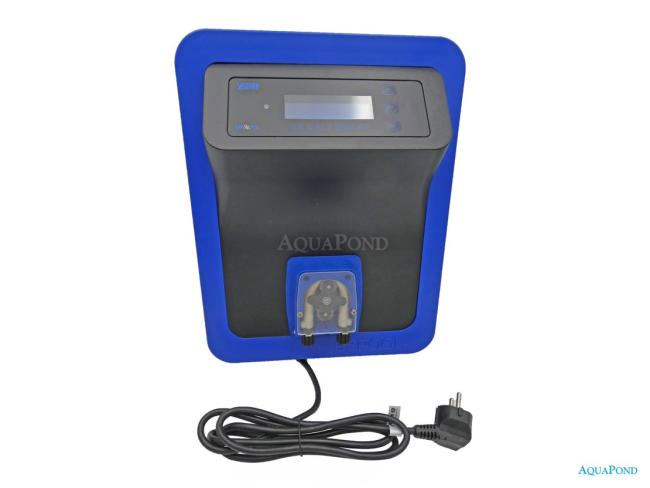

- control unit with power cable
- connecting cable between the unit and the cell

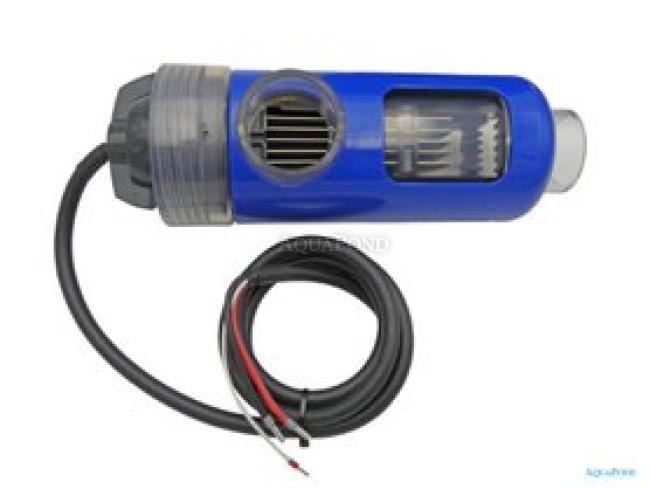

- cell with electrodes
- pH probe
- calibration solutions
- injection valve
- complete accessories for connecting the probe and chemicals
ORP probe / FCL probe is not included in the package - the station can be expanded with an ORP kit - automatic output regulation according to the ORP value.
Hydraulic connection diagram
- cell grounding kit (additional accessory – not included) on the suction line from the pool
- pump and filtration
- control unit / distribution board
- by-pass
- flow switch (included in the package)
- salinity sensor (additional accessory – not included)
- temperature sensor (additional accessory – not included)
- pH probe (included in the package)
- ORP probe (minimum distance 0.5 m from the cell)
- cell grounding kit (additional accessory – not included)
- pH injection valve (included in the package)
- salt water treatment unit
- electrolytic cell
- chemical suction – pH adjustment
- EY-Pools – remote control via the internet (additional accessory – not included)
- cell grounding kit (additional accessory – not included) on the return line to the pool
Technical parameters
- Pools: from 55 m3 to 75 m3
- Power supply: 230 V
- Minimum required salt level: 2 g / l
- Optimal required salt level: 4-5 g / l
- Connection (int.): 50 mm

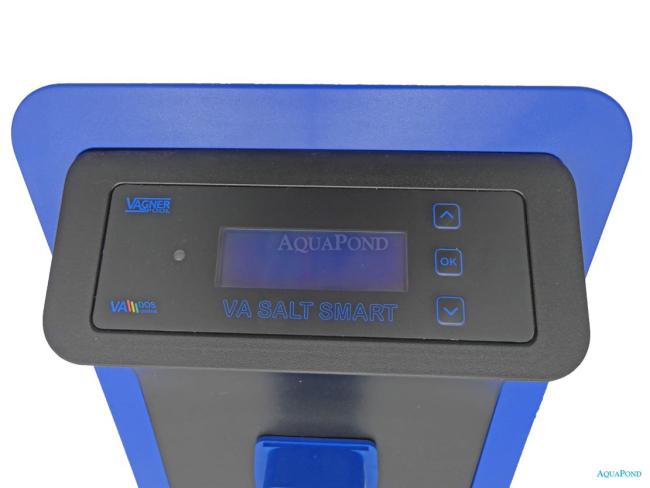

- Digital display: Yes
- Water flow: minimum 5 m3 / h
- Water flow: maximum 18 m3 / h
- Gaseous chlorine output: 20 g / h
- Maximum operating temperature: 40 °C
- Maximum water temperature: 30 °C
- Electrode life: 10,000 hours
- Protection rating: IP 65 (also suitable for pool pits)
- Easy installation: Yes
Spare parts list
You can find the complete spare parts list here:
