Turbine Counter-Current System BINDER Hydrostar BGA Single 160K Poly Shaft max. 160 m3 / h, polypropylene installation box

HydroStar by Binder, a unique counter-current swimming system, brings a natural swimming experience to your home. The turbines create a broad, even, and powerful current. With individually adjustable flow - for every requirement. A wide, strong current: ideal for endurance swimming or relaxing water aerobics. This is made possible by patented technology: the turbines generate a broad, even, and powerful current, and you decide how strong it is. HydroStar is also suitable for very small pools, with a minimum length of just 4.50 m and a width of only 2.50 m. The HydroStar system is easy to install, significantly less demanding than conventional counter-current systems, and can also be retrofitted using the Easystar system. The patented technology has already won numerous prestigious awards, including the Golden Wave Award, German Brand Award, and Plus X Award. Recharge your energy and let yourself be carried by the current - your wellness for the soul.

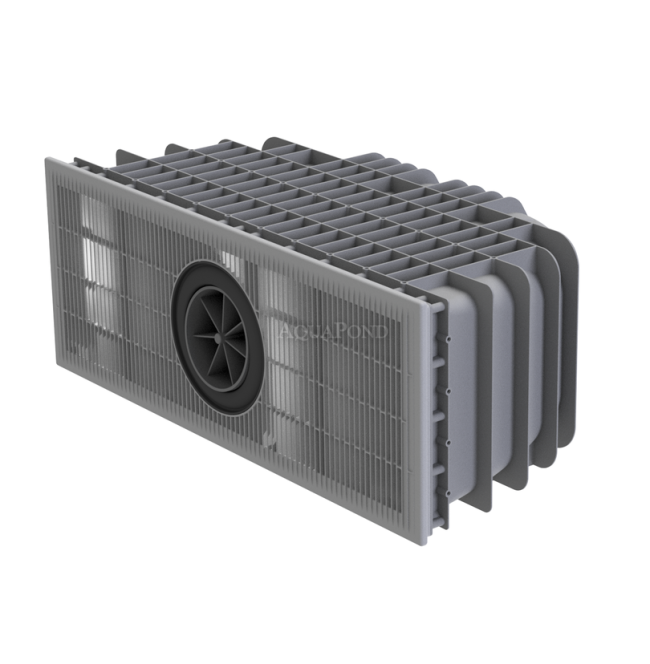

The new polypropylene installation shaft from BINDER offers pool owners similar benefits:

Easy installation - Thanks to its intelligent design and high-quality polypropylene plastic, the new poly shaft is significantly lighter than a stainless steel shaft. This makes installation even easier.

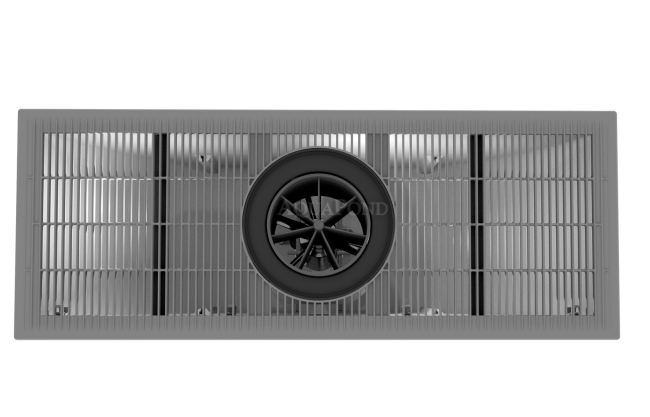

Flow-optimized shape - Both the installation shaft and the cover grille of the new PolyShaft are designed for optimal flow.
Corrosion-resistant - Because it contains no metal, our poly shaft is significantly less sensitive to low pH values or salt overdosing.
Snap-in cover grille - The cover grille made of high-quality plastic can simply be snapped in and removed from the shaft.

The polypropylene installation box is suitable for installation in both liner and GRP pools. LED lighting is also available as an accessory and is mounted on the outlet aid. This LED light ring bathes the water in colorful light displays in freely selectable colors and makes swimming in the pool a very special experience.

Advantages:

maintenance-free DC motor
maintenance-free plain bearings
motor control unit with current and temperature monitoring
no inspection shaft or piping required
all components made of V4A or PVC
control via radio remote control
space-saving, quick, and easy installation (also for retrofitting)
optional choice of 2 different lighting systems available
control and piezoelectric buttons
saltwater-resistant design
maintenance-free operation
Made in Germany quality

Package Contents

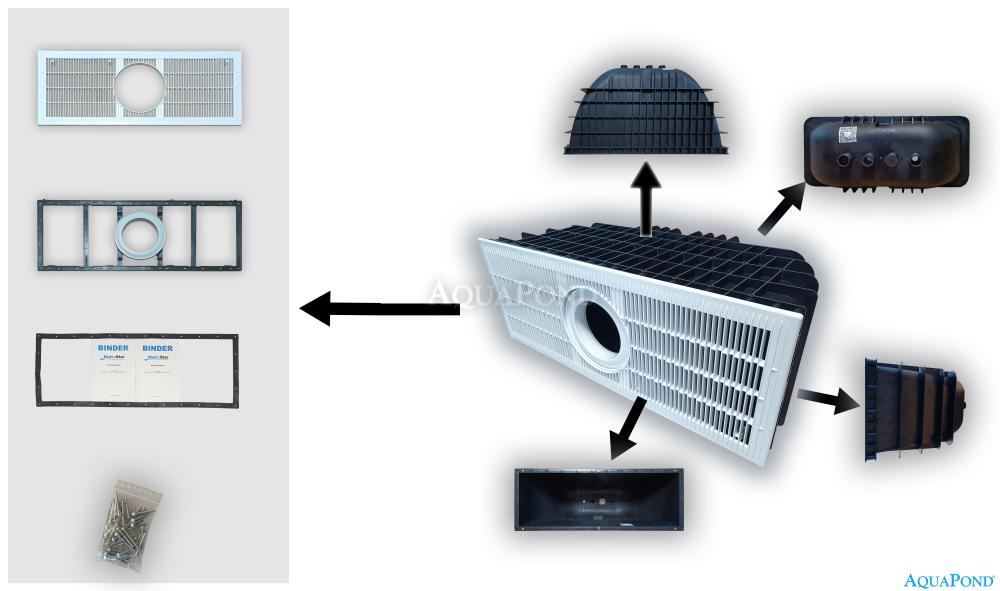

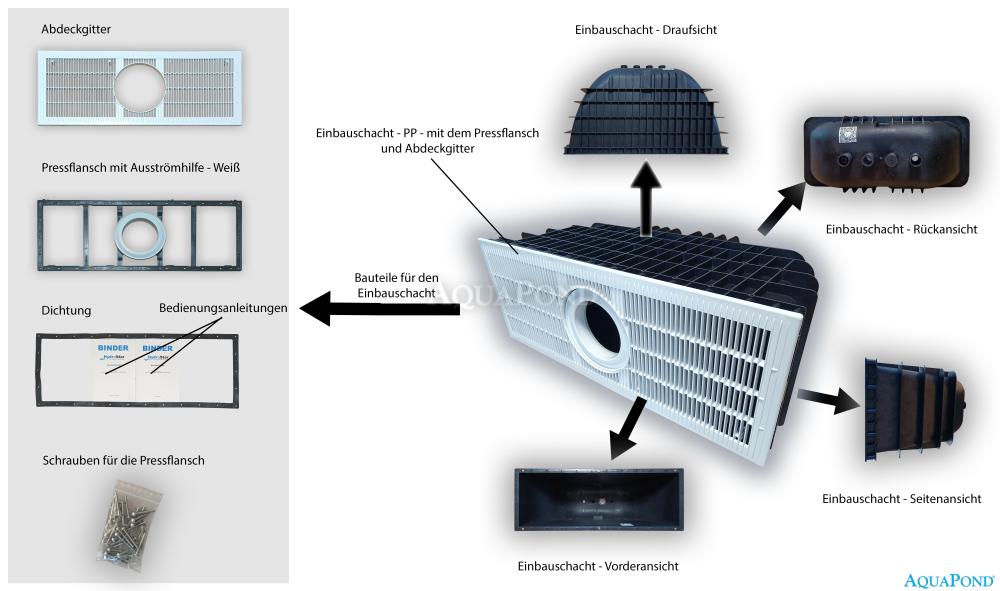

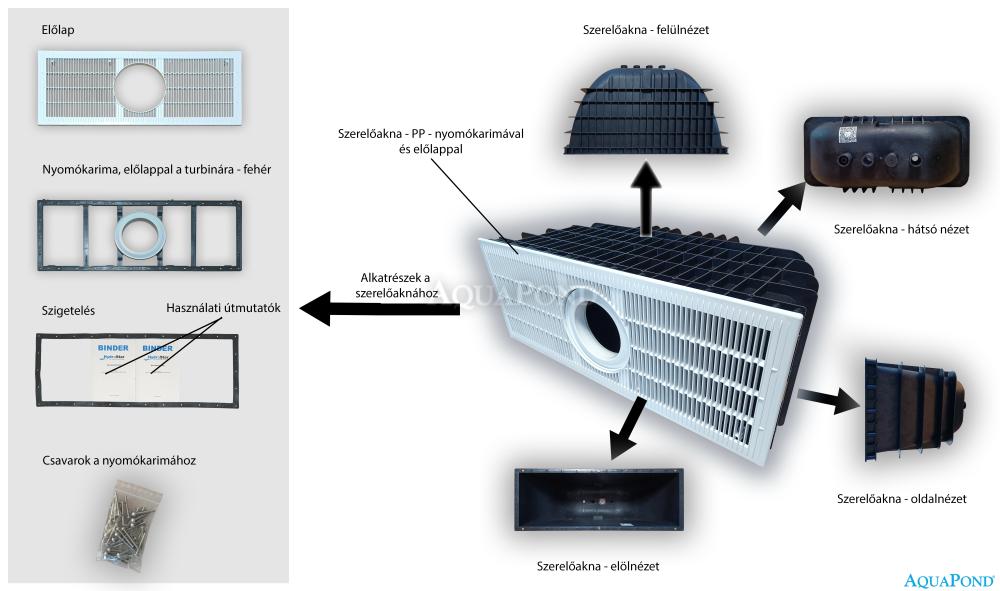

PP installation shaft 970 x 360 x 515 (W x H x D) White plastic cover grille Flange, seals, and screws Operating instructions

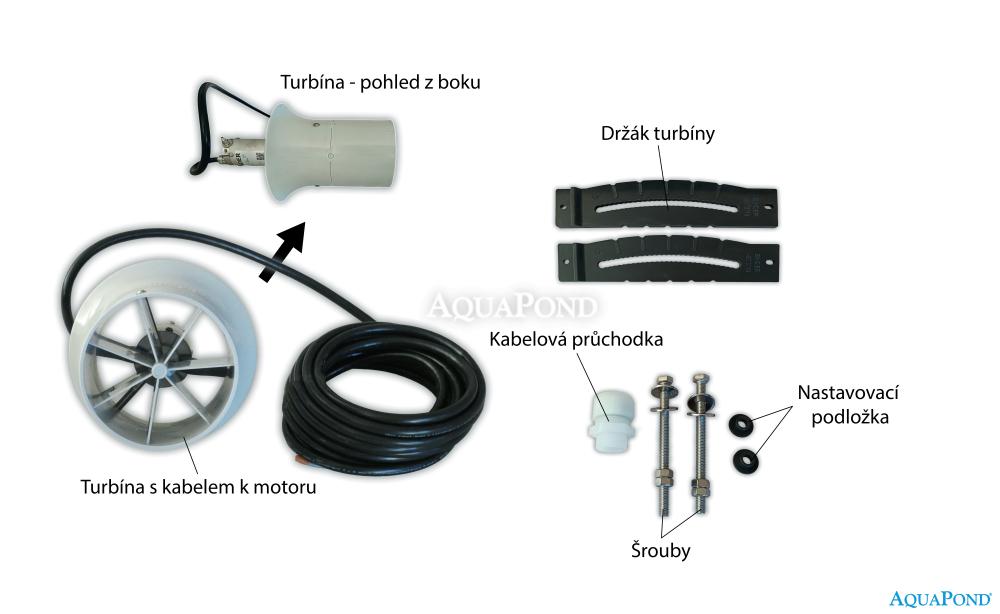

Turbine with 10 m connection cable Turbine brackets Cable gland, washers, and screws

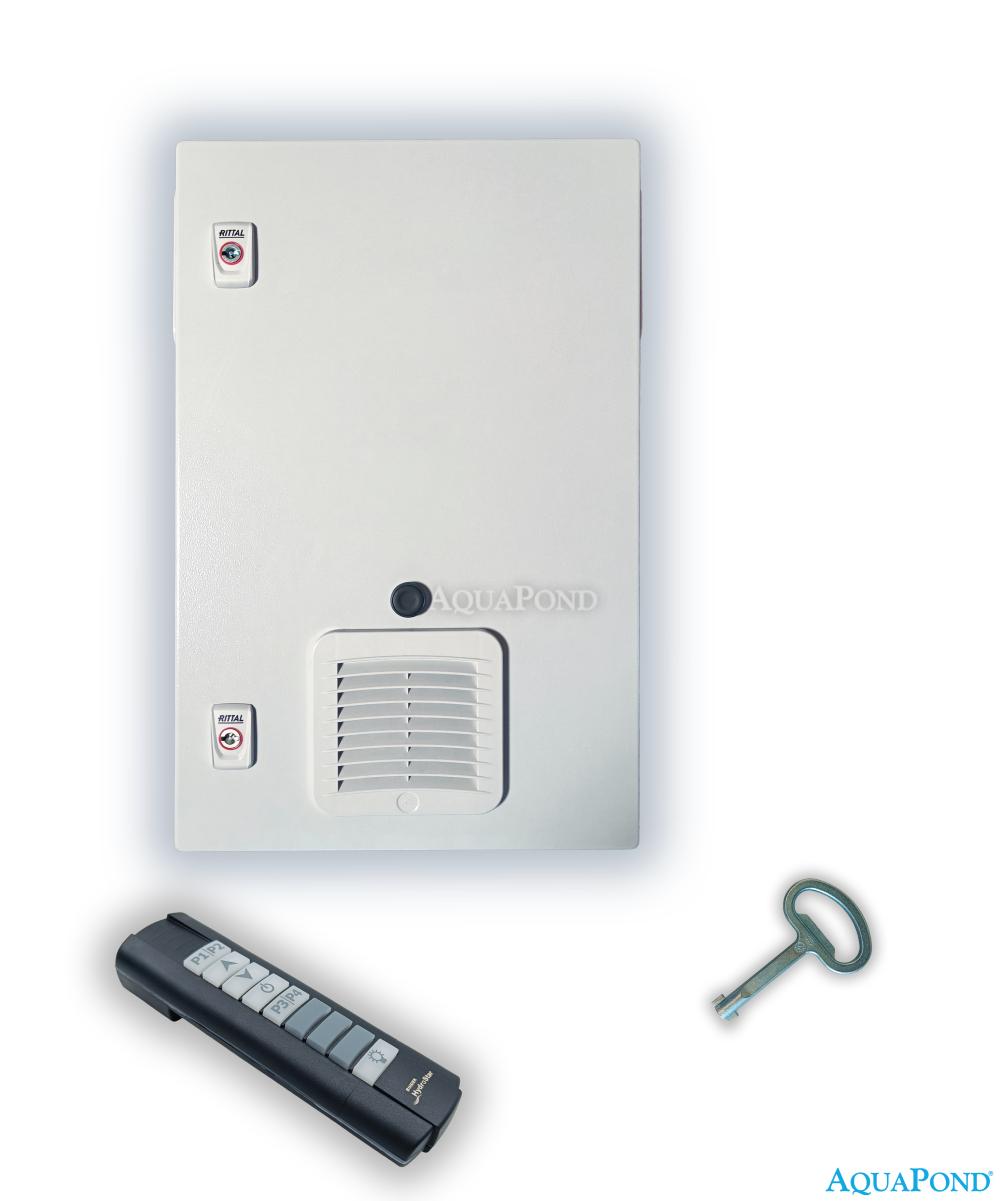

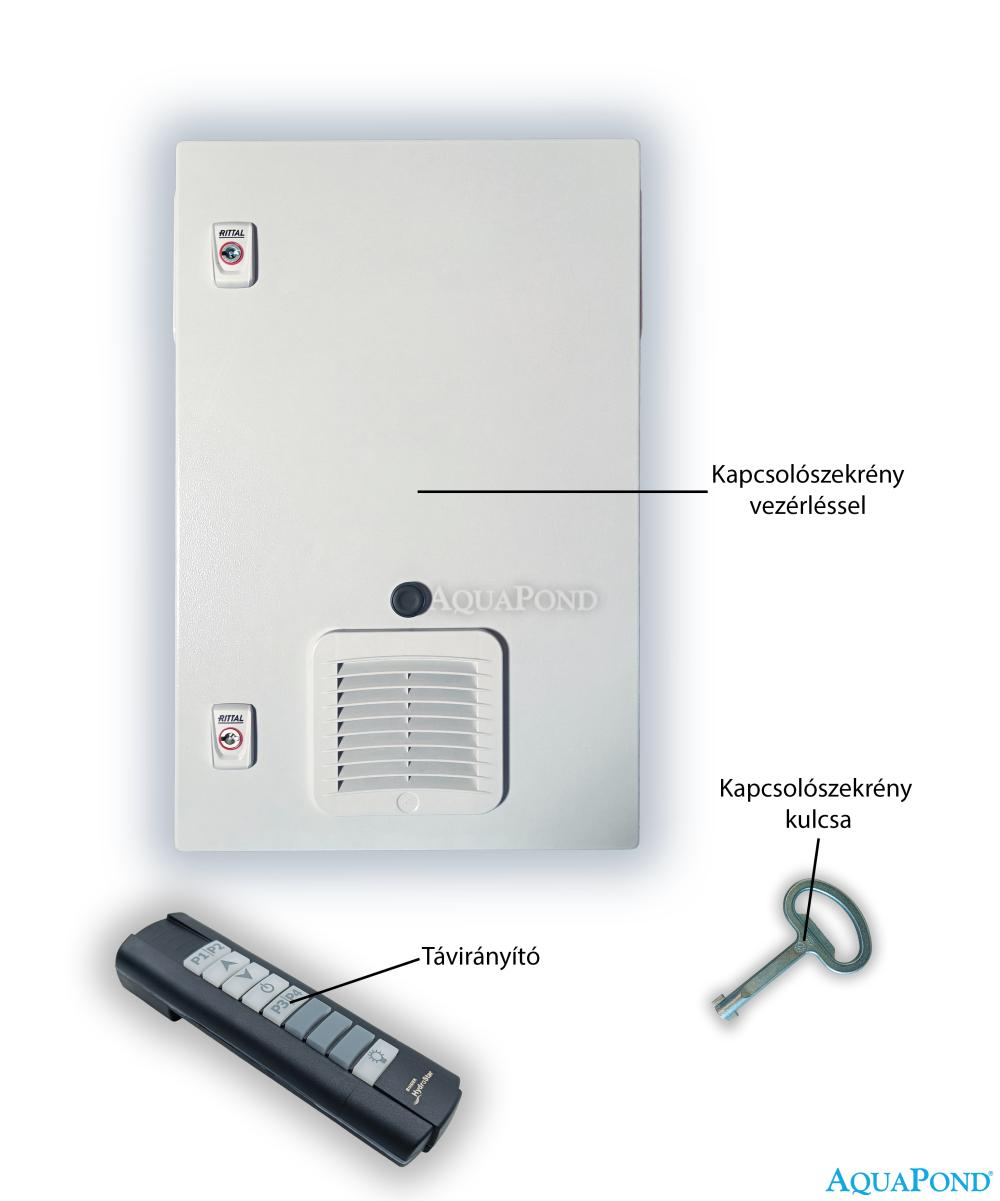

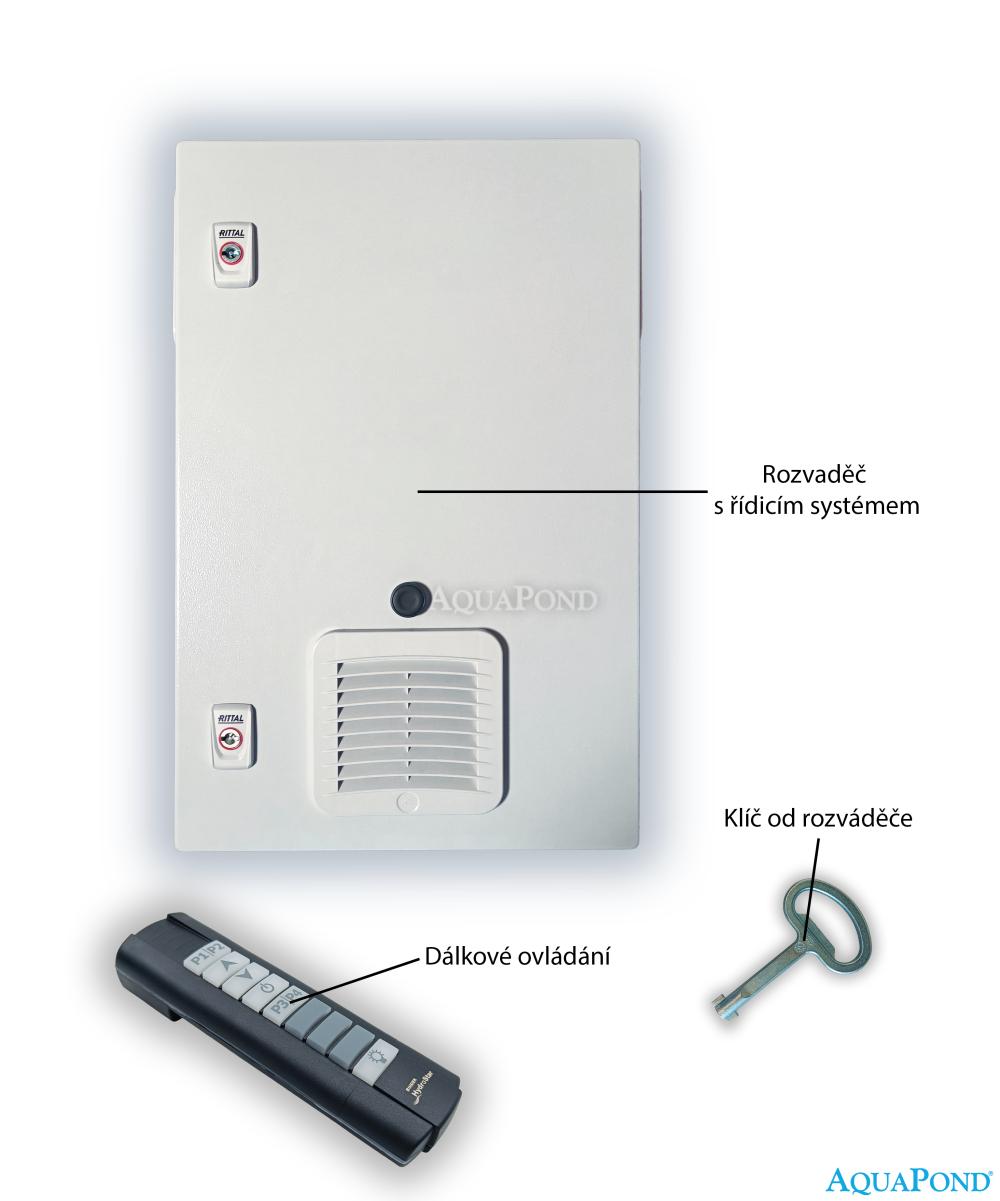

Control unit in steel housing IP67 remote control Key

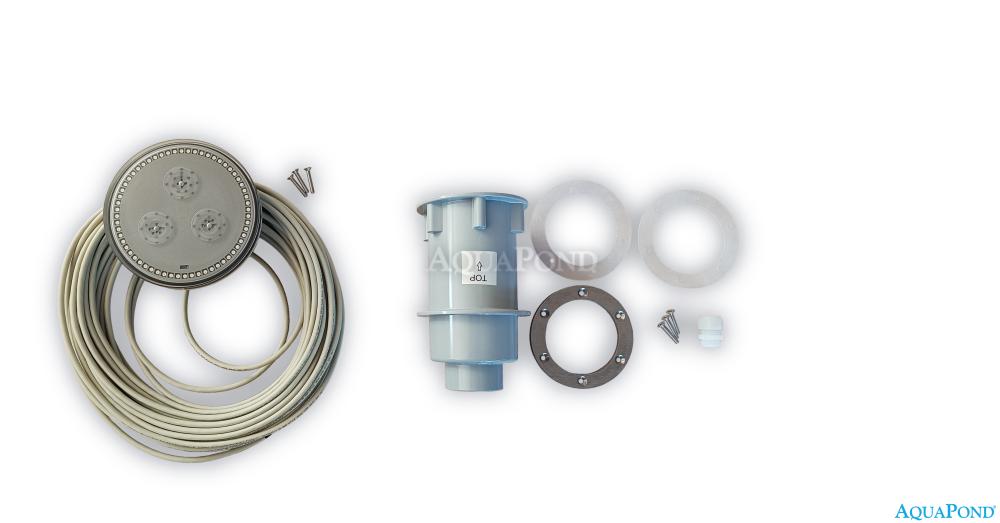

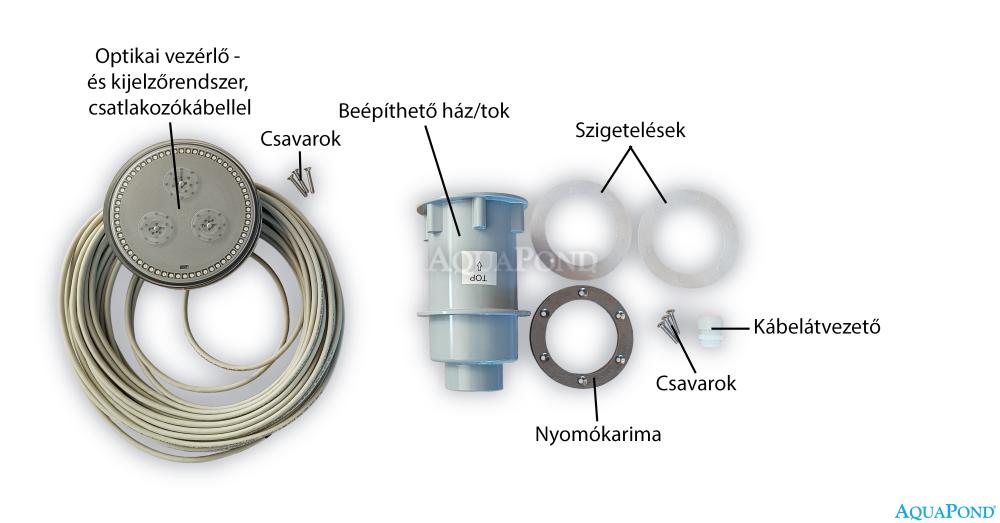

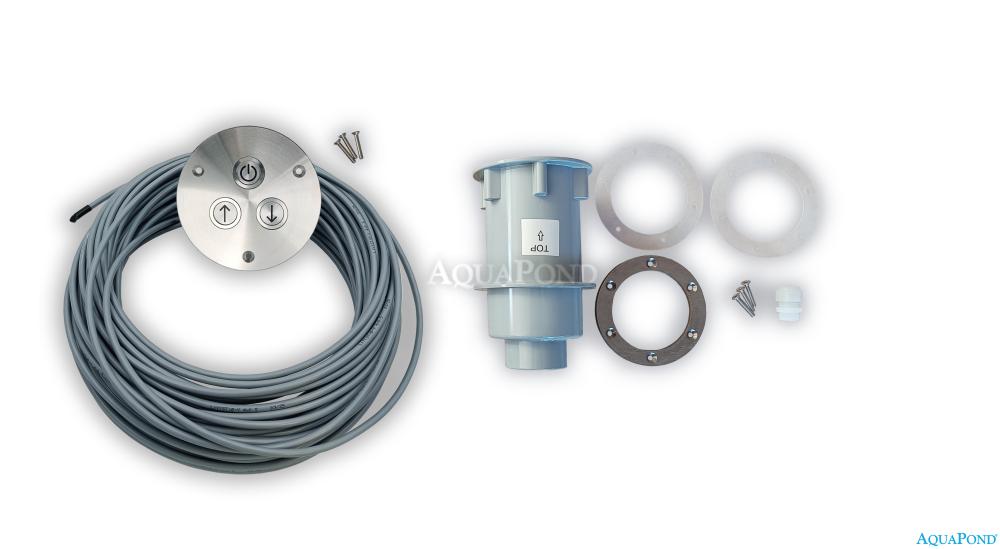

Piezo three-touch switch or optical control panel (optional) with 30 m cable and screws Built-in housing, cable gland Flange, seals, screws

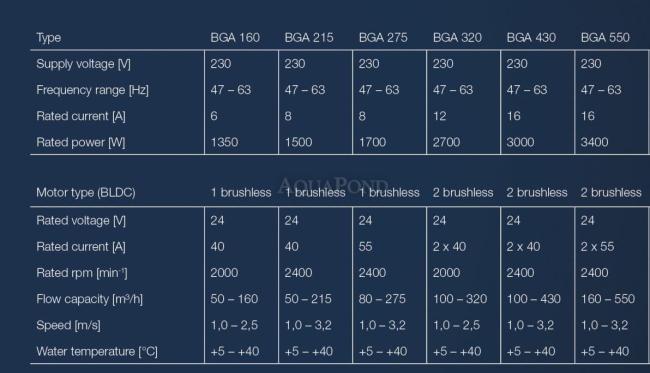

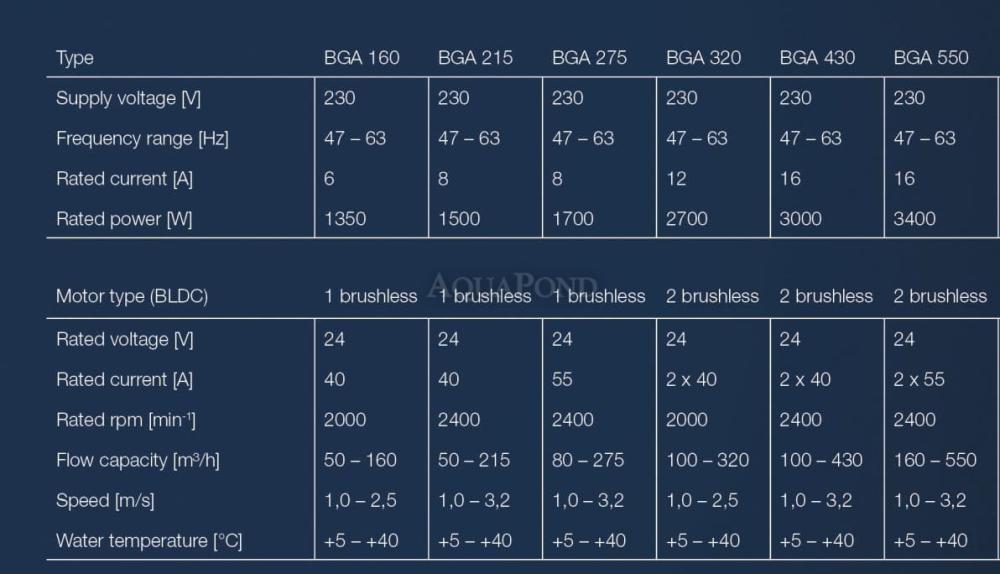

Technical Parameters

Voltage: 230 VAC
Frequency range: 47 - 63 Hz
Rated current: 6 A
Starting current: 60 A
Rated power: 1350 VA
Motor type: 1 brushless DC motor (BLDC)
Motor rated voltage: 24 VDC
Motor rated current: 40 A
Rated speed: 2400 min^-1
Turbine flow rate: 50 - 160 m³ / h
Flow speed (at turbine outlet): 1.0 - 3.2 m / s
Water temperature: +5° C to +40° C
Immersion depth: 0.20 m - 1.00 m
Use: Suitable for both fresh and salt water with a salt concentration of up to 4 g/l
Warranty: 3 years
