Turbine counter-current BINDER Hydrostar BGA Single 275K Poly-Shaft max. 275 m3/h, polypropylene installation box
Turbine counter-current BINDER Hydrostar BGA Single 275K Poly-Shaft max. 275 m3/h, polypropylene installation box
Description
The Hydrostar turbine system brings the natural feeling of swimming right into your home. With individually adjustable current - for every need. Read more-
Turbine Counter-Current System BINDER Hydrostar BGA Single 275K Poly-Shaft max. 275 m3/h, polypropylene installation box
HydroStar by Binder is a unique counter-current system that brings the natural feeling of swimming into your home. The turbines create a broad, even, and powerful current. With individually adjustable flow - for every requirement. A wide, strong current: ideal for endurance swimming or relaxing water aerobics. This is made possible by patented technology: the turbines generate a broad, even, and powerful current, and you decide how strong it is. HydroStar is also suitable for very small pools, with a minimum length of just 4.50 m and a width of only 2.50 m. The HydroStar system is easy to install and significantly less demanding than conventional counter-current systems, and it can also be retrofitted using the Easystar system. The patented technology has already won numerous prestigious awards, including the Golden Wave Award, German Brand Award, and Plus X Award. Recharge your energy and let yourself be carried by the current - your wellness for the soul.

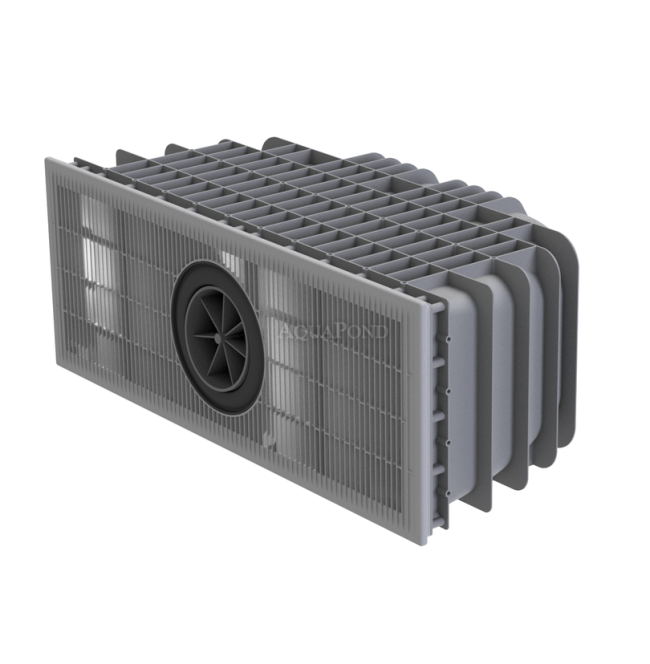

The new poly installation shaft from BINDER offers pool owners similar benefits:
- Easy installation - Thanks to its smart design and high-quality polypropylene plastic, the new poly shaft is significantly lighter than a stainless steel shaft. This makes installation even easier.
- Flow-optimized design - Both the installation shaft and the cover grille of the new PolyShaft are designed for optimal flow.
- Corrosion-resistant - Because it contains no metal, our poly shaft is significantly less sensitive to low pH values or salt overdosing.

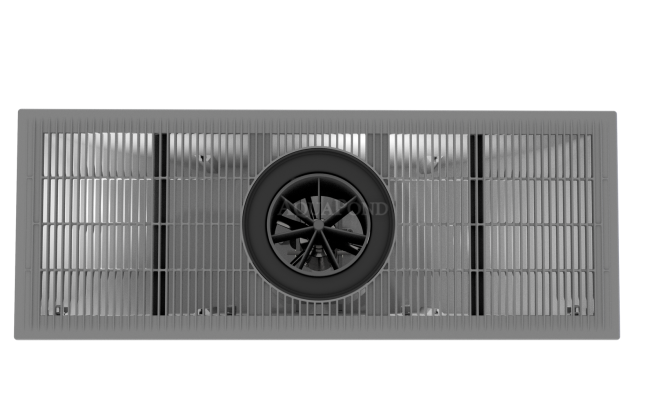

- Snap-in cover grille - The cover grille made of high-quality plastic can be easily snapped in and removed from the shaft.
The polypropylene installation box is suitable for installation in both liner and GRP pools. LED lighting is also available as an accessory and is mounted on the outlet aid. This LED light ring bathes the water in colorful light displays in freely selectable colors and makes swimming in the pool a very special experience.
Advantages:
- maintenance-free DC motor
- maintenance-free plain bearings
- motor control unit with current and temperature monitoring
- no inspection shaft or piping required
- all components made of V4A or PVC
- control via radio remote control
- space-saving, quick, and easy installation (also for retrofitting)
- optional choice of 2 different lighting systems available
- control and piezo buttons
- saltwater-resistant design
- maintenance-free operation
- Made in Germany quality
Package Contents
- Installation frame for wall installation (1065 x 400 x 515 mm)
- Turbine with 10 m connection cable
- Control unit in steel cabinet with radio remote control
- Control panel with 30 m connecting cable
Technical Specifications
- Voltage: 230 VAC
- Frequency range: 47 - 63 Hz
- Rated current: 8 A
- Starting current: 60 A
- Rated power: 1700 VA
- Motor type: 1 brushless DC motor (BLDC)
- Motor rated voltage: 24 VDC
- Motor rated current: 50 A
- Rated speed: 2400 min-1
- Turbine flow rate: 80 - 275 m3 / h
- Speed (at turbine outlet): 1.0 - 3.2 m / s
- Water temperature: +5° C to +40° C
- Immersion depth: 0.20 m - 1.00 m
- Use: Suitable for both fresh and salt water with a salt concentration of up to 4 g/l
- Warranty: 3 years
