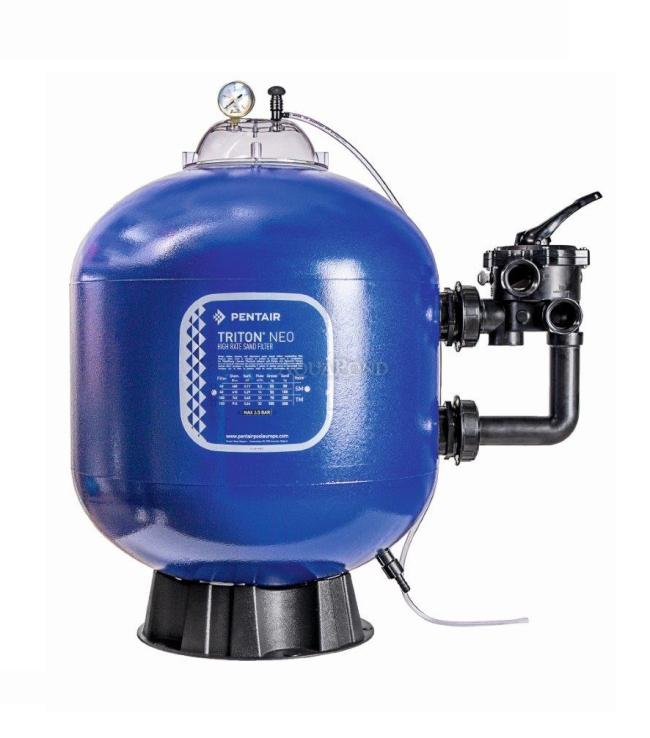

Triton Neo TR140 Clearpro filter tank on a base, diameter 914 mm, with a six-way side valve
Triton Neo TR140 Clearpro filter tank on a base, diameter 914 mm, with a six-way side valve
Description
Triton Neo Clearpro filter tanks are made of fiberglass, are seamless, reinforced with a layer of polyester, equipped with a 6-way side valve and a pressure gauge, and mounted on a base. Read more
-
Triton Neo TR140 ClearPro Filter Tank on Base, Diameter 914 mm, with 6-Way Side Valve
Triton Neo ClearPro filter tanks are made of fiberglass, are seamless, reinforced with a polyester layer, equipped with a 6-way side valve and a pressure gauge, and mounted on a base. Sand filters work on the natural principle of water filtration. Water passes through the sand bed, which traps fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the 6-way valve is used for. By turning the valve to the sand wash position, we change the direction of water flow and flush the trapped dirt out to waste. This process can be repeated throughout the entire lifespan of the sand, which is very long compared to other filtration methods.
ClearPro® is a patented technology from Pentair that achieves very high filtration levels, approximately 4 times better than standard sand filtration. This quality is achieved thanks to new porous plastic collectors. These act as additional filters, creating an extra barrier against the smallest dirt particles. The result is exceptionally clean water.
Package Contents
- Fiberglass filter tank
- 6-way side valve
- Pressure gauge
- Installation and operating manual
- Base
Package Does Not Include
- Connecting pipe between the pump and the filtration system
- Filter sand 0.6 - 1.2 mm / 25 kg (must be ordered separately)
- Pump
Technical Specifications
- Product type: Filter tank
- Tank material: fiberglass
- Filling quantity: 400 kg
- Tank diameter: 914 mm
- Max. operating pressure: 3.5 bar
- Flow rate: 32 m3 / h
- Valve type: 6-way side
- Filtration area: 0.64 m2
- ClearPro filtration technology: Yes
- Base: Yes
- Weight: 51 kg
- Warranty period for Triton filter tank: 10 years

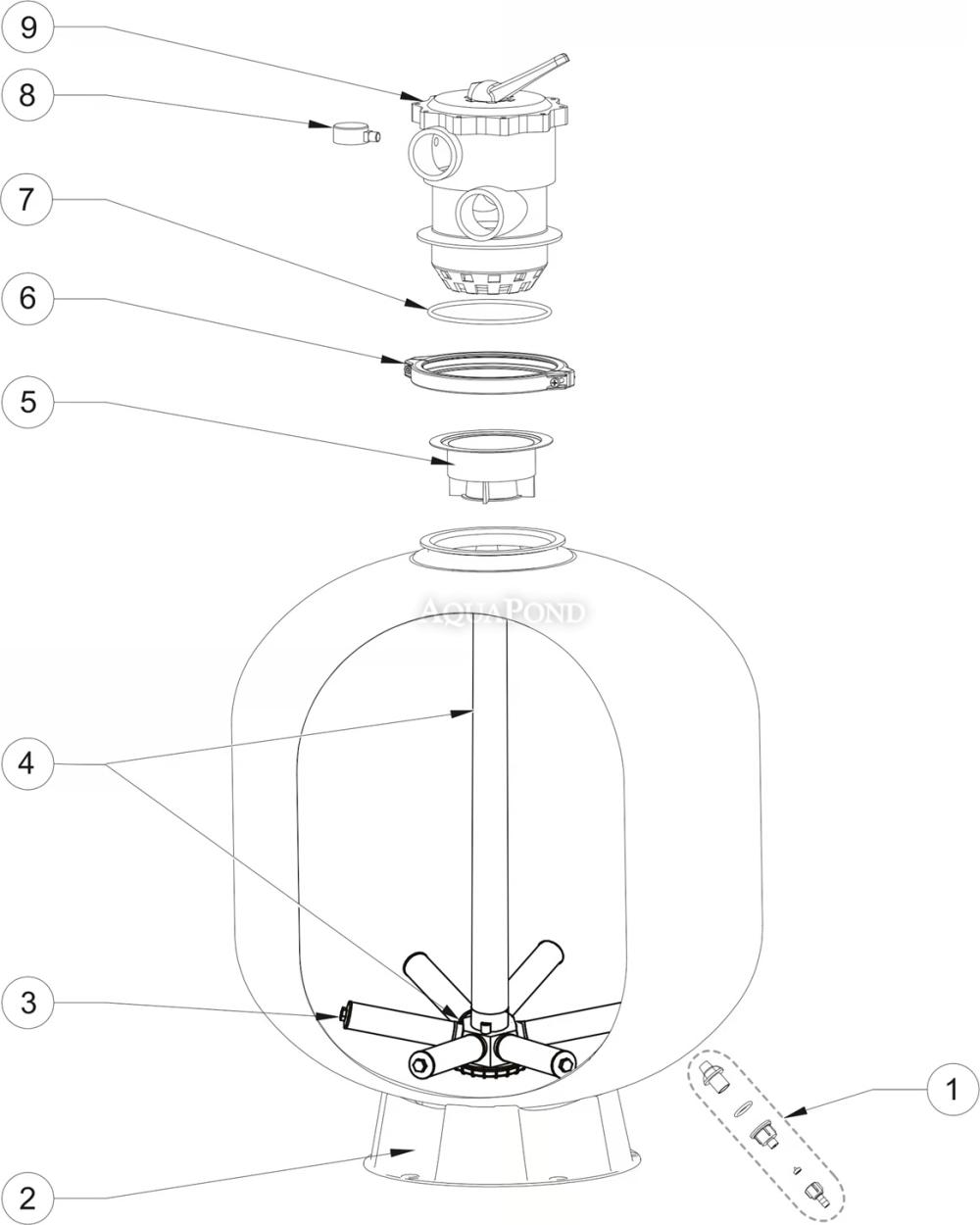

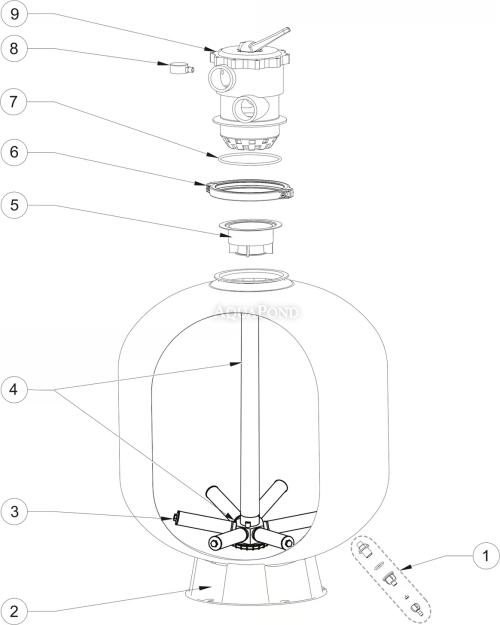

Spare Parts List
The complete list of spare parts can be found here:
Spare parts for Triton Neo TR40 ClearPro filter tank - diameter 480 mm, with 6-way Top valve on base
-
