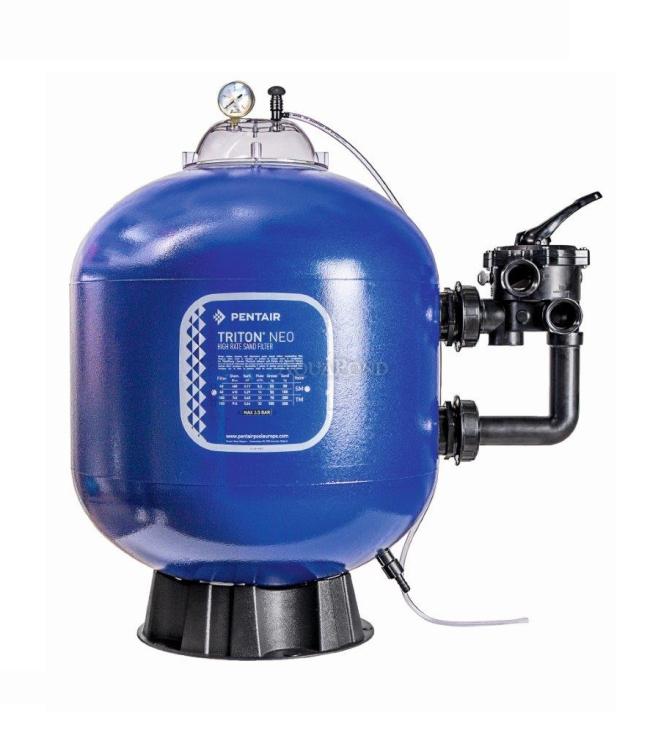

Triton Neo TR100 Clearpro filter tank on a base, diameter 762 mm, with a six-way side valve

Triton Neo TR100 Clearpro filter tank on a base, diameter 762 mm, with a six-way side valve

Triton Neo TR100 Clearpro filter tank on a base, diameter 762 mm, with a six-way side valve

Description

Triton Neo Clearpro filter tanks are made of fiberglass, are seamless, reinforced with a layer of polyester, equipped with a 6-way side valve and a pressure gauge, and mounted on a base. Read more
Product code: 511356762N

  • Triton Neo TR100 ClearPro Filter Tank on Base, 762 mm Diameter, with Six-Way Side Valve

    TRITON NEO-C-PRO TR filters are made of fiberglass, are seamless, reinforced with a polyester layer, and equipped with a 6-way side valve and pressure gauge, mounted on a base. Sand filters work on the natural principle of water filtration. Water passes through the sand bed, which captures fine dirt particles. Over time, the sand becomes clogged and needs to be backwashed, which is what the six-way valve is used for. By turning the valve to the sand-washing position, we change the direction of water flow and flush the trapped dirt into the waste line. This process can be repeated throughout the entire service life of the sand, which is very long compared to other filtration methods.

    ClearPro® is a patented Pentair technology that achieves a very high level of filtration, approximately 4x better than standard sand filtration. This quality is achieved thanks to new porous plastic collectors. These act as additional filters, creating an extra barrier against the smallest dirt particles. The result is exceptionally clean water.

    Package Contents

    • Fiberglass filter tank
    • 6-way side valve
    • Pressure gauge
    • Installation and operating manual
    • Base

    Package Does Not Include

    • Connecting piping between the pump and the filtration system
    • Filter sand 0.6 - 1.2 mm / 25 kg (must be ordered separately)
    • Pump

    Technical Parameters

    • Product type: Filter tank
    • Tank material: fiberglass
    • Filling quantity: 275 kg
    • Tank diameter: 762 mm
    • Max. operating pressure: 3.5 bar
    • Flow rate: 22 m3 / h
    • Valve type: 6-way side
    • Filtration area: 0.45 m2
    • ClearPro filtration technology: Yes
    • Base: Yes
    • Weight: 30 kg
    • Warranty period for Triton filter tank: 10 years

    Spare Parts List



    The complete list of spare parts can be found here:



    Spare Parts - Triton Neo TR100 ClearPro Filter Tank on Base, 762 mm Diameter, with Six-Way Side Valve
