Skimmer 17.5 l with a wide throat, with brass threads, for liner pools

In stock

Skimmer 17.5 l with a wide throat, with brass threads, for liner pools

Description

Skimmer with a wide throat and square lid. Read more

Product code: 15411311

Description
Related products

Skimmer 17.5 l with Wide Mouth, with Brass Threads, for Liner Pools

This skimmer for liner pools is designed for concrete pools with a liner, pools with steel walls, and plastic pools made of fiberglass or polypropylene. The skimmer body is made of white, chemically resistant ABS plastic with UV resistance. A double gasket with counter flange and decorative cover ensures a watertight seal to the liner. We recommend installing 1 skimmer per 25 m² of the pool water surface.

The skimmer is equipped with an internal floating unit to regulate water flow so that the suction pump does not draw in air. At the bottom of the skimmer there is a removable basket that traps large debris and small objects, preventing them from entering the pool filtration system.

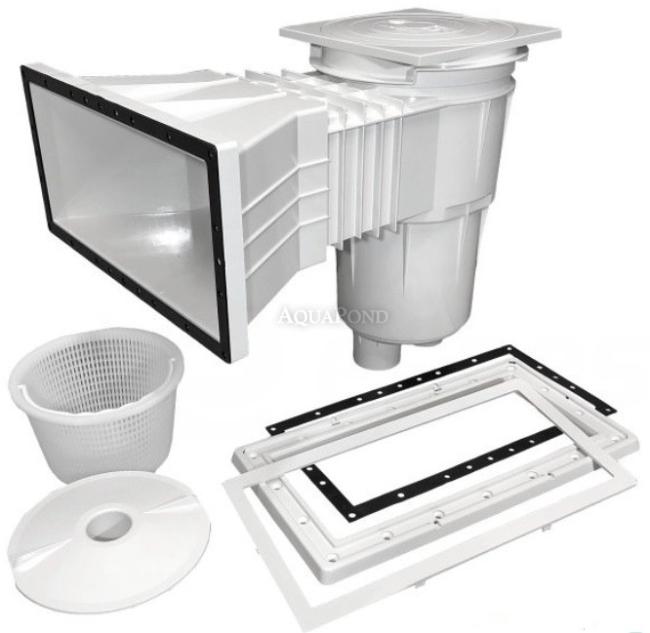

Package Contents

Skimmer body
Top telescopic lid
Floating weir door for water level regulation
Coarse debris basket
Skimvac for vacuum connection
Gasket set for liner pools
Counter flange with screw set
Decorative flange cover
Plug with gasket
Flow regulator

Optional stainless steel set available for purchase - frame and mounting screws for liner and prefabricated pools.

Technical Parameters

Color: White
Material: ABS plastic

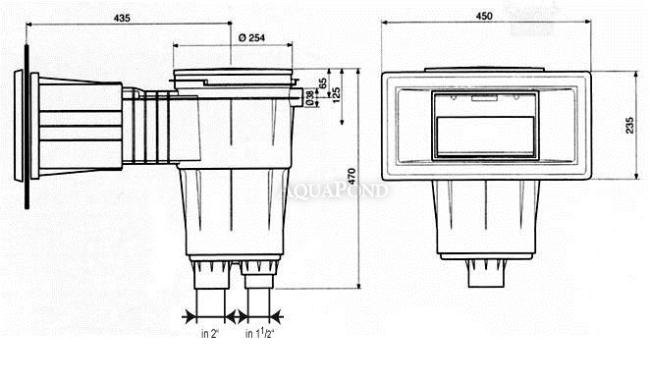

Dimensions (W x H x D): 452 x 469 x 602 mm
Opening: 372 x 155 mm
Connection: 1 ½" internal thread, can also be connected with a 2" internal-thread outlet
Recommended flow rate: 5 - 9 m³ / h
Overflow connection: Ø 32 mm
