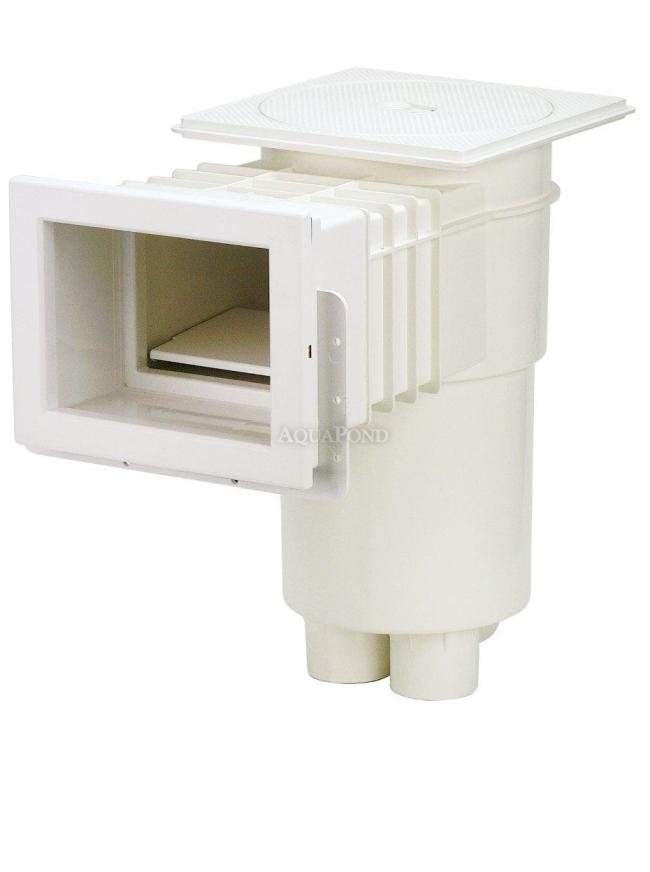

Skimmer VA, suction 215 mm x 160 mm, with brass threads, for liner pools

Skimmer VA, suction 215 mm x 160 mm, with brass threads, for liner pools

Skimmer VA, suction 215 mm x 160 mm, with brass threads, for liner pools

Description

The skimmer (surface debris collector) is used to drain contaminated pool water into the filtration system. The skimmer is a plastic or stainless steel container built into the pool wall, or freely ... Read more
Product code: 1540410

  • Skimmer VA, suction opening 215 mm x 160 mm, with brass threads, for liner pools

    The skimmer (surface debris collector) is used to draw contaminated pool water into the filtration system. A skimmer is a plastic or stainless-steel container built into the pool wall, or hung freely on the wall (for above-ground pools). The type of skimmer is determined by the pool construction. The height can be adjusted by vertical extension. VA skimmers for concrete or liner pools are made of white injection-molded ABS, and the external parts are UV-stabilized. The recommended flow rate is 5 - 9 m3 / h. Round lid mounted on a square frame. To connect the skimmer to 63 mm piping and hoses, there is an internal 2" thread. For connecting the pool vacuum hose, the skimmer is equipped with a skimvac – a plastic disc with a spigot onto which a 32 or 38 mm hose can be fitted. The skimmer volume is 17.5 liters - compared to the smaller 15-liter versions, it is overall larger, has a bigger basket, thicker plastic, and more connection options.

    We recommend installing 1 skimmer for every 25 m2 of water surface.

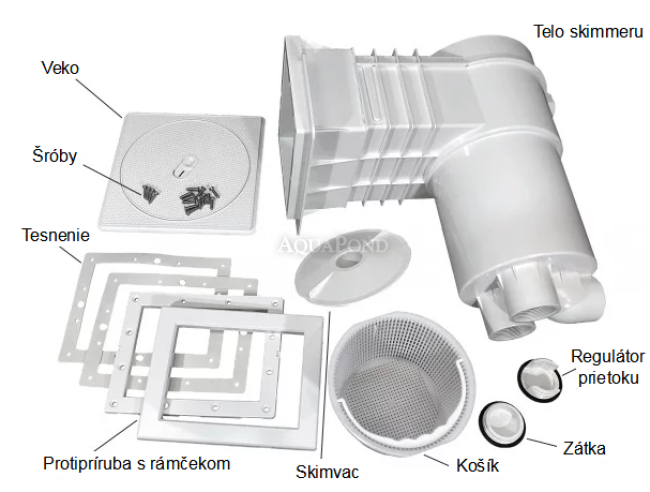

     Package contents

    • Skimmer body
    • Top telescopic lid
    • Screws
    • Complete set of gaskets for liner pools
    • Counter flange with frame
    • Skimvac for vacuum connection
    • Coarse debris basket
    • Plug
    • Flow regulator


    Technical specifications

    • Color: white
    • Material - visible part: plastic
    • Body material: plastic
    • Connection (int.): 63 mm, 2 "in
    • Vacuum plate included: yes
    • Recommended water flow: 5 - 9 m3 / h
    • Overflow connection: 32 mm
    • Vertical extension possible: yes
    • For liner pools: yes

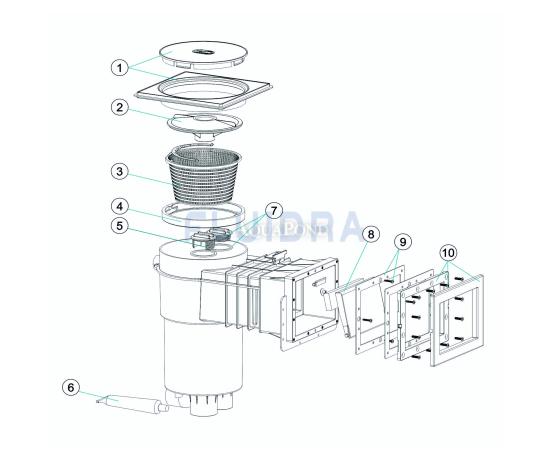

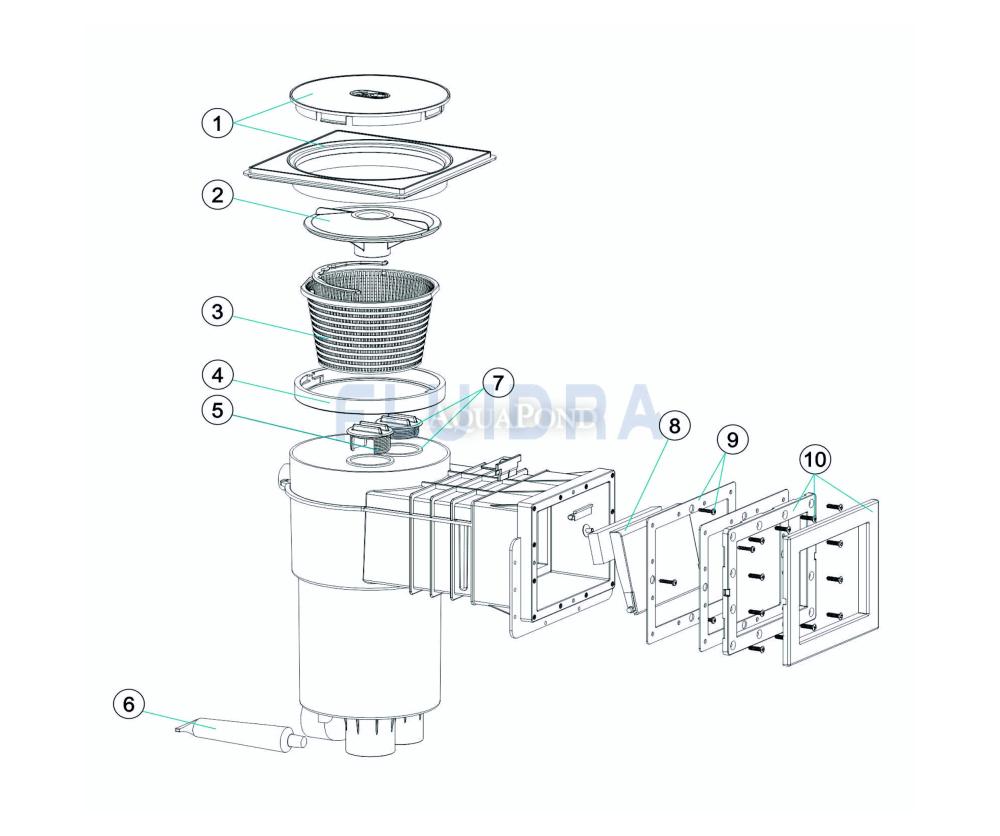

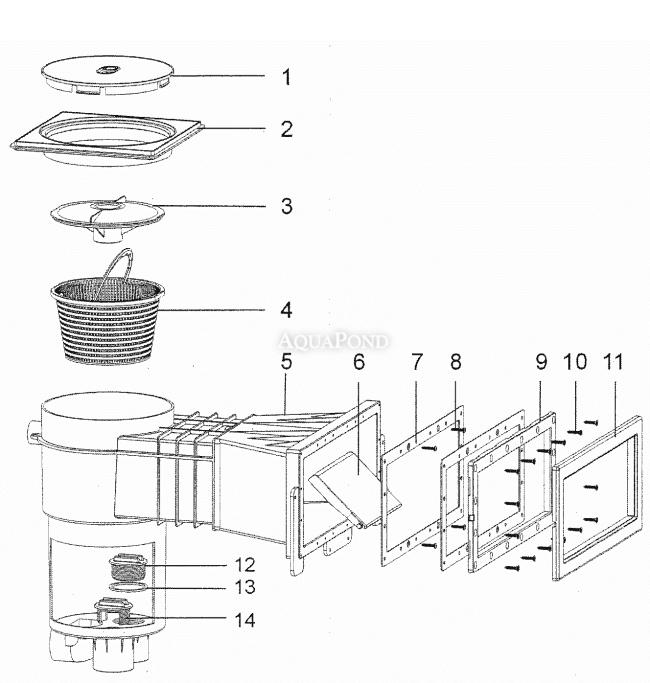

    List of spare parts

    The complete list of spare parts can be found here:



    Spare parts for Skimmer VA, suction opening 215 mm x 160 mm, for liner pools, with brass threads
