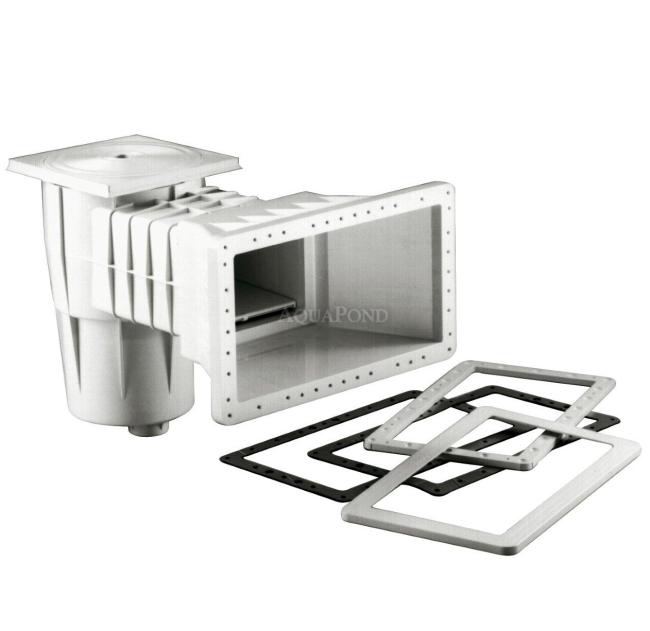

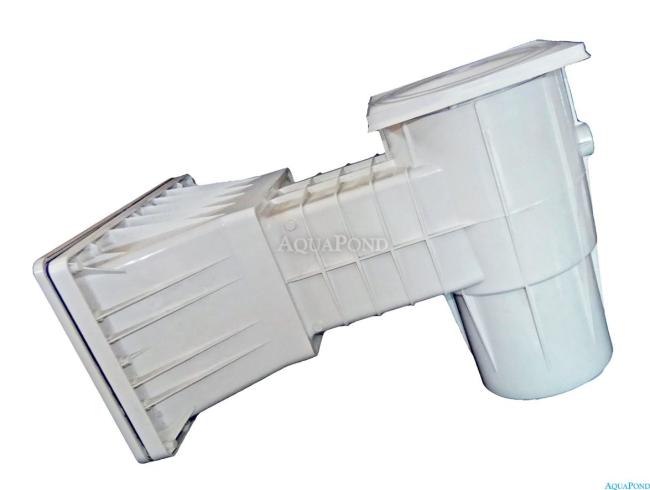

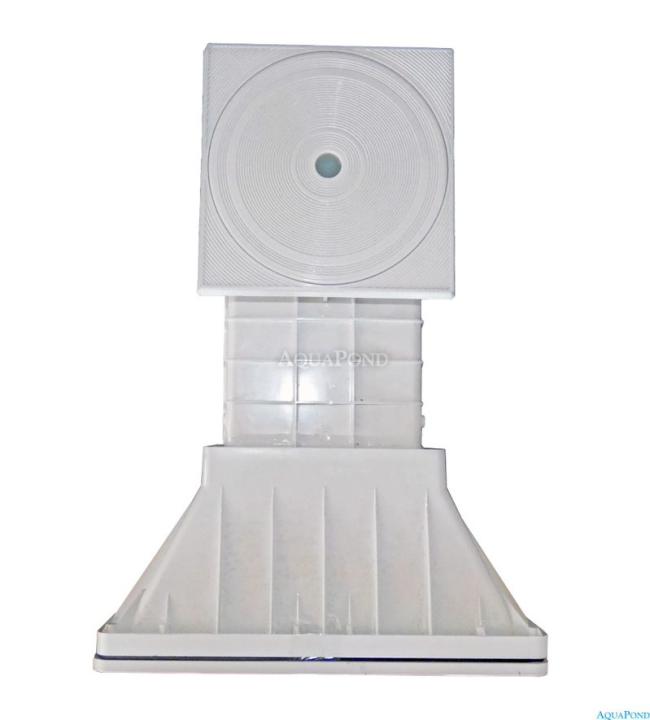

Hayward Kripsol Skimmer, suction 400 mm x 230 mm, with vacuum plate, for liner pools

The skimmer (surface debris collector) is used to draw contaminated pool water into the filtration system. It is suitable for concrete pools with a liner. Made of white injection-molded ABS plastic. This material is resistant to changes caused by chemical and atmospheric influences. The skimmer type is determined by the pool construction; it includes a gasket with a flange, allowing you to seal the opening in the pool shell or liner. The Kripsol skimmer has a round lid seated on a square frame. It can be connected both to standard 50 mm hoses and pipes, as well as to corrugated 32 and 38 mm hoses.

• vacuum plate included
• height can be adjusted by vertical extension
• ABS material, resistant to chemical and atmospheric influences
• drain connection - 63 mm glued or 1 1/2" threaded
• overflow connection - 50 mm
• recommended flow rate 5 m³ / h

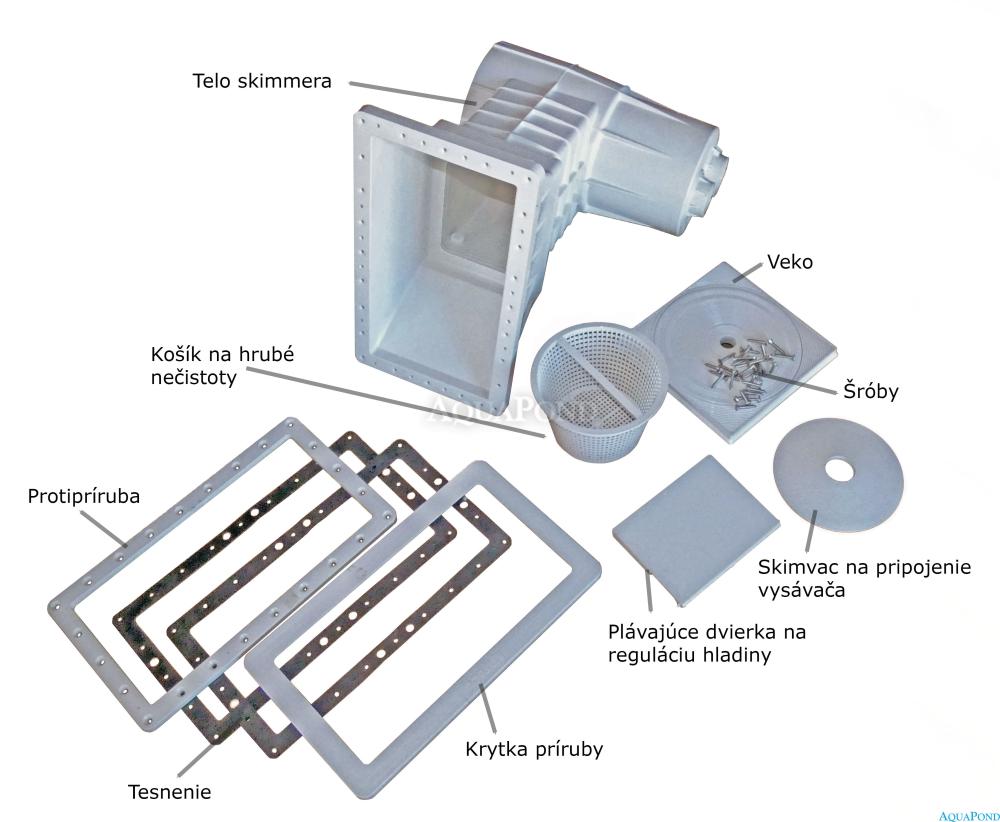

Package Contents Skimmer body Upper telescopic lid Floating weir door for water level regulation Basket for coarse debris Skimvac for vacuum cleaner connection Complete gasket set for liner pools Counter flange with screw set Flange cover

Suitable for

• Concrete pools without liner: no
• Concrete pools with liner: yes
• Lost formwork pools without liner: no
• Lost formwork pools with liner: yes
• Plastic pools: yes
• Polypropylene pools: yes
• Fiberglass pools: yes
• Other prefabricated pool shells: yes

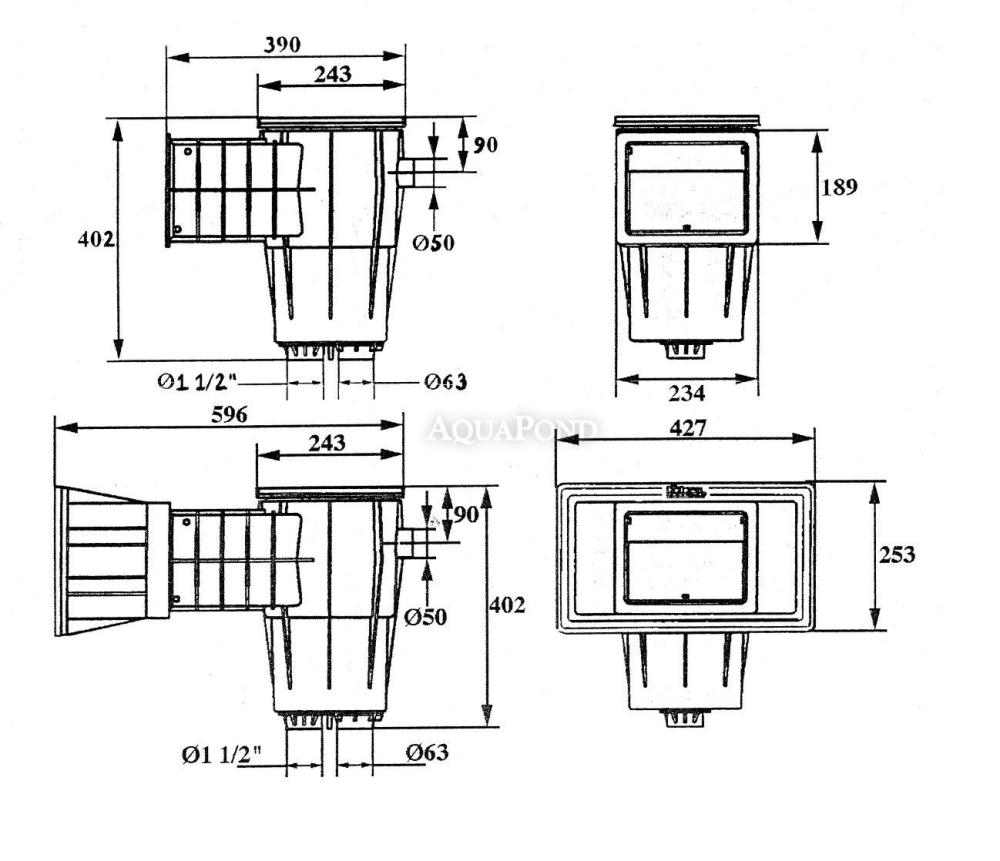

Technical Specifications Color: White Material - visible part: Plastic Body material: ABS Connection (int.): 1 1/2 "in Weight: 5.035 kg Vacuum plate included: Yes Recommended water flow: 4-12 m3 / h Vertical extension possible: Yes Overflow connection: 32 mm For concrete pools: Yes For liner pools: Yes

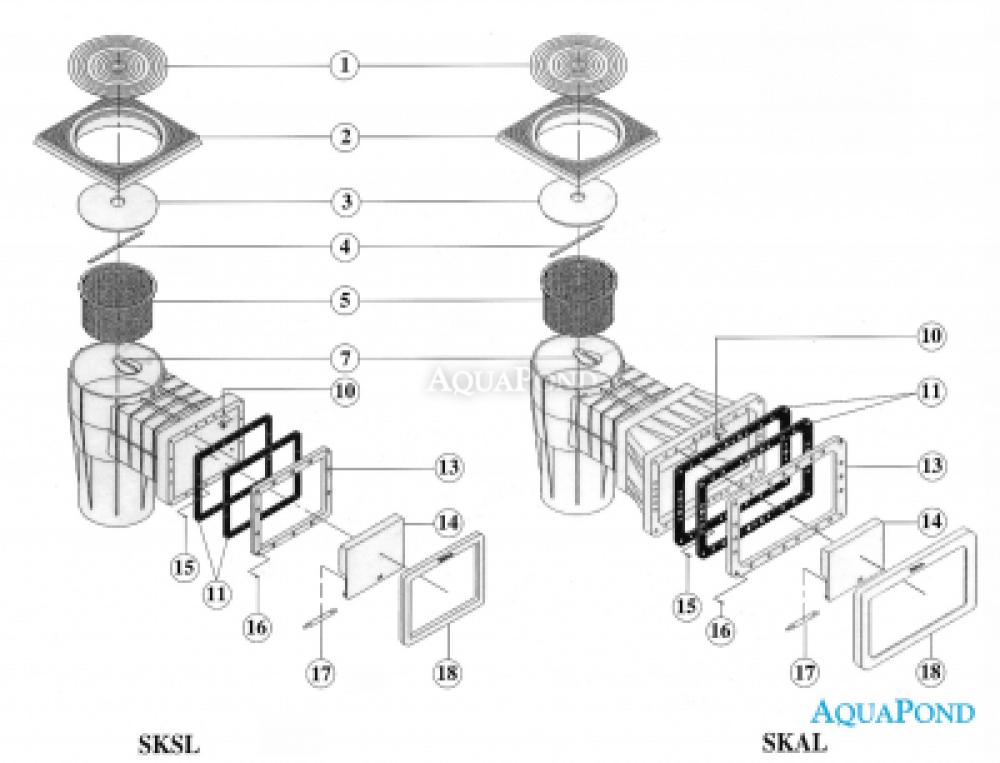

Spare Parts List

The complete list of spare parts can be found here:   Spare parts for Kripsol skimmer, for liner, suction 400 mm x 230 mm, with vacuum plate
